Summary of Contents for SHOWTEC Expression 8000

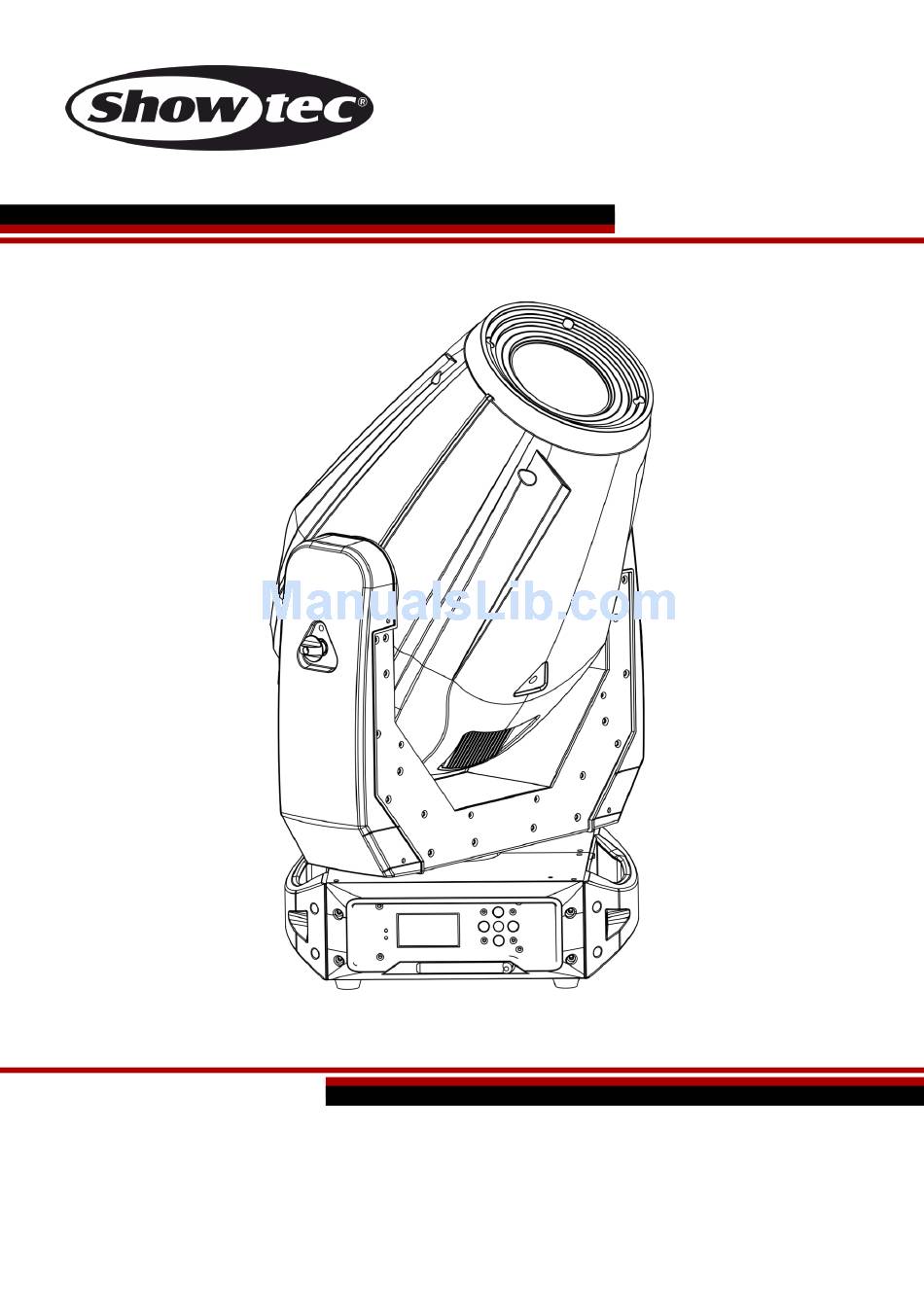

- Page 1 MANUAL ENGLISH Expression 8000 Spot Ordercode: 41391 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Expression 8000 Spot Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Frontside..................................8 Backside .................................. - Page 3 Expression 8000 Spot Maintenance ..................................31 Replacing the Fuse ..............................31 Gobo Size ..................................32 Replacing a gobo from the rotating gobo wheel ....................32 Glass Gobo Orientation .............................33 Rotating/Static Gobo wheels and Color wheels .......................34 Troubleshooting ................................34 No Light ..................................34 No Response to DMX..............................35 Product Specifications ..............................36...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Expression 8000 Spot ● PowerCON power cable (1,5 m) ●... - Page 5 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Expression 8000 Spot • The user is responsible for correct positioning and operating of the Expression. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 7: Connection With The Mains
Expression 8000 Spot The Expression can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 8: Return Procedure
Expression 8000 Spot Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device
Expression 8000 Spot Description of the device Features The Expression 8000 Spot is a moving head with high output and great effects. Input voltage: 100-240V, 60/50Hz Power consumption: 280W Light source: 230W LED module Lumen: 8000 lumen ... -
Page 10: Backside
10) PowerCON power connector 100-240V IN Installation Remove all packing materials from the Expression 8000 Spot. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Control Modes
Expression 8000 Spot Control Modes There are 4 modes: • Auto • Manual • Master/Slave • DMX-512 (17CH, 23CH) One Expression (Auto and Manual) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 12: Multiple Expressions (Dmx Control)
Expression 8000 Spot Multiple Expressions (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin/5-pin XLR cable to connect the Expressions and other devices. -
Page 13: Fixture Linking
Expression 8000 Spot Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 14: Control Panel
Expression 8000 Spot The Expression 8000 Spot can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display LEFT button C) UP button D) OK button RIGHT button DOWN button Fig. -
Page 15: Main Menu Options
Expression 8000 Spot Main Menu Options 01) On start-up, the device will reset its settings. The following screen will pop up: 02) The display will show a series of screens containing information on the device’s current operating mode, current software version and current temperature. -
Page 16: Personality
Expression 8000 Spot 2. Personality With this menu you can set the device’s personality. 01) In the main menu, press the UP/DOWN buttons to choose PERSON and press the OK button to enter the menu. The display will show: 02) Press the UP/DOWN buttons to choose one of the 2 personalities: ... -
Page 17: Options
Expression 8000 Spot 4. Options With this menu you can adjust the device’s settings. 01) In the main menu, press the UP/DOWN buttons to choose OPTION and press the OK button to enter the menu. The display will show: 02) Press the UP/DOWN buttons to toggle between the following options: ... -
Page 18: Pan/Tilt Range
Expression 8000 Spot 4.1.4. Pan/Tilt Range 01) If you have chosen P/T RANGE, press the OK button to proceed to the submenu. 02) Press the RIGHT button to toggle between the following options: P. START (Pan start point) ... -
Page 19: Fan Speed
Expression 8000 Spot 4.7. Fan speed 01) If you have chosen FAN SPEED, press the UP/DOWN buttons to choose one of the 4 options: SLOW (slow fan) NORM (normal fan) FAST (fast fan) AUTO (speed dependent on the device’s temperature) 02) Press the OK button to confirm your choice. -
Page 20: Manual Mode
Expression 8000 Spot 5. Manual mode With this menu, you can set the manual settings. 01) In the main menu, press the UP/DOWN buttons to choose MANUAL and press the OK button to enter the menu. The display will show: 02) Press the UP/DOWN buttons to choose one of the 5 options: ... -
Page 21: Edit
Expression 8000 Spot 5.2. Edit 01) If you have chosen EDIT, press the OK button to enter the submenu. 02) Press the UP/DOWN buttons to choose which step you want to edit. There are 50 steps to choose from. 03) Press the OK button to proceed to edition mode. -
Page 22: Performance Test
Expression 8000 Spot 5.5. Performance test 01) If you have chosen PERFORM TEST, press the OK button to enter the submenu. 02) The device will ask you about what test you want to perform. Press the OK button to proceed. -
Page 23: Dmx Channels
Expression 8000 Spot DMX Channels 23 channels (PERSON1) Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 24 Expression 8000 Spot Channel 7 – Color Wheel 2 CH19 must be open 0-10 White 11-19 White/CTO 21-29 CTO/CTB 31-39 CTB/UV 41-49 UV/Amber Amber 51-59 Amber/Dark Green Dark Green 61-69 Dark Green/Orange Orange 71-79 Orange/Kelly Green Kelly Green 81-89 Kelly Green/White...
- Page 25 Expression 8000 Spot Channel 9 – Rotating Gobo wheel CH19 must be open 0-10 Open 11-20 Gobo 1 21-30 Gobo 2 31-40 Gobo 3 41-50 Gobo 4 51-60 Gobo 5 61-70 Gobo 6 71-80 Gobo 7 81-82 Open 83-92 Rotating Gobo 1 shake effect, from slow to fast...
- Page 26 Expression 8000 Spot Channel 14 – Iris fine CH19 must be open 0-255 Fine iris adjustment Channel 15 – Zoom CH19 must be open 0-255 Zoom adjustment, from big to small Channel 16 – Zoom fine CH19 must be open...
-
Page 27: Channels (Person2)
Expression 8000 Spot 156-161 Macro 26 162-167 Macro 27 168-173 Macro 28 174-179 Macro 29 180-185 Macro 30 186-191 Macro 31 192-197 Macro 32 198-203 Macro 33 204-209 Macro 34 210-215 Macro 35 216-221 Macro 36 222-227 Macro 37 228-233... -
Page 28: Expression 8000 Spot
Expression 8000 Spot Channel 4 – Color Wheel 1 CH14 must be open 0-10 White 11-19 White/Cyan Cyan 21-29 Cyan/Magenta Magenta 31-39 Magenta/Pink Pink 41-49 Pink/Blue Blue 51-59 Blue/Yellow Yellow 61-69 Yellow/Green Green 71-79 Green/Red 81-89 Red/White 90-95 White 96-103... - Page 29 Expression 8000 Spot Channel 6 – Static Gobo wheel CH14 must be open 0-10 Open 11-20 Gobo 1 21-30 Gobo 2 31-40 Gobo 3 41-50 Gobo 4 51-60 Gobo 5 61-70 Gobo 6 71-80 Gobo 7 81-90 Gobo 8 91-100...
- Page 30 Expression 8000 Spot Channel 8 – Gobo rotation CH14 and CH7 must be open 0-120 Manual rotation adjustment 121-125 Stop 126-165 Rotating gobo shake effect speed, from slow to fast 166-170 Stop 171-210 Clockwise gobo rotation, from fast to slow...
- Page 31 Expression 8000 Spot Channel 16 – Effects CH14 must be open Not functional 6-11 Macro 1 12-17 Macro 2 18-23 Macro 3 24-29 Macro 4 30-35 Macro 5 36-41 Macro 6 42-47 Macro 7 48-53 Macro 8 54-59 Macro 9...
-
Page 32: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Expression 8000 Spot requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 33: Gobo Size
Expression 8000 Spot Gobo Size 01) Disconnect mains power supply and set the switch to OFF. 02) Make sure that the gobo which you want to insert has the same size. For the right size, see below. Fig. 06 Replacing a gobo from the rotating gobo wheel Fig. -
Page 34: Glass Gobo Orientation
Expression 8000 Spot 07) Gently lift up the gobo holder 10º and then gently pull out the gobo from its position. Fig. 08 08) Very carefully take the gobo out of the gobo holder with a pair of pliers. 09) Place the new gobo in the gobo holder. Carefully put the pinchcock back, gently press the pinchcock a little bit together. -
Page 35: Rotating/Static Gobo Wheels And Color Wheels
Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Expression to your Showtec dealer. 03) The fuse. Replace the fuse. See page 31 for replacing the fuse. -
Page 36: No Response To Dmx
Expression 8000 Spot No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 37: Product Specifications
Expression 8000 Spot Product Specifications Model: Showtec Expression 8000 Spot Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 280W (full output) DMX linking: 30pcs Fuse: T6,3AL/250V Dimensions: 450 x 390 x 640 mm (LxWxH) Weight: 26 kg Operating and Programming: Signal pin OUT:... -
Page 38: Dimensions
Expression 8000 Spot Dimensions Ordercode: 41391... -
Page 39: Notes
Expression 8000 Spot Notes Ordercode: 41391... - Page 40 ©2015 Showtec...
