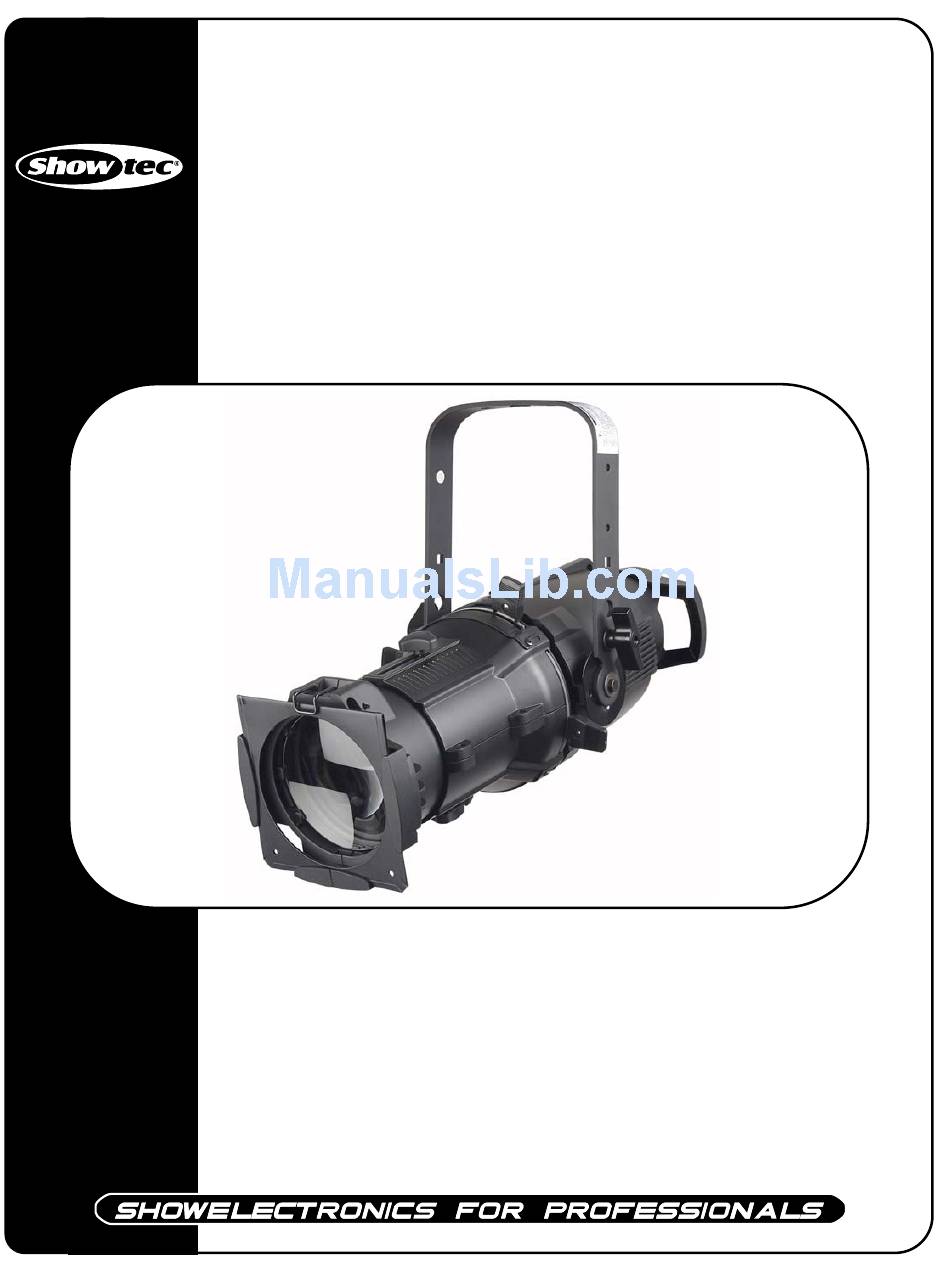

- Page 1 Multi Profile Spot ORDERCODE 30645...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Multi Profile Spot brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Multi Profile Spot Product Guide ™ Warning..…...................…………………………………………… Safety-instructions………………………………………………………………………………………….…... Operating Determinations……………………………………………………………………………………… Rigging…………………………………………………………………………………………………………… Description..…................……….………………………………….. Features ………………………………...….……………………….……….………….………………….…... Installation................…...…………………………………….……. Installing the Lamp ............………………………………………..………….. Set Up and Operation..............……..……………………………….…. Lens Locations..............………………….…………………....Centering and adjusting the lamp.............………………….…………………..Focusing the beam............................. Color frame retaining clip..........................Color Notes.............................. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the Multi Profile Spot is lowered from the ceiling or high joists, professional trussing systems have •... -
Page 7: Description
Description of the device Features The Showtec Multi Profile Spot from Showtec is also suitable for Goboprojection. • 575W Lampe • 15000 Lumen bei 3265 ºK Overview Fig. 1 Fig. 2... -
Page 8: Installation
Installation Installing the Lamp The Showtec Multi Profile Spot uses a HPL-575 Lamp (ordercode 80812O / 80812G / 80815G), as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Lens Locations
Lens Locations The different lenses used in the Moon Light are not interchangeable. When installing a new lens, refer to the illustration below for proper placement. Also, remember to have the lens' color designator dot facing the color frame. Fig. 5 Centering and adjusting the lamp The marked "A,B,C"... -
Page 10: Focusing The Beam
Focusing the beam 1. Loosen the beam focus knob located under the barrel (Fig. 7). 2. Slide the lens tube forward or backward to achieve the desired beam edge. 3. Once the fixture is focused.tighten the beam focus knob. Fig. 7 Color frame retaining clip The color frame holder is equipped with a spring-loaded retaining clip thap prevents color frames and accessories from falling out (Fig. -
Page 11: Shaping The Beam
Shaping the beam You may shape the beam with the shutters, a pattern, an optional drop-in iris, or by rotating the barrel. Pattern Projection The pattern holder slot is on the top side of the barrel and in front of the shutters. It accommodates A-size, B-size and glass pattern holders (Fig.10). -
Page 12: Rotating The Barrel Assembly
Rotating the barrel assembly 1. Loosen the barrel rotation knob directly behind the shutters on the underside of the reflector housing (Fig. 12). Do not remove the barrel rotation knob. 2. Rotate the barrel to the desired position (up to 25º in either direction from the centered position). 3. -
Page 13: Adjusting The Yoke Position
Adjusting the yoke position The device provides multi-positioning capabilities within its yoke for overall fixture height and angle. Setting the fixture height within the yoke The device has a two-position yoke for modifying the overall height in which the fixture is mounted (Fig 14). -
Page 14: Cleaning 19°, 26°, 36° And 50° Glass Lenses
Cleaning 19°, 26°, 36°, and 50° glass lenses 1. Remove the beam focus knob at the bottom of the barrel. Remove the lens tube from the barrel. Note: It is not necessary to remove the lens for cleaning. If you do remove the 19°, 26°, or 50"... -
Page 15: Maintenance
4. If you are unable to determine the cause of the problem, do not open the device, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. -
Page 16: Product Specifications
Product Specification Model: Showtec Multi Profile Spot Voltage : AC 230V-50Hz (CE) Power: max. 750W Dimensions :570 x 270 x 270 mm (LxWxH) Weight : 2,4 kg Lamp Allowed lamp models*: Osram HPL-575 (300hr) 575W ordercode 80812O) GE HPL-575 (300hr) 575W ordercode 80812G GE HPL-575 (1500hr) 575W ordercode 80815G Extra’s... - Page 17 2005 Showtec.
