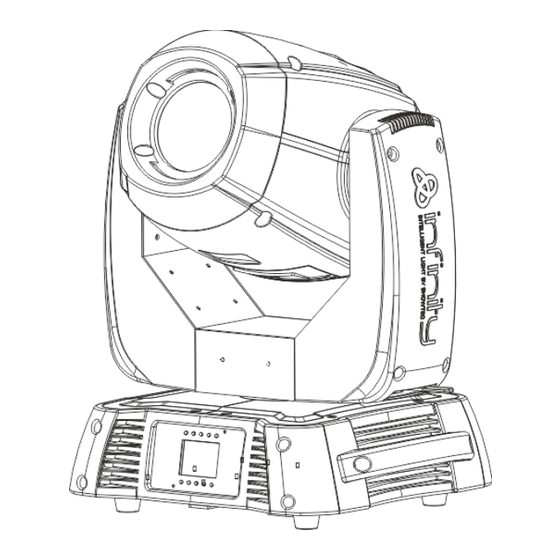

SHOWTEC Infinity iS-200 User Manual

SHOWTEC Infinity iS-200 User Manual

Led spot
Hide thumbs
Table of Contents

Advertisement

Quick Links

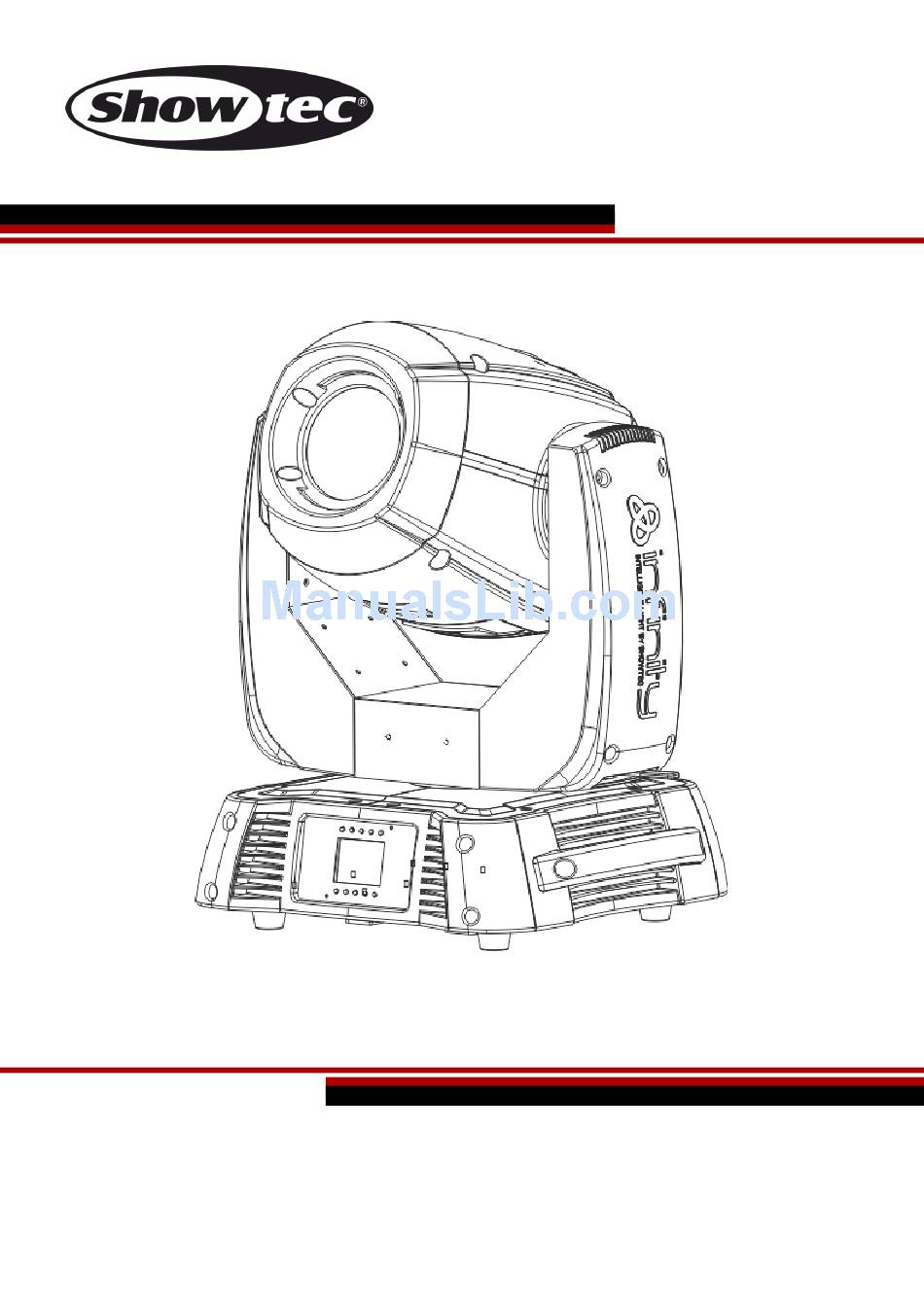

MANUAL
ENGLISH
Infinity iS-200
Ordercode: 41501
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity iS-200 and is the answer not in the manual?

Questions and answers

Related Manuals for SHOWTEC Infinity iS-200

Summary of Contents for SHOWTEC Infinity iS-200

  • Page 1 MANUAL ENGLISH Infinity iS-200 Ordercode: 41501 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Infinity iS-200 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................8 Backside ..................................8 Installation ................................... 9 Set Up and Operation ...............................

  • Page 3: Warning

    Your shipment includes: ● Showtec Infinity iS-200 LED Spot with Powercon powercable 0,9m ● 2 brackets for truss mounting (spare part number SPCI150) ●...
  • Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 5: Operating Determinations

    Infinity iS-200 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be more than 1 meter.
  • Page 6 Infinity iS-200 Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious damage to people and property ! Ordercode: 41501...

  • Page 7: Return Procedure

    Infinity iS-200 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE...

  • Page 8: Description Of The Device

    Infinity iS-200 Description of the device Features The Showtec Infinity iS-200 LED Spot is a moving-head with high output and great effects. ● On-Board: Battery powered full color display including gravity sensor ● It has a rotating 3 facet prism as well a frost filter, which makes it possible to use the fixture also as a true wash light ●...

  • Page 9: Overview

    Infinity iS-200 Overview Fig. 01 01) Lens 02) Menu Buttons + LCD Display Backside Fig. 02 DMX signal connector (IN) 5-pin DMX signal connector (OUT) 5-pin 05) DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin Neutrik Powercon IN...

  • Page 10: Installation

    Infinity iS-200 Installation Remove all packing materials from the Infinity iS-200 LED Spot. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.

  • Page 11: Multiple Infinity's (Dmx Control)

    Infinity iS-200 Multiple Infinity’s (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket.

  • Page 12: Fixture Linking

    DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.). The Infinity iS-200 LED Spot can be operated with a controller in control mode or without the controller in stand-alone mode.

  • Page 13: Control Panel

    Infinity iS-200 Control Panel Home button Edit Menu button Settings Mode Button Address Setting Button Infinity Logo Button Up Button Down Button OK/ENTER Left Button Right Button LCD Display Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller.

  • Page 14: Menu Overview

    Infinity iS-200 Menu Overview Ordercode: 41501...

  • Page 15: Main Menu Options

    Infinity iS-200 Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address.

  • Page 16: Edit Mode

    Infinity iS-200 2. Edit Mode With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 3 different modes. Use the Up / Down buttons to select the required mode:...

  • Page 17: Built-In Programs

    Infinity iS-200 4. Built-in Programs With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 10 different modes. Use the Up / Down buttons to select the required mode:...

  • Page 18: Test Menu

    Infinity iS-200 5. Test Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different modes. Use the Up / Down buttons to select the required mode:...

  • Page 19: Information Menu

    Infinity iS-200 6. Information Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. 03) You can only view 4 current settings, you cannot change anything Ordercode: 41501...

  • Page 20: Dmx Channels

    Infinity iS-200 DMX Channels 21 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 21 Infinity iS-200 Channel 9 – Colourwheel 1 Linear color change following the movement of the slider. Between 128 - 255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 8-15 Light Yellow 16-23 Light Blue 24-31 Light Green...
  • Page 22 Infinity iS-200 Channel 11 – Rotating Gobo-wheel + Gobo Shake Open / White 8-15 Gobo 1 (Glass) 16-23 Gobo 2 (Metal) 24-31 Gobo 3 (Metal) 32-39 Gobo 4 (Metal) 40-47 Gobo 5 (Metal) 48-55 Gobo 6 (Metal) 56-63 Gobo 7 (Metal)
  • Page 23 Infinity iS-200 Channel 14 – Prism Open 5-255 3-facet Prism Effect, Channel 15 – Prism rotation 0-127 Prism-indexing 128-189 Clockwise rotation (CW) from slow to fast 190-193 Stop 194-255 Counter-clockwise rotation (CCW) from slow to fast Channel 16 – Iris...
  • Page 24 Infinity iS-200 Channel 20 – Built-in Programs No Function 8-15 Built-in Program 1 16-23 Built-in Program 2 24-31 Built-in Program 3 32-39 Built-in Program 4 40-47 Built-in Program 5 48-55 Built-in Program 6 56-63 Built-in Program 7 64-71 Built-in Program 8...

  • Page 25: Channels (Basic)

    Infinity iS-200 18 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 26 Infinity iS-200 Channel 9 – Colourwheel 2 Linear color change following the movement of the slider. Between 128 - 255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 8-15 Cool Color 1 16-23 Cool Color 2r 24-31...
  • Page 27 Infinity iS-200 Channel 11 – Gobo rotation 0-63 Gobo-indexing 64-147 Clockwise rotation (CW) from slow to fast 148-231 Counter-clockwise rotation (CCW) from slow to fast 232-255 Gobo bouncing Channel 12 – Static Gobo-wheel + Gobo Shake Open / White 7-13...

  • Page 28: Channel Settings

    Infinity iS-200 Channel 18 – Channel Functions No Function 8-14 Blackout during Pan/Tilt movement 15-23 Blackout during Colorwheel movement 24-31 Blackout during Gobowheel movement 32-39 Blackout during Pan/Tilt/Colorwheel movement 40-47 Blackout during Pan/Tilt/Gobowheel movement 48-55 Blackout during Pan/Tilt/Gobowheel /Colorwheel movement...

  • Page 29: Maintenance

    Infinity iS-200 Maintenance The Showtec Infinity iS-200 LED Spot requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth.
  • Page 30 Infinity iS-200 Fig. 08 03) Loosen the service lid of the housing, by sliding it to the bottom. 04) Gently tilt the head so the small metal housing will slide out more easy. 05) Turn the gobo wheel, with the gobo you want to remove, to the upside.
  • Page 31 Infinity iS-200 Colorwheel 1 Colorwheel 2 Fig. 10 Fig. 11 Rotating Gobo-wheel Static Gobo-wheel Fig. 12 Fig. 13 Ordercode: 41501...

  • Page 32: Battery Replacement

    Infinity iS-200 Battery Replacement (must be carried out by a qualified technician!) 01) Unplug the unit from the electric power source. 02) Remove the 6 screws on the front side of the Infinity. 03) Gently pull the front cover from the device.

  • Page 33: Troubleshooting

    01) First try to reset the device to its original factory default settings (3-Settings Menu see page 15). 02) Power supply. Check that the unit is plugged into an appropriate power supply. 03) The LEDs. Return the Infinity to your Showtec dealer. 04) The fuse. Replace the fuse. See page 28 for replacing the fuse.
  • Page 34 Infinity iS-200 Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures are cables are plugged in. completely dead. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected.

  • Page 35: Product Specification

    Infinity iS-200 Product Specification Model: Showtec Infinity iS-200 LED Spot Input Voltage: 100-240 VAC Continuous Power: 370W max. at full output Fuse: F7AL / 250V Dimensions: 346 x 417 x 551 mm (LxWxH) Weight: 21 kg Operation and Programming Signal pin OUT:...
  • Page 36 Infinity iS-200 Gobos Colourwheel: heat-resistant and intensify glass; dichroic glas coating Max. ambient temperature t 40°C; Max. housing temperature t : 80°C Motor: high quality stepping-motor controlled by microprocessors Minimum distance: Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: 1.3m...
  • Page 37 Infinity iS-200 Dimensions Ordercode: 41501...
  • Page 38 Infinity iS-200 Notes Ordercode: 41501...
  • Page 39 Infinity iS-200 Ordercode: 41501...
  • Page 40 ©2014 Showtec...
