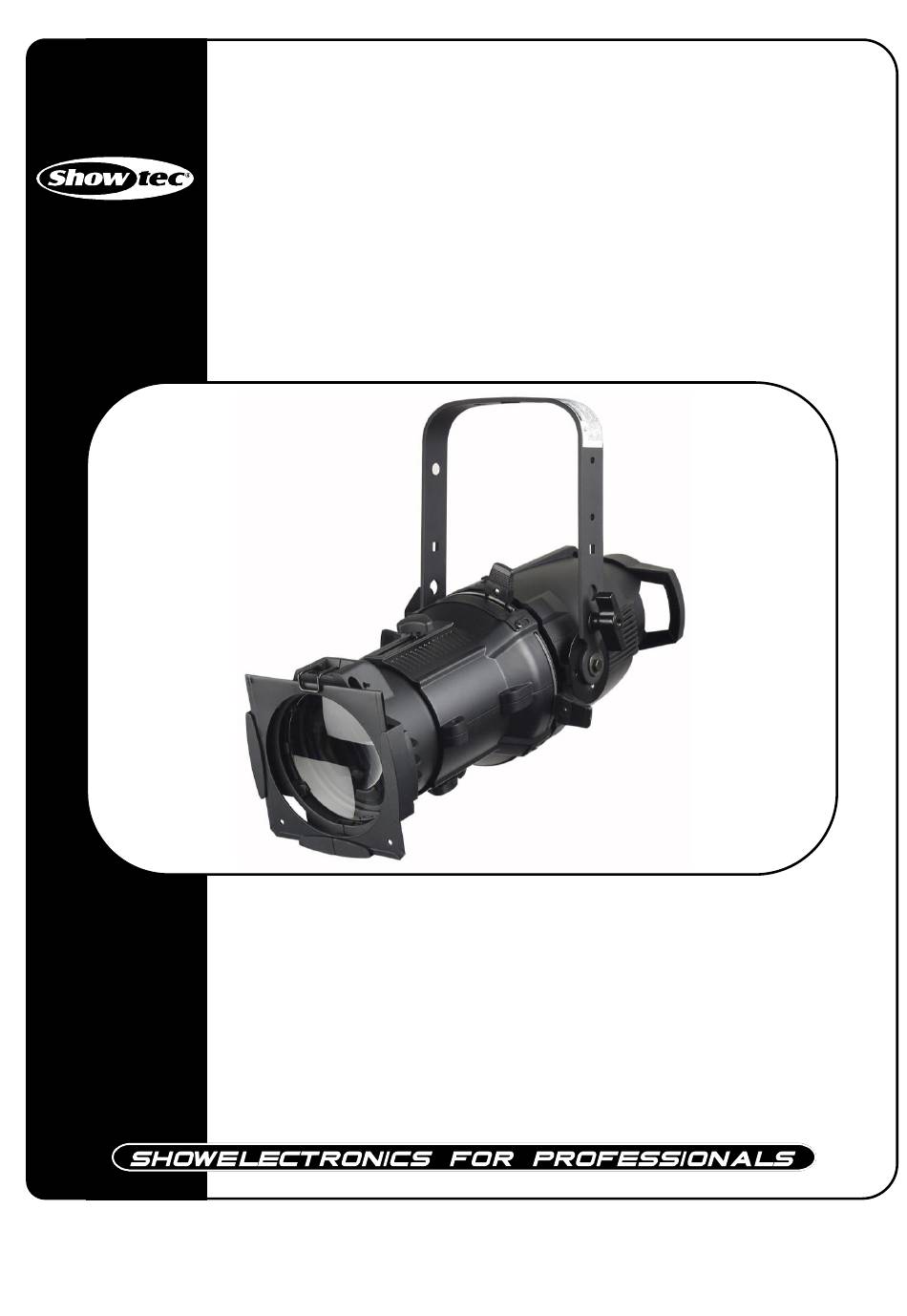

- Page 1 Multi Profile Spot 19° ORDERCODE 30643...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Multi Profile Spot Product Guide ™ Warning.................…...……………..…………………………….………..… Safety-instructions……………………………………………………………………………………………………….. Operating Determinations.……………………………………………………………………………………………. Rigging.……………………………………………………………………………………………………………………. Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….…………. Features and Overview ………………………………...….……………….………….……….……….…………….. Installation................…...…………………………………………………..…. Installing the Lamp ............…………………………………………………….………. Set Up and Operation..............……..………………………………………….….. Lens Locations..............………………….…………………........Centering and adjusting the lamp.............………………….…………………………..Focusing the beam.............................. -
Page 4: Warning
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. The maximum ambient temperature t = 45°C must never be exceeded. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features The Showtec Multi Profile Spot from Showtec is also suitable for Goboprojection. • Lamp GKV-600 Osram 230V 600W (80824) • 15000 Lumen at 3265 ºK Overview Fig. 1 Fig. 2... -
Page 9: Installation
Installation Installing the Lamp The Showtec Multi Profile Spot uses a GKV-600 Lamp (ordercode 80824 / 80825 / 80826), as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 10: Lens Locations
Lens Locations The different lenses used in the Multi Profile Spot are not interchangeable. When installing a new lens, refer to the illustration below for proper placement. Also, remember to have the lens' color designator dot facing the color frame. Fig. -
Page 11: Focusing The Beam
Focusing the beam 1. Loosen the beam focus knob located under the barrel (Fig. 6). 2. Slide the lens tube forwards or backwards to achieve the desired beam edge. 3. Once the fixture is focused, tighten the beam focus knob. Fig. -
Page 12: Shaping The Beam
Shaping the beam You may shape the beam with the shutters, a pattern, an optional drop-in iris, or by rotating the barrel. Pattern Projection The pattern holder slot is on the top side of the barrel and in front of the shutters. It accommodates A-size, B-size and glass pattern holders (Fig.9). -
Page 13: Rotating The Barrel Assembly
Rotating the barrel assembly 1. Loosen the barrel rotation knob directly behind the shutters on the underside of the reflector housing (Fig. 11). Do not remove the barrel rotation knob. 2. Rotate the barrel to the desired position (up to 25º in either direction from the centered position). 3. -
Page 14: Adjusting The Yoke Position
Adjusting the yoke position The device provides multi-positioning capabilities within its yoke for overall fixture height and angle. Setting the fixture height within the yoke The device has a two-position yoke for modifying the overall height in which the fixture is mounted (Fig 13). -
Page 15: Cleaning
Cleaning Please follow the next recommendations when cleaning and inspecting lenses and reflectors: Do not use glass or window type cleaners on lenses (glass or polymer) or reflectors. Do not use abrasive materials such as steel wool. Replace lenses if they contain visible damage (cracks or deep scratches) which that may impair their effectiveness. -
Page 16: Set Up And Operation
4. If you are unable to determine the cause of the problem, do not open the device, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. -
Page 17: Product Specifications
Product Specification Model: Showtec Multi Profile Spot Voltage : AC 230V-50Hz (CE) Power: max. 750W Dimensions :570 x 270 x 270 mm (LxWxH) Weight : 2,4 kg Lamp Allowed lamp models*: Osram GKV-600 (250hr; 14000 Lumen) 230V 600W ordercode 80824 GE GKV-600 (250hr;...
