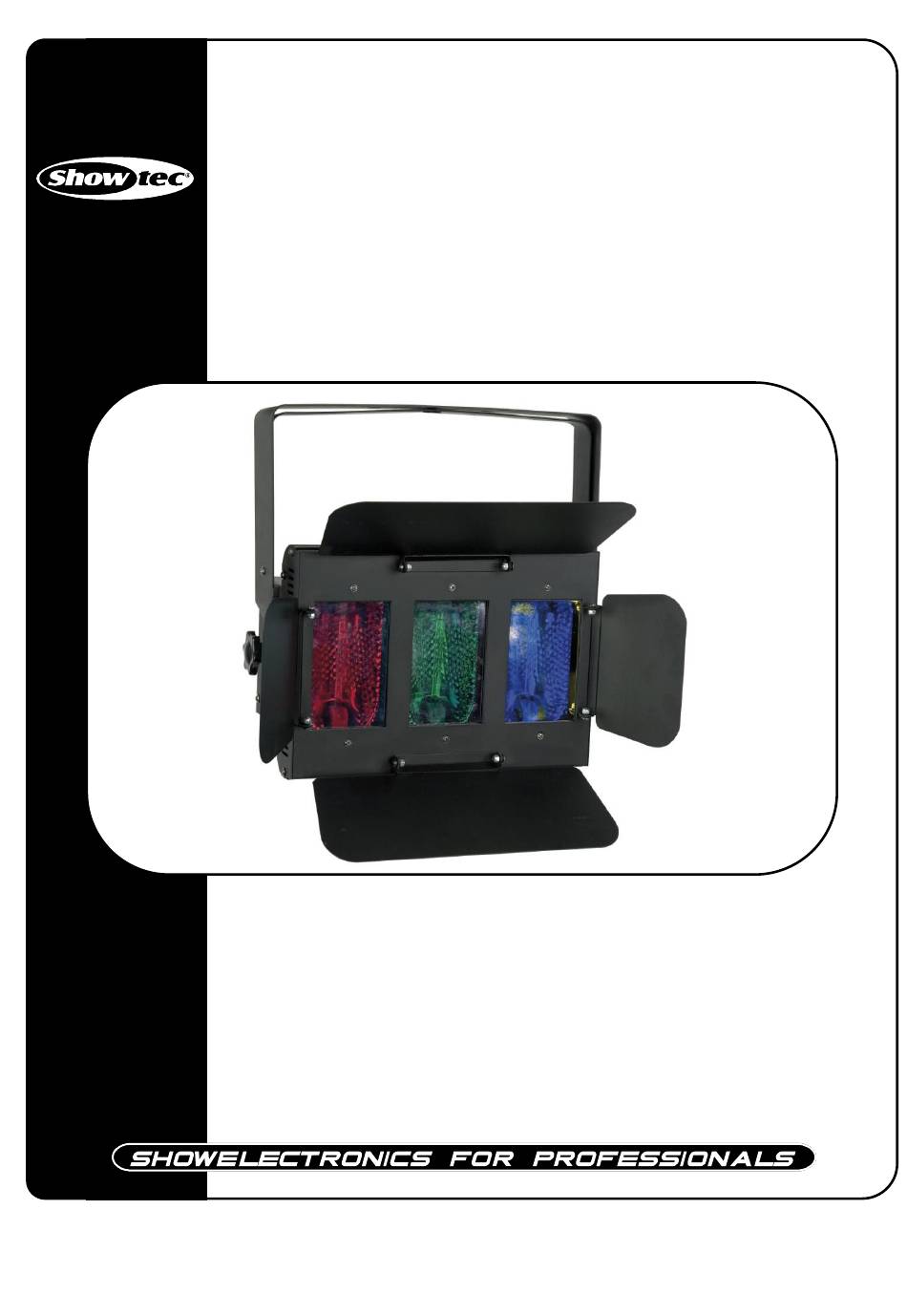

- Page 1 TriFlood ORDERCODE 50464...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec TriFlood brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec TriFlood Product Guide ™ Warning.................…...……………..…………………………….………..…. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………….. Description................…...………………………………………….………..… Features and Overview ………………………………...….……………….………….……….……….…………….. Backside…………………………………………………...…...….……………….…………………...….…………….. Installation................…...…………………………………………..……..…… Installing the Lamp ............………………………………………..…………………… Set Up and Operation..............……..……………………………………………… One TriFlood...............…………………………………………………..………. Multiple TriFloods...............…………….…………………………………….…. DMX-Protocol…...........…………………………………………………………………….…… Control Modes........………………………………………………………………………………. Stand – alone mode......…………………………………………………………………………. Sound-Control mode......…………………………………………………………………………. mode..........…………………………………………………………………………. Control Panel….....……........………………………………………………….………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
For replacement use lamps and fuses of same type and rating only. Allow time to cool down, before replacing lamp. The user is responsible for correct positioning and operating of the TriFlood. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. -
Page 6: Description
Description of the device Features The Showtec TriFlood is a Theatrelight from Showtec with RGB-Colormixing. • Indoor use • DMX-512 • 3 DMX modes 2, 3 or 4 channels (depending on the Control Modi) • Stand Alone: Sound activated/Automatic • Auto, sound, master-slave mode •... -
Page 7: Backside
Installation Installing the Lamp The Showtec TriFlood uses 3x R7-S lamps (ordercode 82281), as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 8: Set Up And Operation
Control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. When the TriFlood is not connected by a DMX-cable, it functions as a stand-alone device. Multiple TriFloods 1. Fasten the effect light onto firm trussing. -
Page 9: Dmx-Protocol
When the TriFlood is not connected by a DMX-cable, it functions as a stand-alone device. By holding down the Mode Button you can switch to Audio, the TriFlood will automatically change its color to the beat of the music. With the Audio Sensitivity control you can adjust its music-sensitivity. -
Page 10: Dmx Mode
3. DMX Mode When the TriFlood is connected by a DMX-cable, it functions as a DMX device. You can change the DMX address from 1-511. There are 3 different DMX Modi: RGB&D Mode In RGB&D Mode, the device has 4 channels: 1. -
Page 11: Control Panel
DMX address the next time.) DMX Addressing The control panel on the front side of the TriFlood allows you to assign the DMX fixture address, which is the first channel from which the TriFlood will respond to the controller. -
Page 12: Dmx Channels
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec TriFlood requires almost no maintenance. However, you should keep the unit clean. -
Page 13: Changing The Lamp
4. If you are unable to determine the cause of the problem, do not open the device, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. -
Page 14: Product Specifications
Signal output 3-pin XLR female Lamp Allowed lamp models*: 3x Showtec R7S 300W (1500 hr) ordercode 82281 *: Versions for other lamps may be produced. Please check the specification label on your product. Design and product specifications are subject to change without prior notice.
