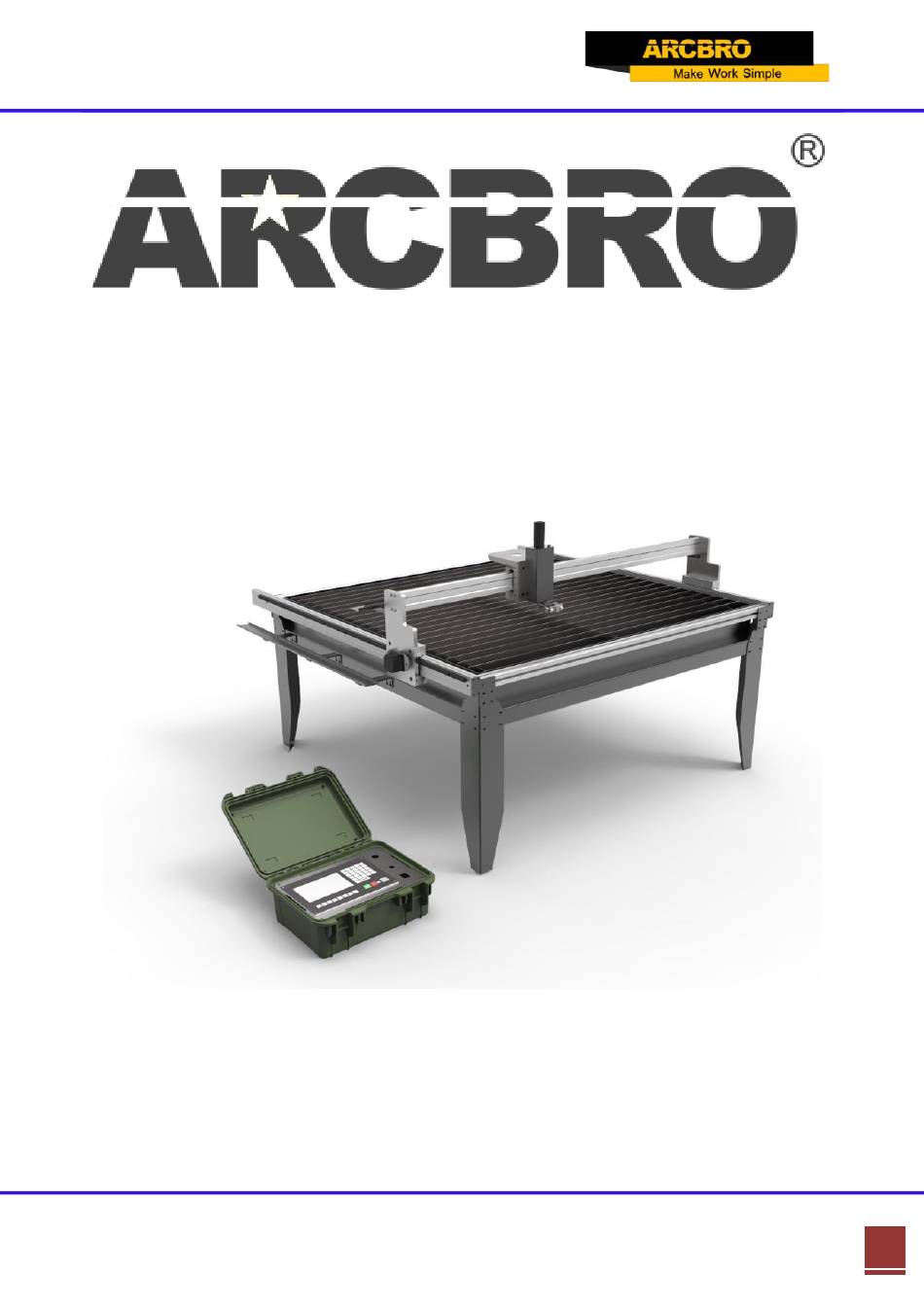

- Page 1 Service Support Spirit Spark SERIES CNC Plate Cutting Machine install Manual Operator Manual ARCBRO| Revision 2 | English Date of issue: January, 2023 WWW.ARCBRO.COM Unique Solution...
- Page 2 Service Support Spirit Technical Support Thank you very much to choose ARCBRO product, our whole engineer department work for you since the day you receive machine. When you have any questions during assembling or operating, it is free to contact us by Call, Email, Online help 7x24 hours.
- Page 3 ARCBRO Company. v This User’s Manual is only available for Spark CNC Plate Cutting Machine. v Ensure that the operator has read and understood this User’s Manual before any operation on Spark CNC Plate Cutting Machine.
-
Page 4: Table Of Contents
Step 6: Install DIV Box to the Equipment steel frame..............24 Step 7: Connect CNC controller box ................... 25 Step 8: Adjust the diagonal of the Spark..................26 Step 9: Spark is wired with plasma..................... 27 Technical Parameters Type Spark WWW.ARCBRO.COM Unique Solution... -
Page 5: Notes
Arc voltage Auto Torch Height Controller Cutting tolerance smaller than ±0.3mm Accuracy Notes Note 1: Nesting software standard Wizard is included in standard package. Note 2: The machine must be grounded reliably when it is working. (Connect the plate and the earth) WWW.ARCBRO.COM Unique Solution... -
Page 6: Safety
Never hesitate to contact us for assistance when you have any questions or you need help, and you can reduce the account of time your troubles takes and solve your problem efficiently. Note: Each of the following description must be verified before any operation on Stinger. WWW.ARCBRO.COM Unique Solution... - Page 7 -2. The operator can’t load external program in internal storage of the machine in case of the virus. Only the special software recognized by ARCBRO can be applied. -3. During cutting period, when the floating voltage is too high, the operator should check the ground connection, neutral connection and insulation of the torch handle.
-
Page 8: Stinger Description
If you have such a working scene, for small parts production, furniture decoration, or any other metal works, stop outsourcing your cutting needs and put a production-capable machine in your shop at a fraction of the price. COMPACT, SMART, AND AFFORDABLE. Spark Pro takes its advantages to the limit. WWW.ARCBRO.COM Unique Solution... -
Page 9: Application
(plasma cutting). 1.3. Programming and Nesting Using ARCBRO plate nesting software, you can edit and do the nesting process for your pattern designed by CAD, then generate a G-code cutting file in txt format. This txt cutting file can be recognized and carried out by our CNC system when you import it by a USB drive. - Page 10 CNC controller box-1Set Y axis Frames and tracks -1 Set X axis Frames and tracks -1 Set Drag chains Brackets -1 Set Plasma hold -1Set DIV box-1pcs Line Protective case-1Set ARC start line -1se Feedback line -1set WWW.ARCBRO.COM Unique Solution...
-
Page 11: Installation
Please assemble according to below steps carefully. Any questions or help needed, please do not hesitate to contact ARCBRO after sale service engineer, we will provide help as soon as possible. The installer needs to prepare: electric drill, spirit level, forklift. Two installation mechanical engineers are needed for faster installation. -
Page 12: Basic Assemble Steps
Step: Unpack the equipment box and remove all items Remove all the screws which are fixed the box, check and confirm all the spare parts be inside and well, and then move all the parts out safely. WWW.ARCBRO.COM Unique Solution... -
Page 13: Step 1: Assemble The Legs Of The Equipment Steel Frame
Service Support Spirit Step 1: Assemble the legs of the Equipment steel frame. Note: Install the machine carefully step by step as the following instructions: The Equipment steel frame assembly: WWW.ARCBRO.COM Unique Solution... - Page 14 2. Put the steel legs bolted to the frame. Each support leg is fixed by four bolts; 3. Install 4 support legs; Note: The marks of the 4 support legs correspond to the equipment stee frame one by one; The Equipment steel Frame assembled: WWW.ARCBRO.COM Unique Solution...
- Page 15 Service Support Spirit Frame assembled WWW.ARCBRO.COM Unique Solution...
-
Page 16: Step 2: Assemble The Water Table And Fixture
Service Support Spirit Step 2: Assemble the Water Table and fixture The water table Assemble Step: 1. Lift the whole water table; 2. Insert the water table into the equipment stee frame. The water table assembled WWW.ARCBRO.COM Unique Solution... - Page 17 Service Support Spirit Assemble Step: 3. Put the fixture bolted to the equipment stee frame. Each fixture is fixed by four bolts; Press the water table with the fixture; Fixture WWW.ARCBRO.COM Unique Solution...
-
Page 18: Step 3: Assemble Y Axis Frames And Tracks To The Equipment Steel Frame
2. Put the Y axis Frames and tracks bolted to the equipment stee frame. Each Connect the plate is fixed by four bolts; NOTE: When installing, the orientation of the Y axis Frames and tracks and the equipment steel frame is consistent; Behind Front WWW.ARCBRO.COM Unique Solution... - Page 19 Service Support Spirit The Y axis Frames and tracks assembled: WWW.ARCBRO.COM Unique Solution...
-
Page 20: Step 4: Install X Axis Frames And Tracks To Y Axis Frames
3. Align the wheels of the X axis Frames and tracks and the guiding rail, Push the X axis Frames and tracks to slide in along the Guide Rail. 4. Reinstall the two limit stops; NOTE: Installation requires simultaneous access to the guiding rail Guide Rail WWW.ARCBRO.COM Unique Solution... - Page 21 Service Support Spirit Guide Rail The X axis Frames and tracks assembled: WWW.ARCBRO.COM Unique Solution...
-
Page 22: Step 5: Install Drag Chain Brackets And Drag Chain
Install drag chain Brackets and drag chain. The drag chain Brackets: Assemble Step: 1. Put the drag chain Brackets bolted to the equipment stee frame. Each Connect the plate is fixed by two bolts. NOTE: The bracket requires a snap main bolt. WWW.ARCBRO.COM Unique Solution... - Page 23 2. Remove the drag chain from the beam; The the drag chain are fixed in the X-axis drag chain groove and the Y-axis the drag chain groove respectively Secure the two ends of the energy chain with 6 bolts Secure the two ends of the energy chain with 6 bolts WWW.ARCBRO.COM Unique Solution...
-
Page 24: Step 6: Install Div Box To The Equipment Steel Frame
Service Support Spirit Step 6: Install DIV Box to the Equipment steel frame Assemble Step: DIV Box 1. Put the DIV box bolted to the equipment stee frame. Each Connect the plate is fixed by two bolts WWW.ARCBRO.COM Unique Solution... -
Page 25: Step 7: Connect Cnc Controller Box
Service Support Spirit Step 7: Connect CNC controller box Assemble Step: 1. Put the DIV box bolted to the equipment stee frame. Each Connect the plate is fixed by two bolts 2. 2 CNC controller box Line Protective case WWW.ARCBRO.COM Unique Solution... -
Page 26: Step 8: Adjust The Diagonal Of The Spark
0.5mm; Assemble Step: Adjust the diagonal of the frame by adjusting the bolts in front of the frame; Note: It is necessary to measure the diagonal of the device while adjusting; WWW.ARCBRO.COM Unique Solution... -
Page 27: Step 9: Spark Is Wired With Plasma
—ARC START cable to plug of the plasma power source, —Feedback cable to plug of the plasma power source. Note: Ref. your plasma power source handbook for recommended Torch Height for different thickness. For detailed wiring solution, please refer to www.arcbro.com/troubleshooting WWW.ARCBRO.COM Unique Solution...
