Summary of Contents for ARCBRO Spark Series

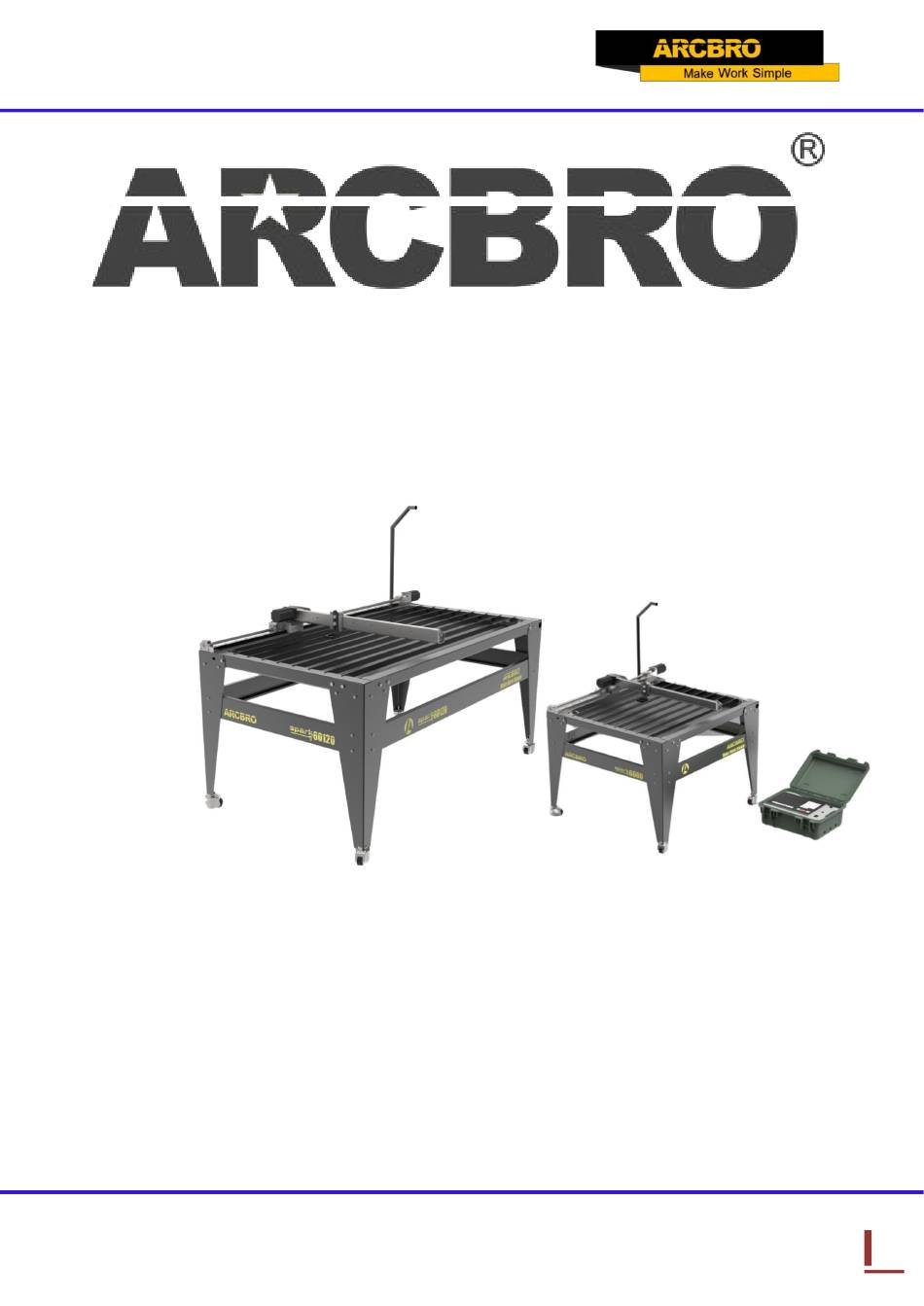

- Page 1 Service Support Spirit Spark SERIES CNC Plate Cutting Machine Installation Manual Operator Manual ARCBRO| Revision 2 | English Date of issue: August, 2021 WWW.ARCBRO.COM Unique Solution...
- Page 2 Service Support Spirit Technical Support Thank you very much to choose ARCBRO product, our whole engineer department work for you since the day you receive machine. When you have any questions during assembling or operating, it is free to contact us by Call, Email, Online help 7x24 hours.
- Page 3 (M5 Hexagon socket bolt) Step4:Use another (7)Longer stiffener to connect (6)Leg and (0)Leg. (M5 Hexagon socket bolt) Step5:Use 2 M6 Hexagon socket bolt to fix the (8)cable carrier and the (0)Main axle side Leg. II:Installation of Main frame WWW.ARCBRO.COM Unique Solution...
- Page 4 Step3:From buttom,Use 24 M4 Stainless Bolts to fix (12)the Workpiece table sealing board and the base as shown in the figure below.(fixed with 24 M4 Stainless Bolts) Step4:Rotate Horizontal axle to be perpendicular to the main Axle,then fix with 4 M6 Hexagon socket screws. WWW.ARCBRO.COM Unique Solution...
