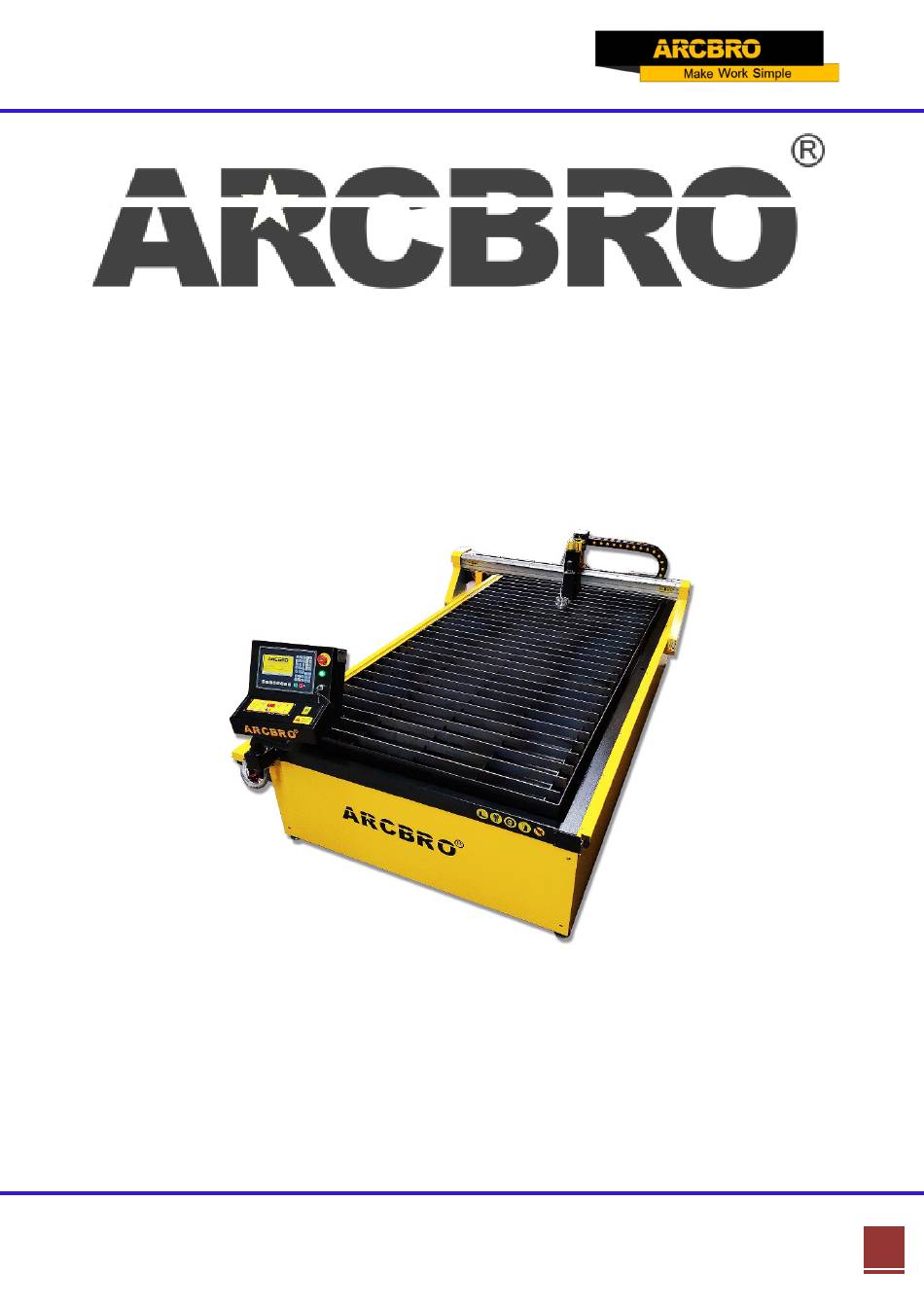

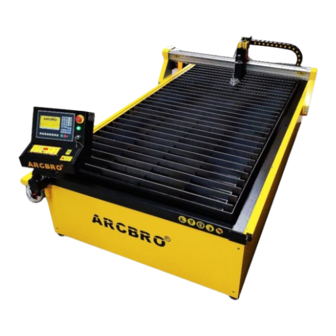

- Page 1 Service Support Spirit Stinger SERIES CNC Plate Cutting Machine install Manual Operator Manual ARCBRO| Revision 2 | English Date of issue: August, 2020 WWW.ARCBRO.COM Unique Solution...
-
Page 2: Technical Support
Service Support Spirit Technical Support Thank you very much to choose ARCBRO product, our whole engineer department work for you since the day you receive machine. When you have any questions during assembling or operating, it is free to contact us by Call, Email, Online help 7x24 hours. - Page 3 ARCBRO Company. This User’s Manual is only available for Stinger CNC Plate Cutting Machine. Ensure that the operator has read and understood this User’s Manual before any operation on Stinger CNC Plate Cutting Machine.
-
Page 4: Table Of Contents
Step 5: Connect the machine Base to the Ground............19 Step 6: Air pressure gauge part assemble................20 Step 7: Plasma cutting part assemble................21 Step 8: Pneumatic cutting part installation................22 Step 9: Flame cutting part installation................27 WWW.ARCBRO.COM Unique Solution... -
Page 5: Technical Parameters
PLASMA CUTTING MODE Max cutting speed 6000mm/min Max cutting thickness Depends on plasma power source Plasma power source Support up to 125A ( not include in standard package ) Arc voltage Auto Torch Height Controller Accuracy ±0.3mm WWW.ARCBRO.COM Unique Solution... -
Page 6: Notes
Note 5: Clean dust regularly to keep the rail and rack clean for smooth movement. Note 6: Avoid damage for the LED display screen of CNC system. Note 7: Equipment use environment: Ambient temperature: -10℃—+50℃ Environment humidity: 90﹪RH below Storage temperature: -20℃—+65℃ Sea level elevation: An altitude of 1000 m below WWW.ARCBRO.COM Unique Solution... -
Page 7: Safety
-2. The operator can’t load external program in internal storage of the machine in case of the virus. Only the special software recognized by ARCBRO can be applied. -3. During cutting period, when the floating voltage is too high, the operator should check the ground connection, neutral WWW.ARCBRO.COM... - Page 8 -8. Only trained personnel can be allowed to operate the equipment. Any maintenance should obey the user’s manual and before that the power should be cut off. Only experience technicist is allowed to change assemblies. WWW.ARCBRO.COM Unique Solution...
-
Page 9: Stinger Description
(plasma cutting). 1.3. Programming and Nesting Using ARCBRO plate nesting software, you can edit and do the nesting process for your pattern designed by CAD, then generate a G-code cutting file in txt format. This txt cutting file can be recognized and carried out by our CNC system when you import it by a USB drive. -
Page 10: Packing List
Open the top cover of the boxes. And remove all the screws fixing the cover to the box body. The Stinger transportation boxes contain: This accessory is standard configuration, if your machine is customized, the accessories are according to the order requirements. The bolts of the machine are fixed to the machine. WWW.ARCBRO.COM Unique Solution... - Page 11 Service Support Spirit Packing List: WWW.ARCBRO.COM Unique Solution...
-
Page 12: Installation
This part describe how to install Stinger 1.5x3m portable CNC cutting machine step by step. Please assemble according to below steps carefully. Any questions or help needed, please do not hesitate to contact ARCBRO after sale service engineer, we will provide help as soon as possible. -
Page 13: Basic Assemble Steps
Step 5: Connect the machine Base to the Ground. Step 6: Air pressure gauge part assemble. Step 7: Plasma cutting part assemble. Step 8: Pneumatic cutting part installation. Step 9: Flame cutting part installation. WWW.ARCBRO.COM Unique Solution... -
Page 14: Step: Unpack The Equipment Box And Remove All Items
Step: Unpack the equipment box and remove all items Remove all the screws which are fixed the box, check and confirm all the spare parts be inside and well, and then move all the parts out safely. WWW.ARCBRO.COM Unique Solution... -
Page 15: Step 1: Assemble The Legs Of The Gantry Frame
2. Insert the leg into the frame. Assemble Step: 3. Connect and fix all legs onto the Gantry Frame by top screw(M16). Note: Hold the M16 screw firmly before you enter it into the small frame leg hole. Frame assembled WWW.ARCBRO.COM Unique Solution... -
Page 16: Step 2: Assemble The Legs Of The Water Table
(each leg fixed by 2 bolts). Loosen Note: Insert the leg to the top and fix the bolt. NOTE: the bolts Use a forklift, Put the water table to a suitable installation position. The water table assembled WWW.ARCBRO.COM Unique Solution... - Page 17 Service Support Spirit Use a forklift, Combine the frame and the water table together. NOTE: Put the front end of the water table close to the front end of the frame. Assemble 【Beam】fixed by 8 bolts. The Beam WWW.ARCBRO.COM Unique Solution...
-
Page 18: Step 3: Assemble Each Side Board Onto The Frame Leg
Step 3: Assemble each Side Board onto the frame leg Fix each Side Board onto the frame leg by screws. The Side Board assembled Step 4: Install longitudinal drag chain trough. Fix each drag chain trough onto the frame leg by screws;-- 3 support frames. WWW.ARCBRO.COM Unique Solution... -
Page 19: Step 5: Connect The Machine Base To The Ground
Adjust the [Level Bolts] according to the measurement of Level Gauge, to make sure: a- the Water Table level; b- the 2 track on same horizontal level [The level precision request: ±1mm] The fixed to the ground. WWW.ARCBRO.COM Unique Solution... -
Page 20: Step 6: Air Pressure Gauge Part Assemble
-1. Connect and fix Air pressure gauge onto the Gantry Frame by top screw(M6). -2. Connect the air pressure tube to the air compressor. Connect the air pressure tube to the air compressor. Note: The machine must be connected to an air compressor before cutting. WWW.ARCBRO.COM Unique Solution... -
Page 21: Step 7: Plasma Cutting Part Assemble
Step 7: Plasma cutting part assemble. 1. Load the plasma torch to the holder. 2. Connected the plug to the IHS box. IHS BOX IHS wire Connection: Connect the IHS wire to the shield of the plasma torch. WWW.ARCBRO.COM Unique Solution... -
Page 22: Step 8: Pneumatic Cutting Part Installation
Note: Ref. your plasma power source handbook for recommended Torch Height for different thickness. For detailed wiring solution, please refer to www.arcbro.com/troubleshooting Step 8: Pneumatic cutting part installation. Parameter Set for Thin Sheet Cut.- Pneumatic selection button on the panel. Assemble Step: 1- Connect the air compressor to the Pneumatic TCH connector;... - Page 23 4-- Keep the red IHS wire’s tip away from any conductive stuff. Assemble Step: 5-- Install the pneumatic holder by screws. 6-- Install the plasma torch and adjust the height of the torch,height range 0.5-1mm WWW.ARCBRO.COM Unique Solution...
- Page 24 Press【CUTOXY】, the torch goes down, adjust the torch height, tighten the holding bolt , fix the plasma torch). 9– Adjust the pneumatic holder, if the platen press the plate too tight, adjusted the height of pneumatic holder Spinner WWW.ARCBRO.COM Unique Solution...
- Page 25 1-- Install the water pump accessories to the water pump. 2-- Connect the water pipe to water pump water. Assemble Step: 3--Connect the water pump to supply water. Use hose clamps. 4-- When cutting, please supply power to the water pump. WWW.ARCBRO.COM Unique Solution...
- Page 26 —ARC START cable to plug of the plasma power source, —Feedback cable to plug of the plasma power source. Note: Ref. your plasma power source handbook for recommended Torch Height for different thickness. For detailed wiring solution, please refer to www.arcbro.com/troubleshooting WWW.ARCBRO.COM Unique Solution...
-
Page 27: Step 9: Flame Cutting Part Installation
Service Support Spirit Step 9: Flame cutting part installation. The standard configuration not flame auto. Stinger--Recommended not to configure flame cutting. 1--Mount Flame THC hold 2--Connect the oxygen pipe and gas pipe. 3--Capacitor signal connected to flame THC. WWW.ARCBRO.COM Unique Solution... - Page 28 Service Support Spirit 4--Connect the oxygen pipe and gas pipe to the oxygen tank and gas tank. WWW.ARCBRO.COM Unique Solution...
