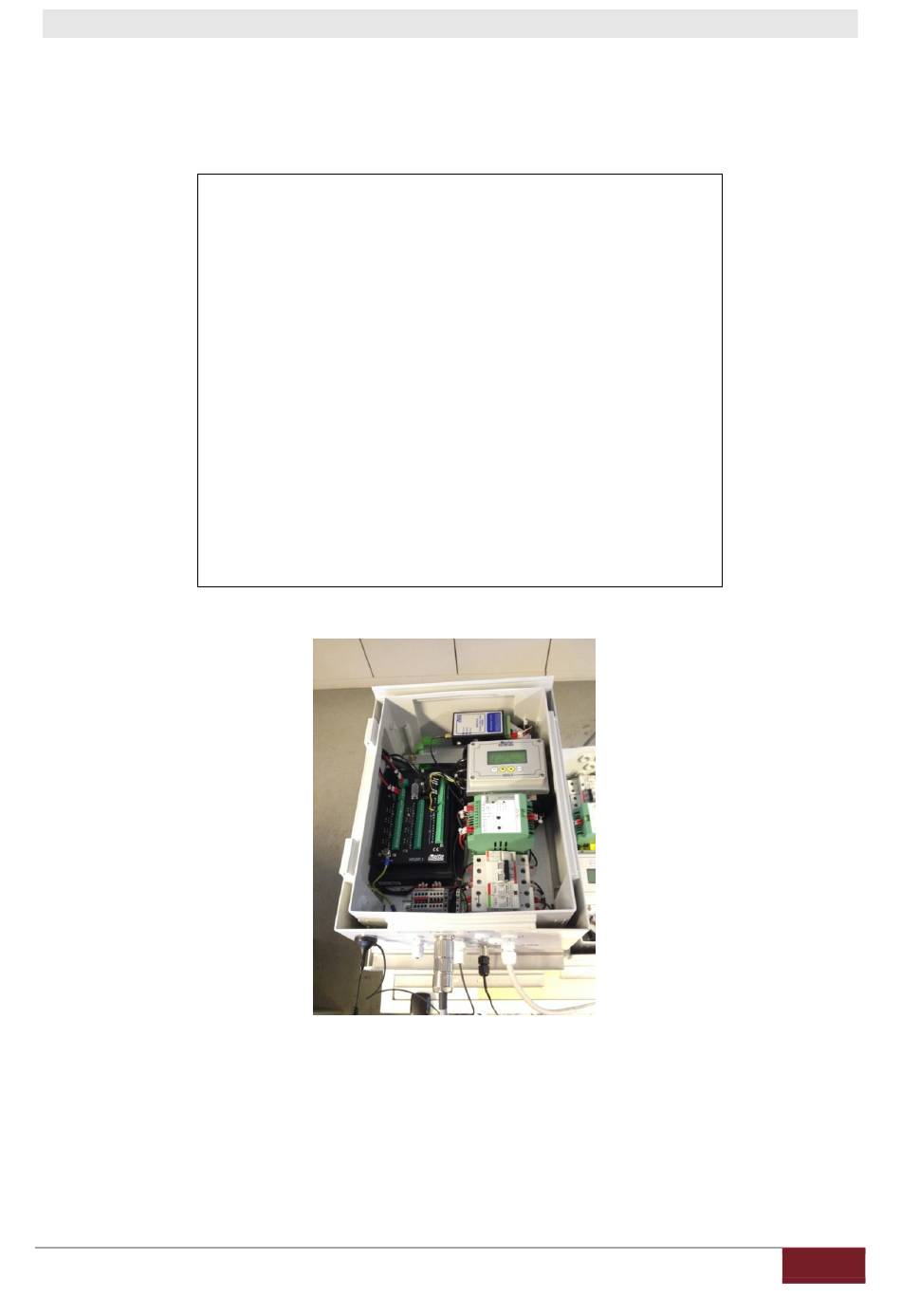

- Page 1 Rev. 1.0 30/03/2016 HD32MT.1 TCP/IP Server HD32MTLogger MeteoStudio HD 32.D Display QUICK START ENGLISH DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
-
Page 2: Main Power
If the power supply of datalogger falls below 11.0V (i.e. the battery near 12.0V), the datalogger goes in LOW POWER Mode and suspends all measures and stops the supply to the sensors, until the power supply goes to 11.8V. DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx... - Page 3 PIN code on the SIM (if it’s active) Note: Figure 1 It’s better to disable the Windows Firewall, for example for XP: Figure 8 DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
- Page 4 Reconnect Time Interval: 15 Transfer Meaning: 1 Press the Save button. Check in Output Info the correct saving by the OK messages. Press again the Save button if some parameter show “Save… Failed” [*]. Figure 3 DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
- Page 5 Press Reboot Enter Communication State wait some seconds and follow the next chapter. TCP/IP S ESTING THE ERVER To verify if the TCPIP Server connection works well, see the next chapter that uses the HD32MTLogger software. DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
- Page 6 COM PC input of HD32MT.1 datalogger : Figure 11 HD32MTL OGGER The DeltaOhm software HD32MTLogger permits the configuration of the HD32MT.1 and the single station communication: Figure 12 Press the Service button until the Automatic Service (if it appears) show DISABLE in the bottom Status bar.
-
Page 7: Tcp/Ip Setup
Clicking Connect, (the Automatic Service becomes DISABLE in the same way that clicking the Service button) the software remains in the LISTEN Mode and tries to reach the HD32MT.1 of the station. Step 1: This is the LISTEN Mode Figure 14... - Page 8 It’s necessary to insert the correct Password if you desire to use Send Program or User code setup functions: 00000000 (eight zeros, default setting) Note: if you insert a new password, you must take attention to remember it ONITOR ROGRAM CHEDULING Clicking Monitor, appears the Monitor of the measurements: DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
- Page 9 Direction), are the same that will appear together on the graphs of HD32MTLogger and also on MeteoStudio (see the below chapter Graphical Archive of MeteoStudio). To send a new Program to the datalogger HD32MT.1, press the button Send Program and the Scheduling form appears:...
- Page 10 The IPMODEM is always OFF and the TCPIP Server connection is impossible. This option is necessary for Serial or RadioModem or TCPIP Client connections. If the HD32MT.1 has a running Program with No scheduling option, to work with TCPIP Server mode, first you must connect your PC to send to the datalogger a Scheduling Program, directly by RS232 cable to the COM PC input of HD32MT.1 and choose Serial connection in the above Choice of connection type (figure 13).
- Page 11 SunTech. Put on the Ser. Num. the serial number of the HD32MT.1 of the station, and put on the Name, the name of this station, for example Station 1. Press Save modifications.
- Page 12 Then the serial port or the address (if are necessary) and the TCPIP port (if necessary). Click the Enable download of the station you desire to connect. Choose the Download interval through which the data coming from the stations, are memorized on the \\MeteoStudio\SunTech directory of DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
- Page 13 If some client aren’t able to connect to them station, because there are problems on the line of communication through the IP Modem and router: So the MeteoStudio waits 5 minutes of timeout until to free the button and informs of the problem with this message: DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
- Page 14 The quantities on a table, are already chosen to stay together, during the composing of the Table (see the above Fig.18 chapter Monitor-Send Program-Scheduling), and there is no necessity to specify the type of sensor or the unit. DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
- Page 15 Here the multi stations graphs of all the data for every Table T2: To choose the format of every graph, use the window Select the graph to draw, station by station: To close all the graphs opened: DeltaOhm | HD32MT.1 HD32MT TCPIP Server.docx...
-
Page 16: Utc Offset
If the HD32.D Display is equipped with GPS sensor, the Clock of the datalogger is adjusted from the HD32.D Display and is always set to the UTC time. Do not change the HD32MT.1 clock with the button of the HD2MTLogger.
