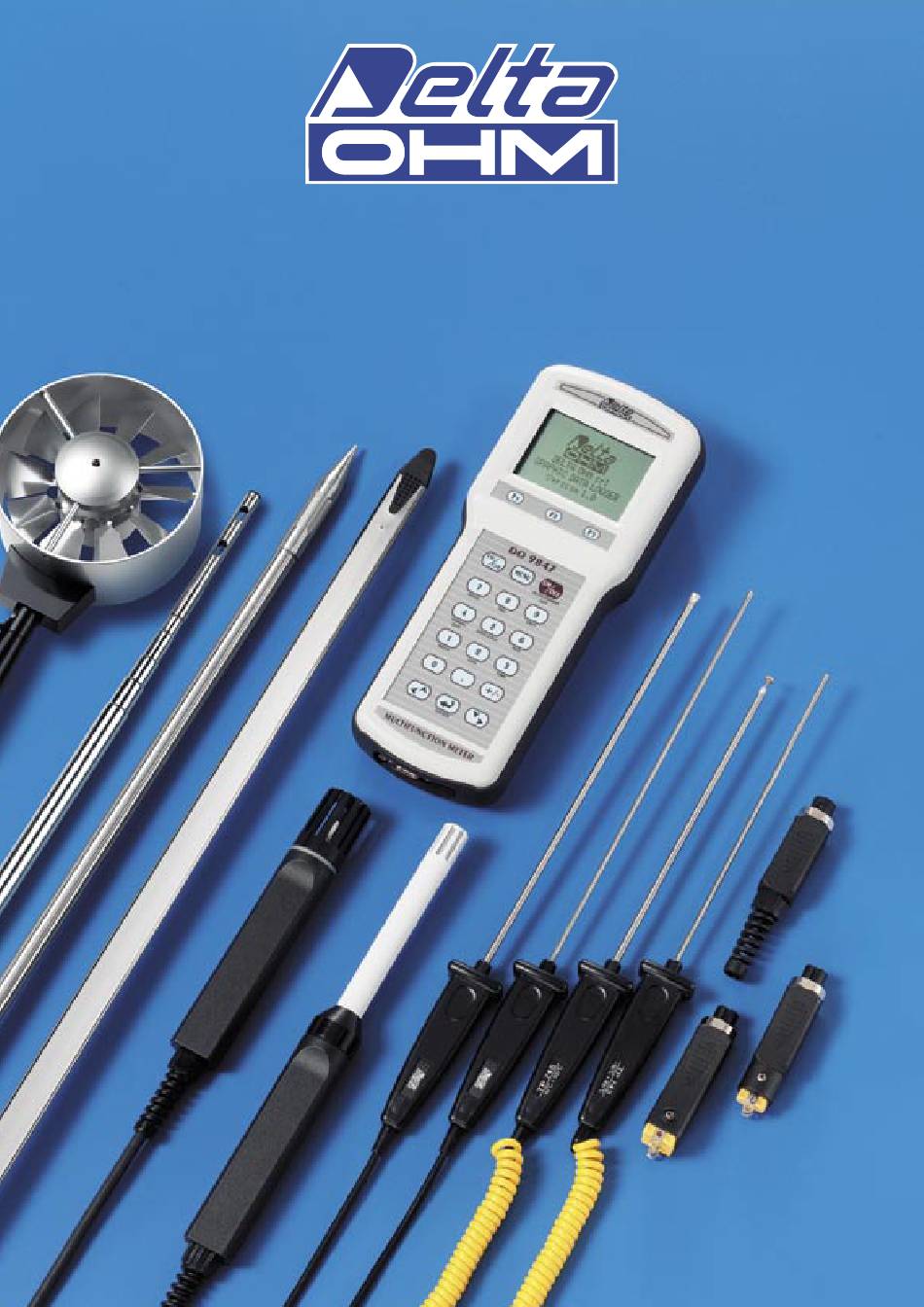

Page 1 DO 9847K STRUMENTO MULTIFUNZIONE PORTATILE DATA-LOGGER PORTABLE MULTIFUCTION DATA-LOGGER INSTRUMENT INSTRUMENT PORTATIF MULTIFONCTION COLLECTEUR DE DONNÉES TRAGBARES MULTIFUNKTIONSGERÄT DATALOGGER INSTRUMENTO MULTIFUNCION PORTABLE DATALOGGER It measures Temperature Relative humidity Pressure: Barometric Absolute Differential Air speed and flow rate: Hot-wire Vane Pitot tube...
Page 2 - 2 -...
Page 3 REV. 3.1 June 15 2009 1. Input B, DIN 45326 8-pole connector 2. Input A, DIN 45326 8-pole connector 3. Battery symbol: indicates the battery charge level 4. First display line (line X) 5. Third display line (line Z) 6. Key <F2>: activates the central command on the controls bar 7.
Page 4: Introduction
INTRODUCTION • Portable multifunction instrument • Datalogger with immediate or delayed start of logging (programming of autostart and autostop) • Large graphic display (56x38mm) with adjustable contrast • Intelligent probes with automatic recognition: they store the factory and user cali- bration data •...
Page 5: Keyboard Description
KEYBOARD DESCRIPTION ON/OFF ON/OFF Key To switch the instrument on and off, hold down the ON/OFF key for at least one second. When switching on the instrument checks what probes are connected to its inputs: if any variations have occurred with respect to the previous measuring session, the opening screen appears with the soft- ware version and, after a few moments, the instrument goes into standard measuring condition dis- playing the channels set just as the switching off.
Page 6 MENU MENU Key When the <MENU> key is pressed, a warning appears to remind the user that this function blocks the measurement and logging operations. Press: to access the menu or <ENTER> to return to measuring mode without terminating the current operations or <ESC/CLR>...
Page 7 ESC/CLR ESC/CLR Key In the menu, it cancels or annuls the active function. In measurement, it cancels the active function that appears on the controls bar (bottom line of the display) and returns the instrument display to the basic screen with the functions Xsel, Ysel and Zsel on the controls bar. Key 0 In the menu it writes the number zero.
Page 8 As long as the logging function is active, the indications B and L flash on the display or only L if the instrument is using an external power supply. To conclude the logging operation, it is sufficient to press the StopLog <F2> key. If after having pressed the key <2/LOG>, you do not want to proceed with the logging operation it is sufficient to press the <ESC/CLR>...
Page 9 Key 5 / DATA CALL DATA CALL In the menu it writes the number 5; in measurement it allows you to call up the maximum (max), minimum (min) and mean (avg) values of the data acquired by the three channels and stored with the RCD function (key <6/RCD>).
Page 10 Key 8 / REL In the menu it writes the number 8; in measurement it displays, for the three channels, the differ- ence between the current value and the one measured at the time the key was pressed. The mes- sage REL appears at the top of the display;...
Page 11 Up / Left Key Key for shifting the cursor during data input in the menu and for regulating the display contrast: if the key is pressed, when outside the menu, it increases the display contrast. ENTER Key ENTER Key for confirming the active function. To increase battery life, it applies and turns off power sup- ply to the hot wire probes, when connected.
Page 12: Use Of The Key
Use of the <Hold> key CURRENT MEASUREMENT press HOLD MEASUREMENT “FROZEN” the message “HOLD” appears the values on the display are not updated press HOLD CURRENT MEASUREMENT...
Page 13: Use Of The Key
Use of the <REL> key CURRENT MEASUREMENT press The display shows the relative measurement, equal to zero if the input signal has not varied in the mean- time. The display shows the relative measurement. Chan- nels A and C have increased, channel B has de- creased.
Page 14: Xsel, Ysel And Zsel Commands
SEL AND SEL COMMANDS In the basic display, the function F1 is associated with the Xsel command. With this command it is possible to set the variable that is to appear on the first line of the display: this variable refers to all three inputs of the instrument.
Page 15: Description Of The Menu Functions
DESCRIPTION OF THE MENU FUNCTIONS The menu contains all the functions by means of which the parameters for instrument operation are set. When the <MENU> key is pressed, the instrument informs the user that, on entering the menu, any Measuring and Logging functions in progress will be terminated. To return to the menu without los- ing data, press <ESC>.
Page 16: 1-2) Change Password
disabled status of the reserved functions, type in the user password and then confirm it with the <ENTER> key. To quit the function without making any changes, press the clear key <ESC/CLR>. <ESC> exit/cancel 1-2) Change password To change the user password: A) enable the reserved functions, if this has not been done, by typing in the present password in point 1) of the Config submenu (see the previous point: Reserved function lock) B) use the function of the Change password menu to type in the new password: type the 8...
Page 17: Logging
This standard rule may be modified by configuring the instrument so as to use one type of calibration rather than another. 0) factory: the probe, connected to the instrument input, will use the factory calibration values inserted in the probe memory before sale or after recalibration in the factory, even if a user calibration carried out with the same instrument is present.
Page 18: 2-1) Self Shut-Off Mode
2-1) Self shut-off mode The instrument switches itself off automatically during logging between one sample acquisi- tion and the next. <ESC> exit/cancel <ESC> exit/cancel ...stay on... or ...shut off... If the logging interval is less than 60 seconds, the instrument will always stay on. For inter- vals of 60 seconds or more, it is possible to choose to switch off the instrument between two consecutive logging sessions: the instrument will switch during sampling and then switch off immediately afterwards, thus prolonging the life of the batteries.
Page 19: 2-3) Cancel Auto Start
<ESC> exit/cancel Start time Stop time <ESC> exit/cancel <ESC> exit/cancel 2-3) Cancel auto start This function allows you to check the setting of the starting and stopping of logging and, if necessary, to cancel the operation. After having viewed the settings, to quit leaving the autostart operation active, press <ESC>.
Page 20: 2-4) Log File Manager
2-4) Log File Manager Manages the files of logged data. Whenever a logging session is started (with the key <2/LOG>), the instrument opens a new file with which it associates the date, the start time and a number from 00 to 15: in this file are saved all the measurements acquired until the end of the logging session.
Page 21: 2-4-1) View Selected Log
2-4-1) View Selected Log VIEW A FILE <ESC> exit/cancel The function enables viewing of the log files directly on the display of the instrument. Se- lect the file with the arrows and then press <ENTER>: the file date and time are presented. Press <ENTER>: the first logged datum appears;...
Page 22: Time/Date
3) T DATE Allows you to set the current time and date. The current time is proposed, increased by one min- ute because, when you confirm with the <ENTER> key, the seconds start from 00. This allows you to synchronise the time precisely to the second: for example, if the time is now 10.34.23 and you go into the TIME/DATE function, the instrument will propose 10.35: when you press <ENTER>, the time 10.35.00 will be set.
Page 23: Calibrate
interval and then confirm it with the <ENTER> key. Press <ESC> > to quit without making any changes. <ESC> exit/cancel current print interval This parameter influences the functions of the immediate printing of data: Screen, RCD+ and Rawdata (see the functions “Screen”, “RCD+” and “ALL” from p.90) 5) C ALIBRATE Manages the calibration functions of the probes connected to the instrument.
Page 24: Utility (Instruments)
After entering the RESET function with the key <6/RCD>, press <ENTER> to confirm or <ESC/CLR> to cancel the operation. 7) U NSTRUMENTS TILITY It makes a list of calculating instruments and functions used by some modules connectable to the instrument. 7-1) Area Calculations It is used for flow measurements: for example with hot wire anemometric probes, as well as with vane and Pitot tube probes.
Page 25 Rectangular Surface: <ESC> exit/cancel <ESC> exit/cancel Press <0> to open the submenu: use the arrows to increase or decrease the measure of the first side (either in cm or in ft); then press “.” (decimal point) to select the second side and the ar- rows to set its length.
Page 26: Options
8) O PTIONS It makes a list of calculating parameters used by some of the modules connectable to the instru- ment. 8-1) Comp. Temp. Select (Selection of Compensating Temperature) It selects the source of temperature compensation, where provided (i.e.: for air velocity, pH, conductivity measurements, etc).
Page 27: 8-3) Comp. Atm. Pressure (Atmospheric Pressure Compensation)
Select “8) Options” from the menu, then “2) Flow averaging time”: select a number between 001 and 100 from keyboard and press <ENTER> to confirm. 8-3) Comp. Atm. pressure (Atmospheric Pressure Compensation) It selects the compensation source for atmospheric pressure. An example: the Pitot tube for air velocity measurements.
Page 28: The Probes
THE PROBES The probes of the graphic datalogger are equipped with an "intelligent" module which acts as an in- terface between the sensor in the probe and the multifunction instrument. Inside this module there is a microprocessor circuit with a permanent memory which performs various function: •...
Page 29: Calibration Of Pt100 Probes
Calibration of Pt100 Probes The calibration procedure is accessible from the Menu: key <MENU> Function 5) Calibrate (on p.23 there is a definition of the options of the Calibration function applicable to all types of probes). 1) Set default Pt100: this function transfers the nominal values of the Pt100 sensor into the memory of the selected probe (to be used if the probe has not been calibrated and is not possible to per- form calibration).
Page 30 Calibration of 0°C: insert the probe in a bath at 0°C. The instrument display shows the temperature value that it is reading: when the reading has stabilised, press <ENTER> to confirm the point at 0°C for the reference sample probe. Press <ESC> to move on to the second point without calibrating the first point at 0°C.
Page 31: Electronic Module Tp471 Sicram For Prt Sensors Without Probe
Electronic module TP471 SICRAM for PRT sensors without probe. The TP471 electronic module is intended for operation with PRT sensors with a 4-wire connection. Temperature probes with a Platinum resistance with R(0°C)= Pt 25 Ω, 100 Ω or 500 Ω may be used.
Page 32: Thermocouple Temperature Probes
HERMOCOUPLE TEMPERATURE PROBES The DO9847 accepts at input thermocouple temperature probes type K, J, T, E, R, S, B and N. The probe is composed of a module with a DIN 8-pole connector for connection to the inputs of the datalogger, a microprocessor circuit with permanent memory and, depending on the models, one or two thermocouple connectors.
Page 33 <ESC> exit/cancel At this point it is possible to insert the type of thermocouple by pressing the corresponding nu- merical key: for example, if you want to set thermocouple type J, press the numerical key <2/LOG> and confirm with the <ENTER> key when the next screen appears. 9=x (reset type) works as K) now at J...
Page 34 measured by the reference thermometer. Move on to the next point or press <ESC/CLR> to end calibration. Second Calibration Point Up to three points are calibrated for compensating probe gain. The three points may be chosen at will as long as they are in increasing order. Moreover, if you do not think it necessary to per- form calibration on all three points, it is possible to calibrate only the first and not the other two (using the <ESC/CLR>...
Page 35: Relative Humidity Probes
ELATIVE HUMIDITY PROBES The humidity probes for the DO9847 are of the combined humidity and temperature type: the hu- midity sensor is of the capacitive type, the temperature sensor is a Pt100. The probes are equipped with a module with a DIN 8-pole connector inside which is a microprocessor circuit with a perma- nent memory which stores the calibration data.
Page 36: Calibration Of The Combined Humidity/Temperature Probe
Xsel, Ysel and Zsel items available in the commands bar are replaced by unitX, unity and unitZ items. Press the function key F1 (unitX) repeatedly to select the Td (°C) variable included in the first group of variables: %RH, Pvp, g/kg, g/m , J/gr, Td (°C), Tw (°C), Td (°F), Tw (°F).
Page 37: Calibration Of The Pt100 Or Thermocouple Temperature Sensor
For combined probes, two distinct calibration procedures are contemplated: one for the tempera- ture sensor and one for the relative humidity sensor. Calibration of the Pt100 or thermocouple Temperature Sensor Save the case in which the temperature sensor is working in a particularly hostile or corrosive at- mosphere, or where, by mistake, its calibration has been endangered, the temperature probe does not normally require recalibration: it is advised to assess the need for new calibration carefully be- fore taking action.
Page 38 0) Full Calibration This calibration procedure erases the data of the previous calibrations. For a correct calibration of the probe the first point must be at 75%RH and the second point at 33%RH. On conclud- ing the second point at 33%RH, the instrument also proposes a third calibration point at 11%RH: if you do not want to use it, it is sufficient to press the <ESC/CLR>...
Page 39 12. If necessary, correct the value of the saturated solution with the arrows. The instrument will indicate the temperature measured by the sensor: to complete correct calibration it is impor- tant that this be kept within ±1°C of the temperature used to calibrate the first point at 75%RH.
Page 40 8. Using the Up and Down arrow keys it is possible to correct the value with respect to the satu- rated solution at 75.0 proposed by the instrument. The temperature is the one measured by the Pt100 or TC sensor. To confirm the calibration point you can use the <REL> key or the <ENTER>...
Page 41: Humidity And Quality Indices (Comfort Indices)
Equilibrium Relative Humidity of Selected Saturated Salt Solutions from 0 to 100°C Temp Lithium Magnesium Sodium °C Chloride Chloride Chloride 11.23 ± 0.54 33.66 ± 0.33 75.51 ± 0.34 11.26 ± 0.47 33.60 ± 0.28 75.65 ± 0.27 11.29 ± 0.41 33.47 ±...
Page 42: Discomfort Index (Di)
Discomfort Index (DI) It is defined as follows: • • • − where T = temperature in °C and H = relative humidity in %. According to the value provided by the DI index, climatic conditions might be defined comfortable, uncomfortable or unbearable: Slightly Highly...
Page 43: Pp471 Electronic Module For Pressure Measurement
PP471 ELECTRONIC MODULE FOR PRESSURE MEASUREMENT The electronic module PP471 connect the instrument with the TP704 and TP705 series Delta Ohm pressure probes. When switching on the instrument allows automatically the acknowledgement of the module PP471 while the kind (absolute, relative or differential) and the full scale value of the probe are acknowledged even if the instrument is switched on: if no logging or recording is running, it’s not necessary to switch off and then on the DO9847 to change the probe connected to the mod-...
Page 44: Relative Measure
each acquisition: thus, the peak value being stored is the one related to the single interval be- tween two subsequent acquisitions. Here are the reasons why two different operating modes have been chosen: when the sampling interval is short, all of the pressure measurements together re- flect quite faithfully the progress of pressure over the time.
Page 45: Pp472 Electronic Module For Barometric Pressure Measurement
PP472 E LECTRONIC ODULE FOR AROMETRIC RESSURE EASUREMENT The electronic module PP472 measures the barometric pressure connected to its input in the range 600.0…1100.0 hPa. The resolution is equal to 0.1 hPa for the whole measuring range. The <9/UNIT> key selects the unit of measurement of the displayed instantaneous value. The fol- lowing units are available: hPa, kPa, mbar, bar, atm, mmHg, mmH O, kgf/cm², PSI, inchHg.
Page 46: Pp473 Electronic Module For The Measurement Of Differential Pressure
PP473 E LECTRONIC ODULE FOR THE EASUREMENT OF IFFERENTIAL RESSURE PP473 S1, S2, …, S8 electronic modules measure differential pressures with 10, 20, 50, 100, 200, 500, 1000 and 2000 mbar full scale. These modules provide the pressure instantaneous value related to variable 1 (A1, B1 or C1 de- pending on the input to which the module is connected).
Page 47: Ap471
AP471…, AP472… AP473… SICRAM M ROBES FOR THE MEASUREMENT OF IR VELOCITY EQUIPPED WITH ODULE The probes of AP471, AP472 and AP473 series are to be connected to a DO9847 multifunction in- strument to measure velocity and flow of an incident airstream. Some of these probes can also measure air temperature.
Page 48: Note Concerning Do9847 Version
Note Concerning DO9847 Version AP471, AP472 and AP473 probes can work connected to a DO9847 only if this is provided with the 2.0 firmware version, or with a later one. Previous versions do not support these probes. To check which is your firmware version, open the menu and select INFO: VER 2 REV 0 indication corresponds to version 2.0.
Page 49 2) Moving Average The Record function provides a space average of acquired values in order to compensate ve- locity differences between a point and another in the pipe section. There is also another cause of error due to stream variations over the time: actually, a stream is not steady but, on the contrary, it can decrease or increase even in the same point.
Page 50: Ap471 S1, Ap471 S2, Ap471 S3 , Ap471 S4, Ap471S5 And Ap471S6 Hot Wire Probes For Measurement Of Air Velocity Equipped With Sicram Module
AP471 S1, AP471 S2, AP471 S3 , AP471 S4, AP471S5 AP471S6 SICRAM ROBES FOR MEASUREMENT OF AIR VELOCITY EQUIPPED WITH MODULE The AP471 S1 and AP471 S3 probes measure incident air flows up to 40m/s. The AP471 S2, AP471 S4, AP471 S5 and AP471 S6 probes are fitted with an omnidirectional sensor allowing measurement of speeds up to 5m/s in any direction of the air flow incident on the probe.
Page 51: Operation
not used, the AP471 S4, AP471 S5 and AP471 S6 are supplied with a protection inder that can be screwed on the probe's head. The procedure is the following: slide the cy- lindrical shield up till the complete closing of the air sensor window placed on the top of the probe.
Page 52: Probe Care And Maintenance
The probe has to stand in orthogonal position with respect to the flow and it shall not to be in- clined: Now you can carry out your measurement, pursuant to the indications provided in the first para- graphs of this chapter. Probe Care and Maintenance The velocity sensor of AP471 S…...
Page 53: Dimensions
Dimensions 200 min - 880 max Ø8 Ø13 AP471 S1 Ø8 Ø13 AP471 S2 200 min 880 max Ø8 Ø13 AP471 S3 AP471 S6...
Page 54 ∅=120 AP471 S4 AP471 S5...
Page 55: Technical Specifications
Technical Specifications AP471 S4 AP471 S1 - AP471 S3 AP471 S2 AP471 S5 AP471 S6 Air Velocity, Calculated Flow, Air Temperature Type of Measurements Type of Sensor Velocity NTC thermistor Omni-directional NTC thermistor Temperature NTC thermistor NTC thermistor Measurement Range Velocity 0.05…40m/s 0.05…5m/s...
Page 56: Ap472 S1, Ap472 S2 And Ap472 S4 Vane Probes For Air Velocity Measurement Equipped With Sicram Module
AP472 S1, AP472 S2 AP472 S4 SICRAM ANE PROBES FOR AIR VELOCITY MEASUREMENT EQUIPPED WITH MODULE AP472 S1, S2 and S4 vane probes are to be connected to DO9847 multifunction instrument. The are used to measure velocity and flow of an incident air flow. AP472 S1, AP472 S4LT and AP472 S4HT probes can measure temperature also by means of a thermocouple type K.
Page 57: Probe Care And Maintenance
The probe has to stand orthogonal with respect to the flow and it shall not to be inclined: The probe is correctly positioned in the air stream when the measured value is the highest one. Carry out measurements pursuant to the indications provided in the first paragraphs of this chap- ter.
Page 58: Dimensions
Dimensions AP472 S1 AP472 S2 AP472 S4 Unscrew the handle (3) holding the probe body still in the point (1).
Page 59 The AP472 S1 - AP472 S2 probes, in addition to the telescopic rod with swivel head can use the rigid telescopic rod ∅16 mm. Unscrew the handle (3) holding the probe body still in the point (1). Screw the rod end AP471S1.23.6 (5) on the screw (2). You can add more telescopic rods AP471S1.23.6.
Page 60: Technical Specifications
Technical Specifications AP472 S1 AP472 S2 AP472 S4… Air velocity, Air velocity, calculated flow, Type of Measurements calculated flow air temperature 100 mm 60 mm 16 mm Diameter Type of Measurement Velocity Vane Vane Vane Temperature Tc K ---- ---- Tc K ---- Tc K...
Page 61: Ap473 S1
AP473 S1 … AP473 S4 SICRAM ITOT ROBES FOR THE EASUREMENT OF AIR VELOCITY EQUIPPED WITH MODULE The Pitot tube is an easy method to measure air velocity in hard-to-reach positions, such as air ducts, and in applications where air velocity and temperature are very high. As no air passes through it, the Pitot tube is particularly suitable for measurements in hostile environments.
Page 62: Ap473 S1
AP473 S1 … AP473 S4 modules AP473 S1, …, AP473 S4 modules work as interfaces between the Pitot tube and the DO9847 unit. Each module can be connected to any Pitot tube with the related thermocouple type K, where provided. With temperature and atmospheric pressure standard conditions, S1 has a 40m/s full scale, S2 a 55m/s full scale, S3 a 90m/s full scale and S4 a 130m/s full scale.
Page 63: Dimensions Of Pitot Tubes
The graph below shows the error in case of misalignment: +0.6 +0.4 +0.2 -0.2 -0.4 -0.6 -0.8 -1.0 -1.2 15° 10° 5° 5° 10° 15° ANGLE The axis of abscissas shows the rotation angle around the vertical axis with respect to the flow direction (yawing), the ordinate axis shows the % error on Pv differential pressure measurement.
Page 64: Technical Specifications
Technical Specifications AP473 S1 AP473 S2 AP473 S3 AP473 S4 Air velocity, calculated pressure, differential pressure, air temperature Type of Measurements Measurement Ranges Differential Pres- 10 mbar 20mbar 50mbar 100mbar sure Velocity (*) 2 … 40m/s 2 … 55m/s 2 … 90m/s 2 …...
Page 65: Vp472 Electronic Module For Solarimeters And Albedometers
VP472 ELECTRONIC MODULE FOR SOLARIMETERS AND ALBEDOMETERS The VP472 electronic module allows you to connect solarimeters and albedometers to the DO9847. The signal generated by the thermopile and detected by the VP472 module may be expressed either as a voltage in mV or as global radiation in W/m .
Page 66: Electrical Connection Of The Solarimeter Or Of The Albedometer To The Vp472 Module
Delta Ohm LP PYRA 02 and the two albedometers LP PYRA 06 and LP PYRA 05. In the case of a single output (solarimeter LP PYRA 02 or LP PYRA 03) connect only input 1 of the module (incident radiation) and make a jumper between the inputs 2.
Page 67 LP PYRA 06 UPPER TERMINAL BOARD RED (+) BLUE (-) BLACK (SHIELD) BLACK (SHIELD) BLUE (-) RED (+) LOWER TERMINAL BOARD Electrical connection of the VP472 module to the albedometer LP PYRA 06...
Page 68: Lp 471 Phot, Rad, Uva, Uvb, Uvc, Par And Lum2 Photometric And Radiometric Probes Equipped With Sicram Module
LP 471 PHOT, RAD, UVA, UVB, UVC, PAR LUM2 SICRAM M HOTOMETRIC AND ADIOMETRIC ROBES EQUIPPED WITH ODULE Probes of LP471… series are photometric and radiometric probes measuring illuminance (LP471 PHOT), irradiance (LP471 RAD, LP471 UVA, LP471 UVB and LP471 UVC), PAR (LP471 PAR) and luminance (LP471 LUM 2).
Page 69: Q/Time Integration
NTEGRATION Besides instant measurements, our multifunction instrument can calculate the following summation, as well: Σ ⋅Δ Δt = 1sec Q(t) = u(t) t, where u(t) is the instant value of the input variable at time t. Sampling interval is fixed and equals 1 second.
Page 70 How to Enter the Integration Final Time Starting from the last screen-page shown on page 2, press <0>. Enter the limit time in hours, min- utes and seconds using the arrows to move from a character to the other. Press <ENTER> to con- firm.
Page 71 Supposing that one only probe is connected to input A of the multifunction instrument, the initial screen page will be the same as the one shown above. A1 represents the current value provided by the probe, A2 indicates the integration time and A3 the value of the integral calculated on variable If you press <F3>, A2 and A3 are brought to zero.
Page 72: Technical Pecifications Of
SICRAM M ECHNICAL PECIFICATIONS OF ROBES QUIPPED WITH ODULE LP 471 PHOT ILLUMINANCE Probe Equipped with SICRAM Module (Specifications refer to the instrument combined to the module) Measuring Range (lux): 0.01…199.99 …1999 …19.99⋅10 …199.9⋅10 Resolution (lux): 0.01 0.01⋅10 0.1⋅10 Spectral Response Range: follows photopic standard curve V(λ) Calibration Uncertainty: <4%...
Page 73 LP 471 RAD IRRADIANCE Probe Equipped with SICRAM Module (Specifications refer to the instrument combined to the module) Measuring Range (W/m …19.99 …199.9 …1999 0.1⋅10 … 1.999 Resolution (W/m 0.01 0.1⋅10 / 0.001 Spectral Response Range: 400nm…1050nm Calibration Uncertainty: <5% Cosine Response: <6% Linearity:...
Page 74 PAR LP 471 PAR Quantum-Radiometric Probe for Measuring Chlorophyll Photon Flow, Equipped with SICRAM Module (Specifications refer to the instrument combined to the module) 0.01… 19.99 …199.9 …1999 Measuring Range (μmol/m …9.99⋅10 0.01 Risoluzione (μmol/m 0.01⋅10 Spectral Response Range: 400nm…700nm Calibration Uncertainty: <5% Cosine Response:...
Page 75 LP 471 UVA IRRADIANCE Probe Equipped with SICRAM Module (Specifications refer to the instrument combined to the module) Measuring Range (W/m …19.99 …199.9 …1999 0.1⋅10 … 1.999 Resolution (W/m 0.01 0.1⋅10 / 0.001 Spectral Response Range: 315nm…400nm (Peak 360nm) Calibration Uncertainty: <5% Cosine Response: <6%...
Page 76 LP 471UVB IRRADIANCE Probe Equipped with SICRAM Module (Specifications refer to the instrument combined to the module) Measuring Range (W/m …19.99 …199.9 …1999 0.1⋅10 … 1.999 Resolution (W/m 0.01 0.1⋅10 / 0.001 Spectral Response Range: 280nm…315nm (Peak 305nm) Calibration Uncertainty: <5% Cosine Response: <6%...
Page 77 LP 471UVC IRRADIANCE Probe Equipped with SICRAM Module (Specifications refer to the instrument combined to the module) Measuring Range (W/m …19.99 …199.9 …1999 0.1⋅10 … 1.999 Resolution (W/m 0.01 0.1⋅10 / 0.001 Spectral Response Range: 220nm…280nm (Peak 260nm) Calibration Uncertainty: <5% Cosine Response: <6%...
Page 78: Electronic Modules Vp473 And Ip472 For Measuring Voltage And Continuous Current
VP473 IP472 LECTRONIC MODULES FOR MEASURING VOLTAGE AND CONTINUOUS CURRENT SICRAM module VP473 read the continuous current applied at the input in the measuring range from -20Vdc to +20Vdc with a input slope of 1MΩ. If it is connected to the output of a transmitter with voltage signal, it can read and measure the relevant value.
Page 79: Updating Firmware
UPDATING FIRMWARE The firmware, that is the programme which manages all the instrument functions, may be updated by transferring the file to the DO9847 through the serial port RS232C. In this way it is possible to add new types of probes or to update the functionality of the instrument. The update files are avail- able from authorised dealers.
Page 80: Instrument Signals And Malfunctions
INSTRUMENT SIGNALS AND MALFUNCTIONS The following table lists the indications given by the instrument in the various operating situations: from the explanations about a function active at a given moment to error signals and indications supplied to the user. Where contemplated, it also gives references to the pages in the manual where the various functions are explained in detail.
Page 81 The functions Logging (key <2/LOG> and Record (key <6/RCD>) are active at the same time. To end the Logging function press the key <2/LOG>. To end the Record function, press the key <6/RCD> and then the function key <F2>– rcdSTOP –. (See the “Logging” function on p.88 and the function Record on p.86).
Page 82: Low Battery Warning And Battery Replacement
LOW BATTERY WARNING AND BATTERY REPLACEMENT The battery symbol situated in the top left-hand corner of display constantly indicates the state of charge of the batteries in the instrument. As the batteries run low, the symbol gradually "empties" … ... when the voltage of the batteries has reached the limit value of 4.4 Volt, the symbol flashes. In these conditions the batteries should be replaced as soon as possible.
Page 83: Storage Of The Instrument
AULTY OPERATION WHEN SWITCHING ON AFTER CHANGING THE BATTERIES After the batteries have been changed, it is possible that the instrument may not start again cor- rectly. In this case it is advisable to repeat the operation. Wait a few minutes after disconnecting the batteries, to allow the circuit condensers to be completely discharged, then insert the batteries.
Page 84: Serial Interface Rs232C
SERIAL INTERFACE RS232C The instrument is equipped with a standard serial interface RS-232C, galvanically insulated; the in- strument is supplied with a null-modem cable having sub D 9-pole female connectors (code 9CPRS232 ). The following signals are available on the SUB D 9-pin male connector of the instrument: Signal Description Datum received by the instrument...
Page 85 Command Response Notes Measur. indication of each channel: A1, A2, ..., C3, Ti LD## Log dump. To download the data file n°## ## = 00 … 15 (See Note n.1) Log list. List of stored files. Detailed list of stored logging files Character &...
Page 86: The Functions Of Storing And Transferring Data To Apersonal Computer
The DO9847 multifunction datalogger may be connected to a personal computer by means of the RS232C serial port and exchange data and information by means of the program Delta Ohm DeltaLog3® which operates in a Windows environment or with HyperTerminal. The DO9847 can send the values measured by the three inputs directly to the PC in real time using the functions that may be activated with the key <4/S...
Page 87 the measuring session or, in real time, by pressing first the key F1 <rcdGO> to start the recording and then viewing the max, min and avg data with the key <5/DATA CALL>. The example below shows the steps necessary to: 1.
Page 88: The Logging Function
OGGING FUNCTION The Logging function allows the recording of up to 32,000 measurements from the three input channels in the internal memory of the instrument with a time interval between two consecutive measurements which may be set from 1 to 3600 seconds. The data in the memory may be trans- ferred to the PC by means of the command on the Menu “...
Page 89 Example 1: you want to log the trend of three quantities (for example three temperatures) with an interval of 10 seconds; start and stop commands are given by the operator. A) Insert the three probes in the instrument. B) Switch on the instrument. C) If there has been a change in the probes at the inputs with respect to the previous measuring session, the instrument notifies the operator with the message: “WARNING! CHANGE OF ”.
Page 90: The Screen Function
J) Choose if log all the variables A1, A2,…,C3, Ti (option ALL) or only those which are dis- played (option SCREEN). K) At this point the instrument can be switched off: it will switch on again automatically at the established time and date. Notes: 1) Logging stops automatically: to stop it before the established time, switch on the instrument, press the key <2/LOG>...
Page 91: The Rcd+ Function
The function is started by pressing the key <4/S > and then the function key F1 : ERIAL Acquisition continues until the operator interrupts it by pressing the key F1 <STOP Printing>: The settings of the parameters for the Screen function are in the MENU under the item Serial ( see p.
Page 92: The All Function
Below is an example of the RCD+ function: Multifunction meter printout / immediate mode Instrument serial n° 00001234 Probe A: RTD ser. number 70000005 Calibration mode: Factory Probe B: RTD ser. number 70000006 Calibration mode: Factory Probe C: RTD ser. number 70000007 Calibration mode: Factory Printing absolute data When appropriate, measurements are referred to temperature = 23.0°C...
Page 93 …to stop it, press <F1> STOP Printing (just like Screen and RCD+ functions). Multifunction meter printout / immediate mode Instrument serial n°= 99990005 Probe A: RTD ser. number 90000002 Calibration mode: User Probe B: Rh ser. number 12365478 Calibration mode: standard Probe C: Double Tc comp ser.
Page 94: Instructions For Connecting The Do9847 To A Pc With Windows Operating System
2. Connect the port RS232C of the measuring instrument to the free serial port on the PC (COM1/COM2) using the Delta Ohm 9CPRS232 cable. 3. Switch the instrument on and set the baudrate at 115200 [key <Menu> >> function Serial >>...
Page 95 B) Name of the communication: • In the window "Description of connection", give a name to the communication that you want to activate and choose an icon (in subsequent communications it will be possible to activate directly the icon chosen in place of HYPERTRM.EXE, automatically recovering all the set- tings saved with the icon).
Page 96 C) Setting communication: • select FILE from the Hyper Terminal window (one click). • select PROPERTIES from the pull-down menu (one click) and the "Properties" window will appear • on the "telephone number" card, for the Connect property, choose "directly to COM1" or COM2, depending on the serial port that you intend to use for communication with the measuring instrument.
Page 97 • on the "telephone number" card, select CONFIGURE (one click) and the "Port settings" card will appear • on the "Port settings" card select: BITS PER SECOND: 115200, (See note below) DATA BITS: 8, PARITY: None, STOP BITS: 1, FLOW CONTROL: Xon / Xoff, OK to confirm the port setting (one click).
Page 98 Still in the Properties window: • select SETTINGS to display the "Settings" card • on the "Settings" card, for the "Emulation" property, select: TTY. • set the property “Buffer for back scroll” at 500 • OK to confirm the "Properties" set (one click).
Page 99 D) To set the correct character type: • select DISPLAY from the Hyper Terminal window (one click). • select CHARACTER from the pull-down menu (one click) and the window for selecting the character will appear; set: Terminal . • As Style select: Normal •...
Page 100 E) To receive data from an instrument: • select CALL from the Hyper Terminal window (one click). • select CONNECT (or CALL, according to Windows operating systems) from the pull-down menu. In this way it is possible to receive the characters from the instrument on the monitor.
Page 101 F) To store data received from an instrument: • select TRANSFER from the Hyper Terminal window (one click). • select CAPTURE TEXT from the menu (one click) and the window will appear where you have to set the name of the file in which to store the data received from instrument. •...
Page 102 H) To end receiving data from an instrument: • select TRANSFER from the Hyper Terminal window (one click). • select CAPTURE TEXT from the menu (one click). • select END from the pull-down sub-menu (one click). At this point data reception from the instrument is ended and the file stored in the computer can be used with any of the software packages used with WINDOWS.
Page 103: Technical Data Of The Do9847 Multifunction Instrument
TECHNICAL DATA OF THE DO9847 MULTIFUNCTION INSTRUMENT Housing Dimensions (Length x Width x Height 245x100x50mm Weight 300g (complete with batteries) Materials ABS, rubber Display graphic 56x38mm (128x64 pixel) EMC Standards Degree of protection IP64 Safety EN61000-4-2, EN61010-1 level 3 Electrostatic discharges EN61000-4-2 level 3 Fast electric transients EN61000-4-4 level 3,...
Page 104: Technical Data Of The Modules Combined With The Instrument
Stop bits Flow control Xon/Xoff Cable length Max 15m Immediate printing interval 1s … 3600s (1 hour) 5s … 3600s (1 hour) with baud rate = 300 Connections Module input for probes DIN45326 8-pole connector Serial interface DB9 connector (male 9- pole) Mains adapter 2-pole connector (positive in the middle) Updatable through the serial port...
Page 105 Thermocouple J ±0.05°C up to 400°C ±0.1°C beyond 400°C Thermocouple T ±0.1°C Thermocouple E ±0.05°C up to 300°C ±0.08°C beyond 300°C Thermocouple R ±0.25°C Thermocouple S ±0.3°C Thermocouple B ±0.35°C Thermocouple N ±0.1°C up to 600°C ±0.2°C beyond 600°C Accuracy refers to the instrument combined to the module; it does not include the er- ror due to the thermocouple and to the reference sensor of the cold junction.
Page 106 Measuring pressure (module PP471) All the Delta Ohm TP704 and TP705 series pressure probes can be connected. See the table below for the technical specifications related to the probes. Technical data of the module ±0.05% of full scale Accuracy ≥ 5ms Peak time ±0.5% full scale...
Page 107 Measurement of Differential Pressure (PP473 S1,…, PP473 S8 Module) Measuring Range 10mbar (S1), 20mbar (S2), 50mbar (S3), 100mbar (S4),200mbar (S5), 500mbar (S6), 1bar (S7), 2bar (S8) Max. Overpressure 200mbar (S1, S2, S3), 300mbar (S4), 1bar (S5, S6), 3bar (S7) e 6bar (S8) Accuracy @ 25°C ±0.5% f.s.
Page 108: Order Codes
ORDER CODES The kit is composed of the multifunction instrument, 4 alkaline batteries 1.5V DO9847K each, instructions manual and carrying case. Any modules, probes, softwares and connection cables for serial output must be ordered separately. sub D 9-pole female/female connecting cable for RS232C (null modem) 9CPRS232 SICRAM Modules to Measure Temperature for DO9847 Multifunction Instrument SICRAM electronic module for PRT sensors without probe .
Page 109 SICRAM electronic module for thermocouple sensors type K-J-E-T-N-R-S-B TP471D1 with MIGNON connector with 2 inputs. To the module with two inputs, the user can connect 2 thermocouples of the same type K-J-E-T-N-R-S-B , even though of different shapes; it is possible to calibrate the complete probe of the SICRAM module, the calibration data remain in the memory.
Page 110 Combined RH% and temperature probe. Grip dimensions Ø 26x130 mm, probe HP473AC Ø 14x120 mm. Field of use: -20°C…80°C, 5…98% RH. Accuracy in RH%: ±2% Accuracy in °C: ±0.30°C Combined RH% and temperature probe. Grip dimensions Ø 26x130 mm, probe HP474AC Ø...
Page 111 SICRAM electronic module for absolute, relative and differential pressure PP471 measurement. All the TP704 and TP705 series Delta Ohm pressure probes can be connected. It measures the instantaneous and peak pressure value. The module is complete with 2m cable and 8 pole DIN 45326 female connector.
Page 112 Probes Equipped with SICRAM Modules for Measurements of Air Velocity (to be Connected to DO9847 Multifunction Instrument) Hotwire probe provided with a SICRAM module to measure air velocity, cal- AP471 S1 culated flow and temperature. Velocity from 0.05 to 40m/s, temperature com- pensation from 0 to 80°C, temperature from –30 to 110°C.
Page 113 equipped with handle; telescopic shaft on request. Minimum length with han- dle L=360mm, maximum length L=1025mm. 2m cable. AP472 S4H Vane probe equipped with SICRAM module to measure air velocity and calcu- lated flow. Vane diameter: 16mm. Velocity from 10 to 50m/s. Probe is equipped with handle;...
Page 114 Extension with male-female standard miniature connectors to connect the Pitot tube's thermocouple K to the instrument, length 2m. AP473 S… modules can be accompanied by T1-…, T2-…, T3-… and T4-… Pitot tubes (see page 63) SICRAM modules for measurements of continuous voltage and continuous current for the DO9847 multifunction instrument SICRAM electronic module for reading continuous voltages.
Page 115 260 nm, quartz diffuser for cosine correction. Measuring range: 0.1⋅10 …2000 W/m LP 471 LUM 2 Photometric probe for measuring LUMINANCE, equipped with SICRAM module, spectral response following standard photopic vision, field of view 2°. Measuring range: 0.1 cd/m …2000⋅10 cd/m...
Page 116: Appendix
APPENDIX Pt100 SENSOR The temperature response of the sensor used in the family of platinum probes (type Pt100) is de- scribed by means of the of Callendar Van Dusen formula (1). • − < 0°C • ≥ 0°C The coefficient C is considered equal to 0 for temperatures above zero. To find the value of the coefficients of equation (1) it is necessary to calibrate the probe on at least three different points: once they are known, these coefficients are inserted in the regression formula (2) to determine the temperature with relation to the resistance value of the sensor.
Page 117 for which the following relationships apply: α − • 00385055 δ − 499785 β − 10863 In (5), α coincides with the one defined in standard EN60751: it can be determined with a calibra- tion operation on only two points. Given the sensor resistance, the temperature is obtained with the regression formula (6): −...
Page 118: Table Of Contents
SUMMARY INTRODUCTION ................................4 KEYBOARD DESCRIPTION............................5 Use of the <Hold> key .............................. 12 Use of the <REL> key .............................. 13 Xsel, Ysel and Zsel commands ............................. 14 DESCRIPTION OF THE MENU FUNCTIONS ......................15 0) Info (Information) ..............................15 1) Config (Configurations) ............................
Page 119 Discomfort Index (DI) ............................42 Net Index NI ................................. 42 PP471 electronic module for pressure measurement ....................43 Relative measure ............................... 44 PP472 Electronic Module for Barometric Pressure Measurement ................45 PP473 Electronic Module for the Measurement of Differential Pressure ..............46 AP471…, AP472…...
Page 120 The Record function ..............................86 The Logging function ..............................88 The Screen function ..............................90 The RCD+ function ..............................91 The ALL function ................................92 INSTRUCTIONS FOR CONNECTING THE DO9847 TO A PC WITH WINDOWS OPERATING SYSTEM ..................................94 Hardware connection ..............................94 Software connection with WINDOWS 95, 98, NT, ME, 2000 and Xp ................
Page 121 CERTIFICATO DI CONFORMITÀ DEL COSTRUTTORE MANUFACTURER’S CERTIFICATE OF CONFORMITY rilasciato da issued by DELTA OHM SRL STRUMENTI DI MISURA DATA 2009/06/17 DATE Si certifica che gli strumenti sotto riportati hanno superato positivamente tutti i test di produzione e sono conformi alle specifiche, valide alla data del test, riportate nel- la documentazione tecnica.
Page 122 All DELTA OHM instruments have been subjected to strict tests and are guaranteed for 24 months from date of purchase. DELTA OHM will repair or replace free of charge any parts which it considers to be inef- ficient within the guarantee period. Complete replacement is excluded and no request of damages are rec- ognized.

This manual is also suitable for:

Do9847

Delta OHM DO 9847K Manual

Introduction

Keyboard Description

Description of the Menu Functions

1 Config (Configurations)

2 Logging

3 Time/Date

4 Serial (Digital Communication)

5 Calibrate

6 Reset

7 Utility (Instruments)

8 Options

The Probes

Updating Firmware

Method of Using the Instrument and Warnings

Instrument Signals and Malfunctions

Low Battery Warning and Battery Replacement

Storage of the Instrument

Serial Interface Rs232C

The Functions of Storing and Transferring Data to Apersonal Computer

Instructions for Connecting the Do9847 to a Pc with Windows Operating System

Technical Data of the Do9847 Multifunction Instrument

Order Codes

Appendix

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta OHM DO 9847K

Summary of Contents for Delta OHM DO 9847K

This manual is also suitable for:

Table of Contents
