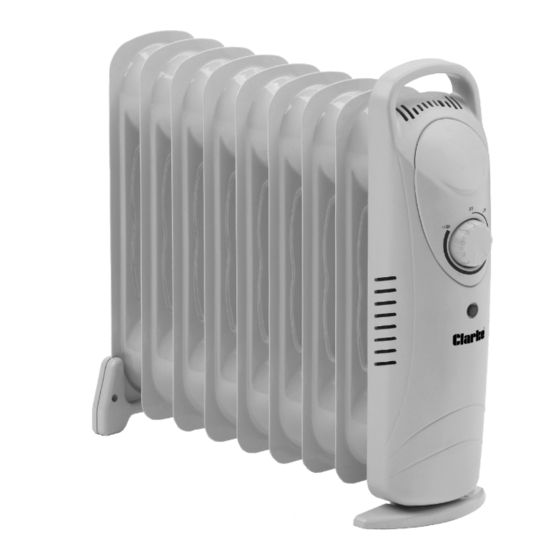

Only suitable for well insulated areas and not designed to be the primary heat source 900W OIL FILLED RADIATOR MODEL NO: OFR 9/90 PART NO: 6934003 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL1123 - ISS7...
INTRODUCTION Thank you for purchasing this CLARKE 900W oil filled radiator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
Page 3
THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency n/a % Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only...
SAFETY ADVICE Make sure that you read, understand and comply with the following. The following symbols appear on the unit. Hot surface, Do not Read the - do not cover manual touch GENERAL SAFETY 1. Read these instructions carefully before using the radiator. 2.
Page 5
13. Position the radiator in such a manner that the air flow toward the radiator and away from it is not obstructed. 14. The radiator must NOT be covered. 15. Allow a safe area around the radiator away from furniture or other objects; at least 1m from the top and sides and front.
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz.
OPERATION • Do not operate the radiator unless it is placed in an upright position. • Select an indoor location for the radiator away from electrical cables, drapes and other furnishings. • DO NOT place radiator directly beneath an electrical outlet or against paper board or low density fibreboard.
The safety device supplied must never be replaced by anyone other than an approved service agent. SPECIFICATION Model Number OFR 9/90 Operating Voltage and Frequency 230 V @ 50 Hz Input Power 900 W Number of segments IP Rating:...
MAINTENANCE CLEANING The oil filled radiator requires regular cleaning to ensure trouble free operation: 1. DO NOT stand on or drop the heater and treat it carefully at all times. 2. Always turn off and unplug the oil filled radiator from the mains supply and alow it to cool before cleaning.
Page 10
DECLARATION OF CONFORMITY - UKCA Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
