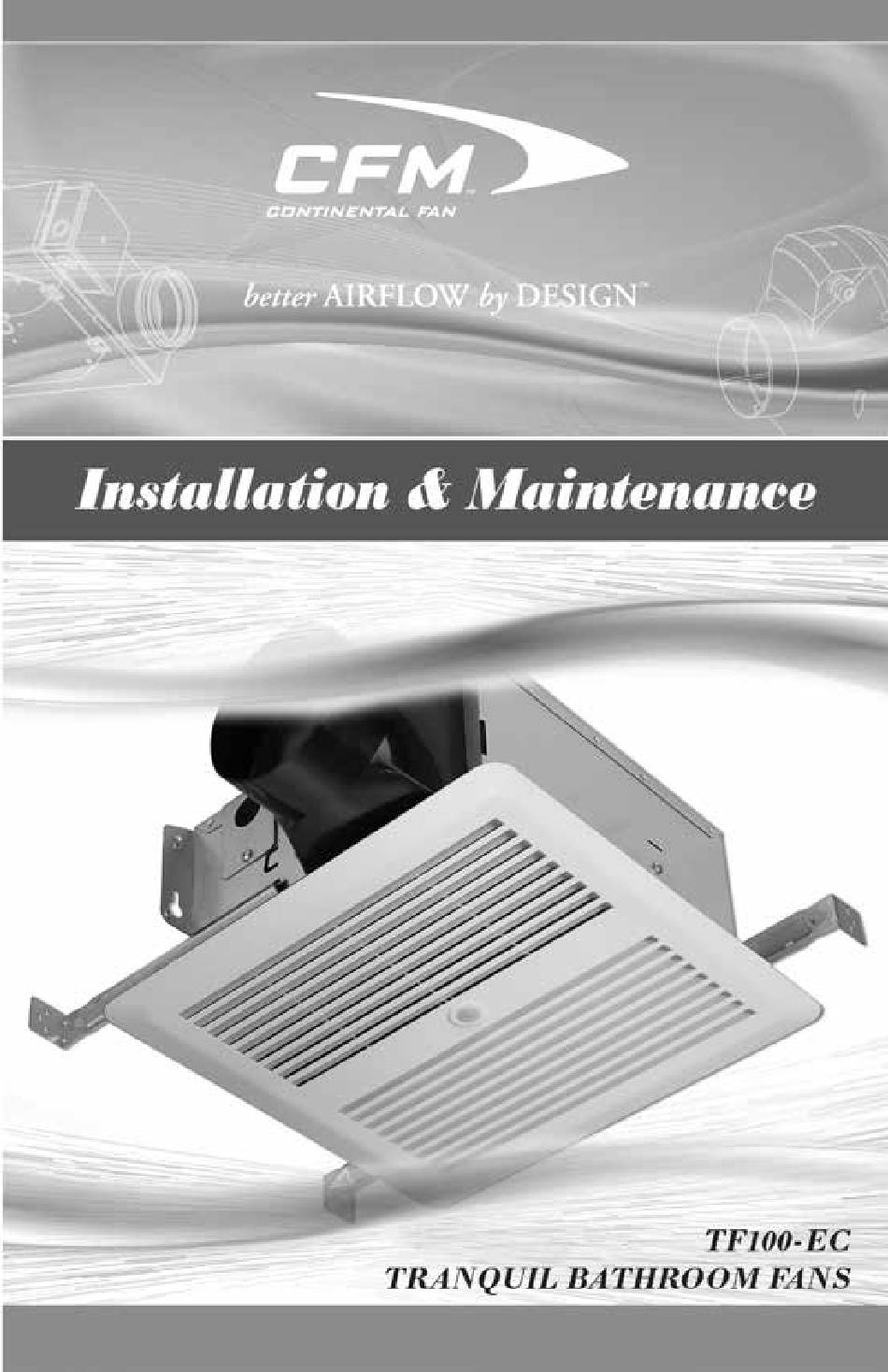

- Page 1 READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Safety Instructions

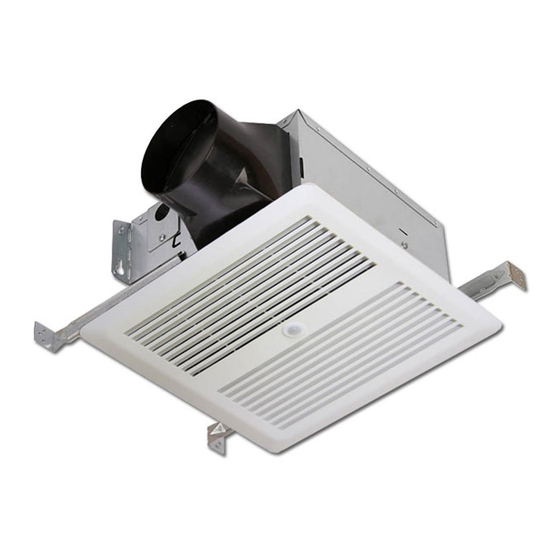

6. Ducted fans must always be vented to the outdoors. 7. TF100-EC fan is suitable for installation over a shower or tub when connected to a GFCI (Ground Fault Circuit Interrupter) protected branch circuit. 8. This unit must be grounded. - Page 3 TF100-EC TRANQUIL BATHROOM FANS MODEL: TF100-EC The delivery set includes: • Housing • Mounting hardware • Duct assembly • Blower assembly • Grille • Power box knobs TWO WAYS TO CONNECT DUCTWORK TO A UNIT *NOT INCLUDED WITH FAN Insulation* (place around and over fan housing) Power cable*...
-
Page 4: Fan Installation
FAN INSTALLATION WARNING Disconnect and lock out power supply before performing any installation work. Working on or near energized equipment could result in death or serious injury. Remove wire panel (retrofit only) and blower assembly before installation (Figure 1). STEP 1. INSTALL HOUSING (New Construction or Retrofit) New Construction (A or B) A) Fasten to joist or I-joist Position the housing so that the housing contacts the bottom of the joist. - Page 5 FAN INSTALLATION Blower Assembly Wire Panel Figure 1 Figure 2 Figure 3 9-1/2” 9-1/2” Additional Figure 4 Figure 5 Figure 6 Mounting Holes Figure 7 Figure 8 Figure 9 Hole Hole Hole Figure 10 Figure 11 Figure 12...
-
Page 6: Wiring Diagram
(factory set to Power Toggle Switch 100 cfm). To select the desired maximum airflow (50, 80 or 100 cfm), set toggle switch 1 & 2 according to one of three switch positions in the table. Humidity 30 cfm... -
Page 7: Fan Operation
20 minutes after the last detection of motion. After that, the fan will switch to the pre-set low airflow rate (if above 30 cfm) or stop (if OFF or below 30 cfm). Turning OFF Switch I will stop the fan from any operating situations above. -
Page 8: Troubleshooting
Vacuum the interior of the unit. Reconnect the grille to the fan. Turn power supply on. ACCEPTANCE CERTIFICATE The TF100-EC fan has been duly certified as serviceable. Manufactured on (date): Date of sale: Sold by: (name of trading enterprise, stamp of store)
