Simplex IDNet 4009 Installation Instructions Manual page 6

4009 IDNet NAC Extender,
TB1, TB2
HARDWIRED NAC
(NAC 1-4)
P1 AND P2
CLASS A ADAPTER
INTERFACE
LED(s) 1-4
NAC STATUS
INDICATORS
TB6
AUXILARY POWER
OUTPUT
(1 AMP AVAILABLE)
TB5
NAC CONTROL
INTERFACE
(HOST NAC IN)
CHARGER
(SEE NOTE)
NOTE: BROWNOUT AND CHARGER ARE FACTORY ADJUSTMENTS, DO NOT MAKE FIELD ADJUSTMENTS ON THESE COMPONENTS.
System Switches and
Indicators, continued
Continued
SW1
HARDWARE CONFIGURATION
DIP SWITCH
P8 (ORANGE WIRE)
P7 SIGNAL POWER TO
P9 (YELLOW WIRE)
NAC OPTION CARD
CHARGER INPUTS
FROM TRANSF0RMER

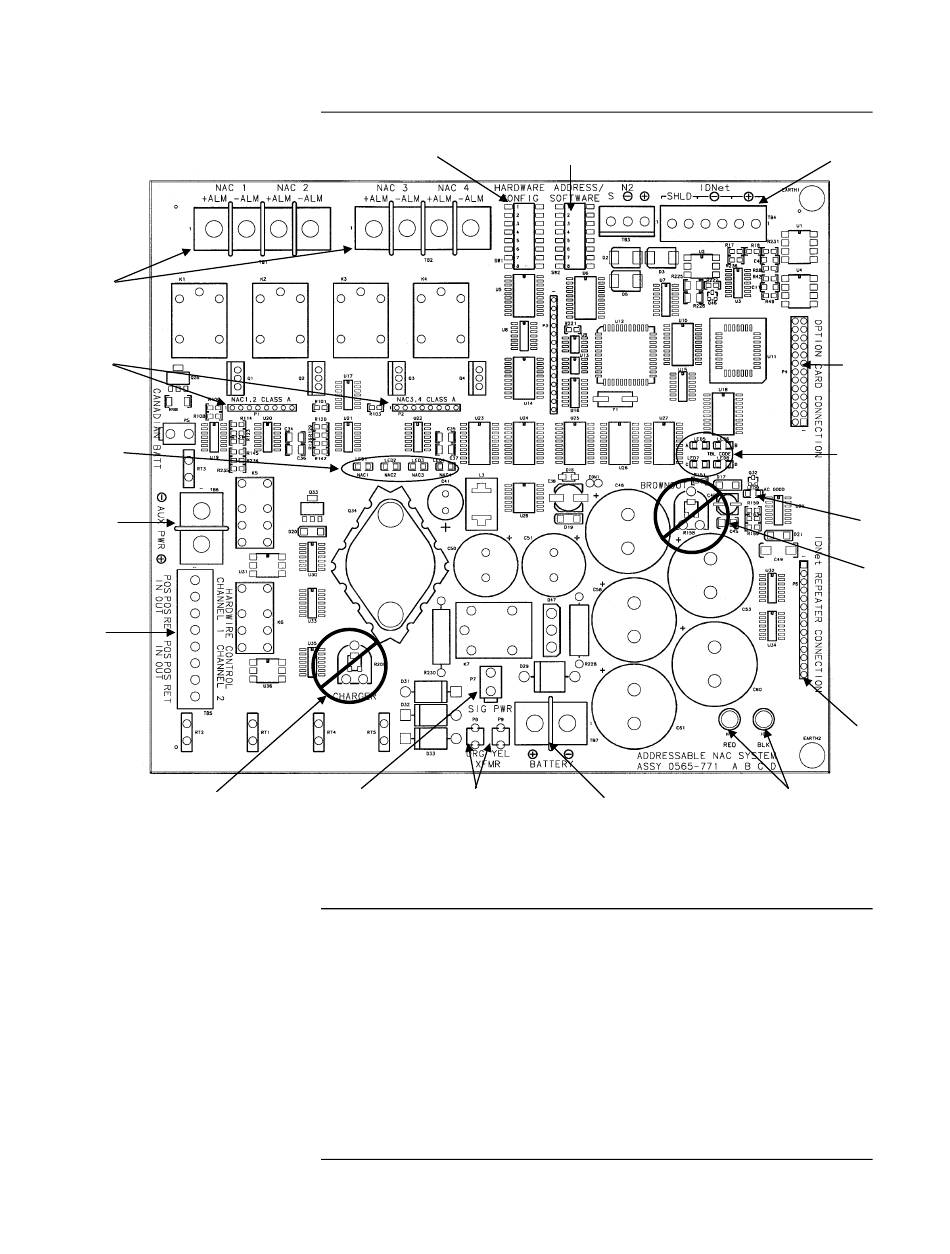

Figure 4. 4009 IDNet System Board
Software Address/Configuration DIP Switch SW2
The Software Address/Configuration Switch (SW2) is an 8-position DIP switch.
The Software Configuration/Address Switch is located at the top edge of the
system board. When the 4009 IDNet is operating as a addressable IDNet
peripheral, this switch sets the IDNet address to which the 4009 IDNet responds.
Each 4009 IDNet has a unique address (1 through 250). The address of the 4009
IDNet is set via the eight-position dip switch SW2, DIP switch position 1 is the
least significant bit (LSB) and position 8 is the most significant bit (MSB). Set
the 4009 IDNet address using Figure 5 as reference. Use a small screwdriver or
pen to set the switches.
SW2 SOFTWARE
ADDRESS/CONFIGURATION
DIPSWITCH
TB7
BATTERY TERMINAL
6
TB4
IDNet CONTROL INTERFACE
P4
4-CIRCUIT NAC
OPTION CARD
INTERFACE
LED(s) 5-8
SYSTEM TROUBLE
INDICATORS
AC POWER
INDICATOR
BROWNOUT
ADJUSTMENT
(SEE NOTE)
IDNet REPEATER
CARD or FIBER
RECEIVER CARD
H1 (RED WIRE), H2 (BLACK WIRE)
MAIN POWER INPUTS FROM
BRIDGE RECTIFIER
Continued on next page
LED 9
P6
