System Installation,
System Power Requirements
Continued
Model 4009-9201 NAC (120VAC System)
AC Input - 120VAC, 3 amperes, 60Hz
Battery Input - 24VDC, 8 amperes
Notification Appliance Power Output - 24VDC, 8 amperes
Model 4009-9301 NAC (220/240 System)
AC Input - 220/240VAC, 1.5 amperes, 50/60Hz
Battery Input - 24VDC, 8 amperes
Notification Appliance Power Output - 24VDC, 8 amperes
Notes:
1.
Refer to 842-068 Field Wiring Diagram for detailed information on 4009 IDNet System
Wiring Configurations.
2.
External Battery requires splicing into existing Battery harness (733-945), see Note 1.

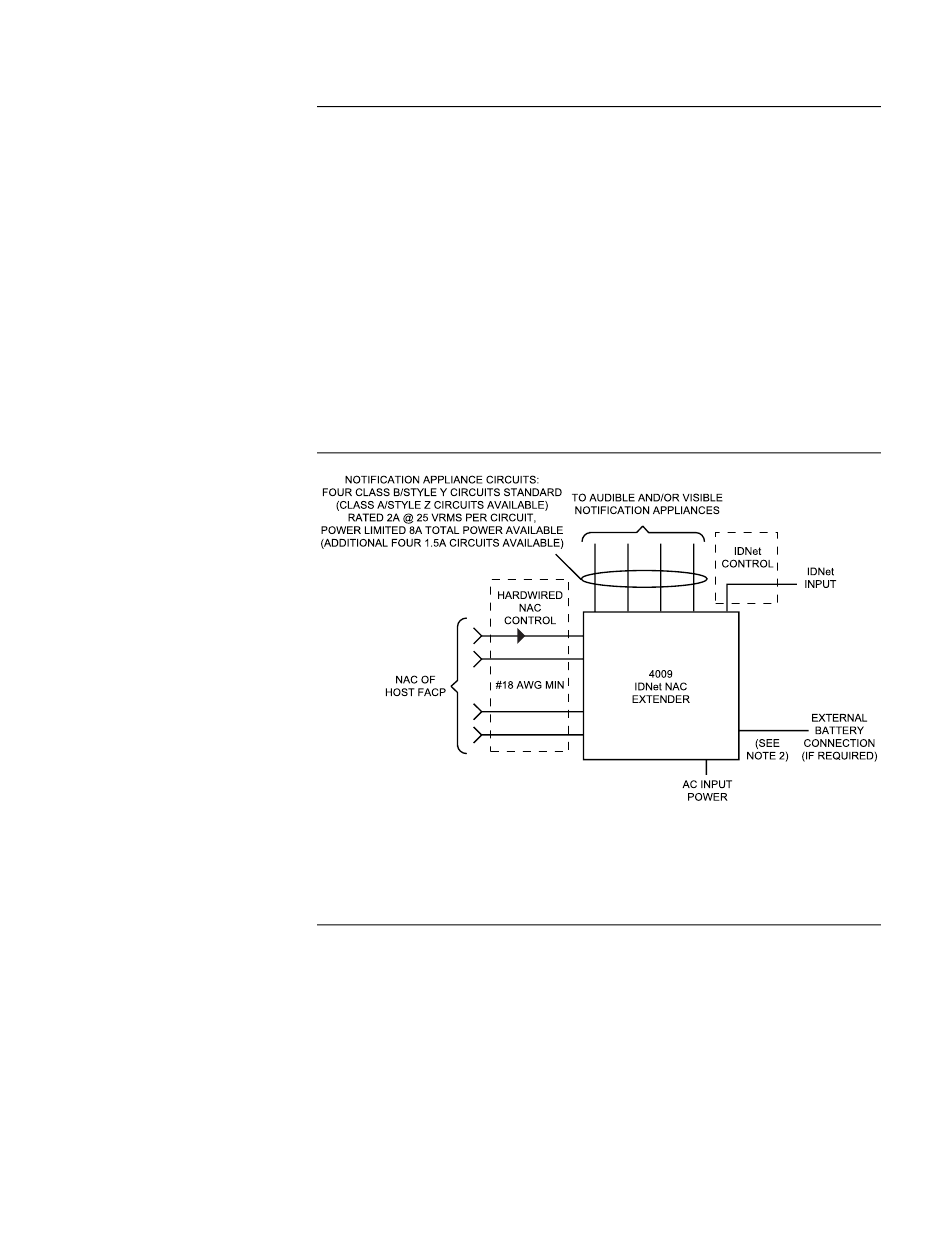

Figure 7. 4009 IDNet NAC Extender Connection Diagram
14
Continued on next page
