Suction Pump and Controller Card
Remove the Suction Pump Controller Card
Disconnect the controller card from the ultrasonics board at J15:
1.
Table 11-6.
The suction pump controller card
Connector
Wire Color
cable to the ultrasonics PCB
4-pin
red, black, orange, brown
> πο.
nico
The cables in the cable clamps
2.
Remove the two cable clamps on the bottom of the controller card
sometimes tangle. When you pull
bracket, then separate the controller card cable from other cables in the
the controller card cable away
clamps.
from the console, be careful to
3.
Remove the suction pump controller card from the motor control
avoid pulling other cables with it.
bracket by removing four screws (M4 Phillips), four lock washers
(M4), and four flat washers (M4).

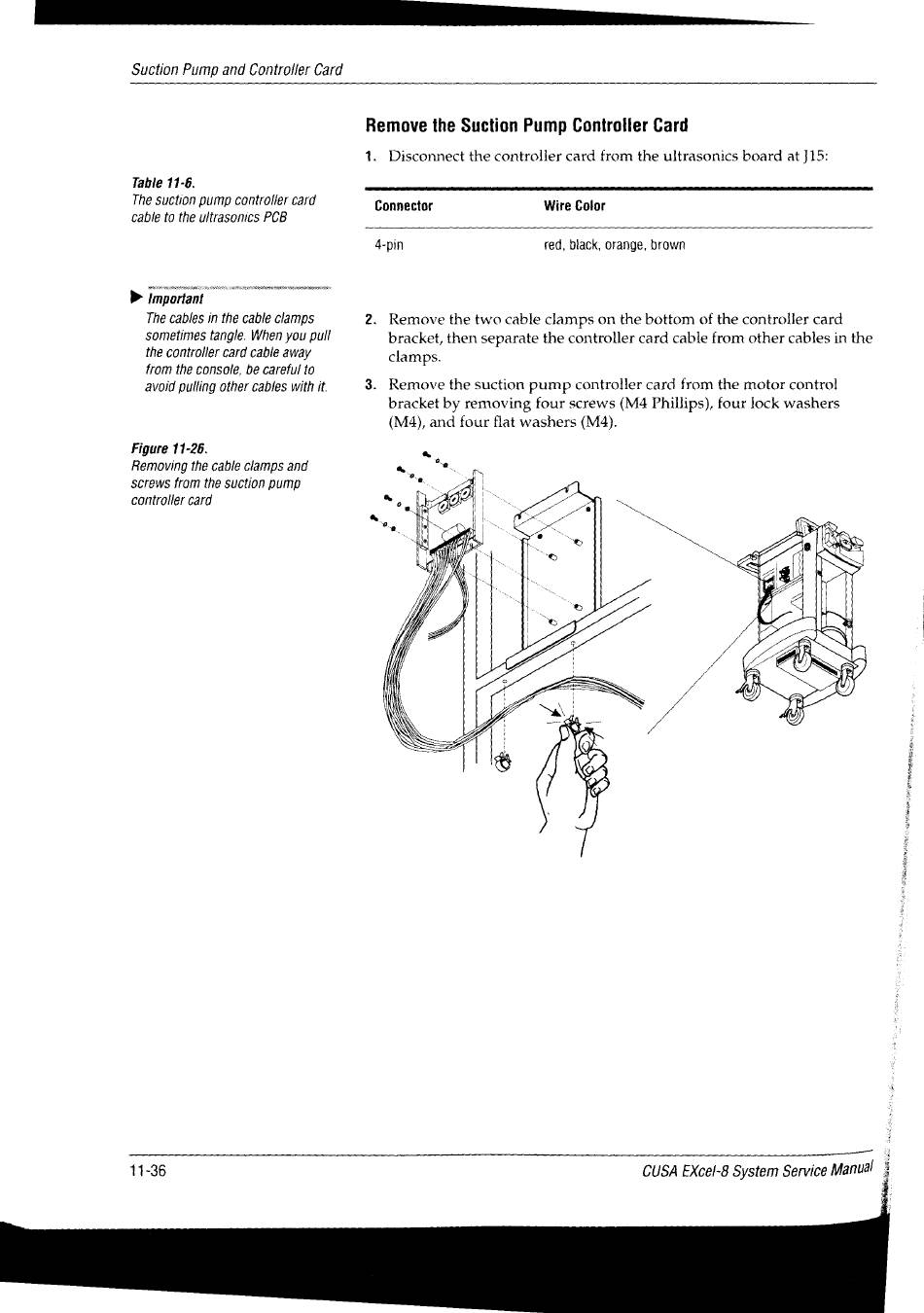

Figure 11-26.
Removing the cable clamps and
screws from the suction pump
controller card
é
3
A
11-36
CUSA EXcel-8 System Service Manual 3
