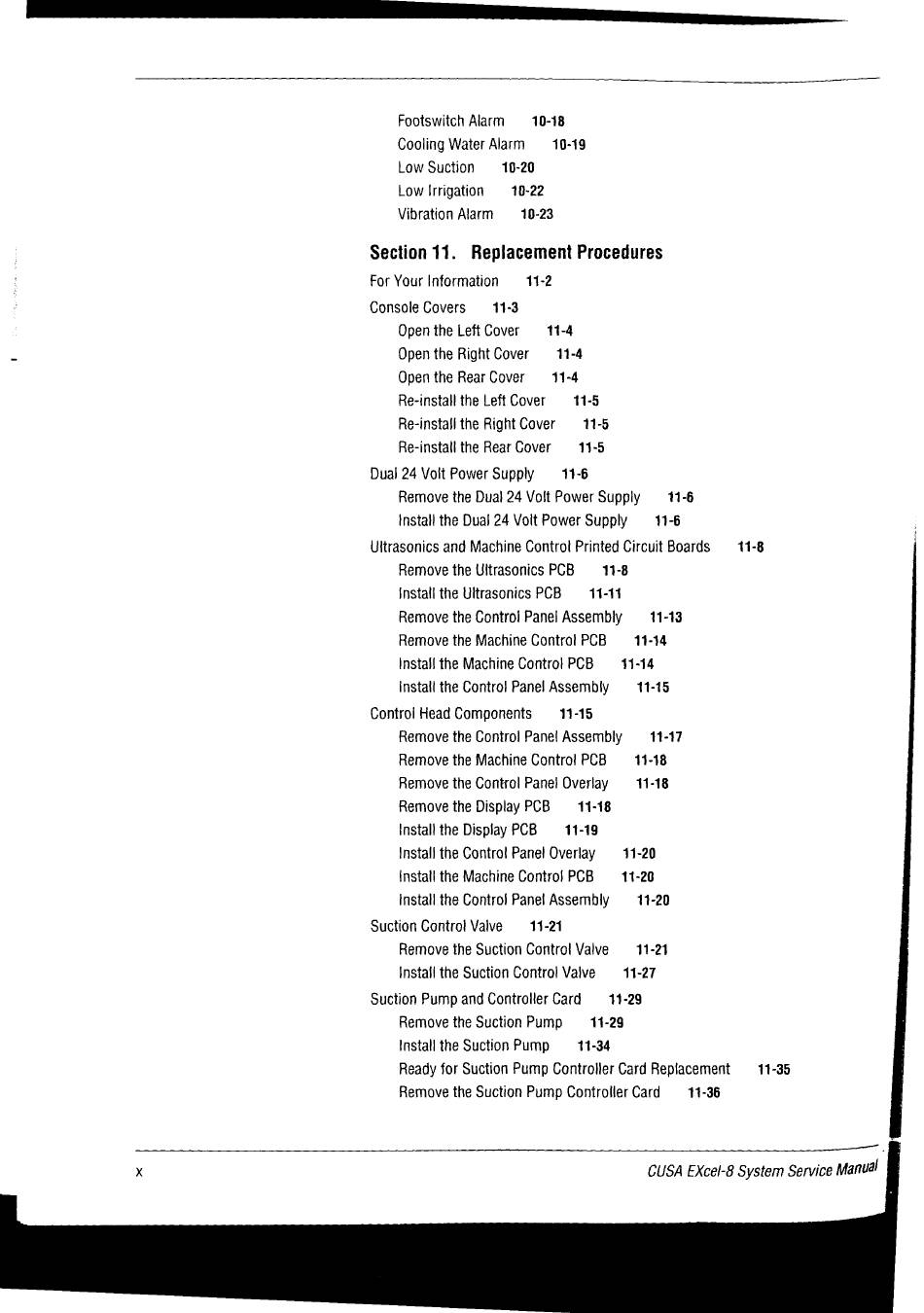

Valleylab CUSA EXcel-8 Service Manual page 10

Footswitch Alarm 10-18
Cooling Water Alarm 10-19
Low Suction 10-20
Low irrigation 10-22
Vibration Alarm 10-23
Section 11. Replacement Procedures
For Your Information 11-2
Console Cavers 11-3
Open the Left Cover 11-4
- Open the Right Cover 11-4
Open the Rear Cover 11-4
Re-install the Left Cover 11-5
Re-install the Right Cover 11-5
Re-install the Rear Cover 11-5
Dual 24 Volt Power Supply 11-6
Remove the Dual 24 Volt Power Supply 11-6
Install the Dual 24 Volt Power Supply 11-6
Ultrasonics and Machine Control Printed Circuit Boards 11-8
Remove the Ultrasonics PCB 11-8
install the Ultrasonics PCB 11-11
Remove the Control Panel Assembly 11-13
Remove the Machine Control PCB 11-14
Install the Machine Control PCB 11-14
install the Control Panel Assembly 11-15
Control Head Components 11-15
Remove the Control Panel Assembly 11-17
Remove the Machine Control PCB 11-18
Remove the Control Panel Overlay 11-18
Remove the Display PCB 11-18
install the Display PCB 11-19
Install the Control Panel Overlay 11-20
install the Machine Control PCB o 11-20
Install the Control Panel Assembly 11-20
Suction Control Valve 11-21
Remove the Suction Control Valve 11-21
Install the Suction Control Valve 11-27
Suction Pump and Controller Card 11-29
Remove the Suction Pump 11-29
Install the Suction Pump - 11-34
Ready for Suction Pump Controller Card Replacement 11-35
Remove the Suction Pump Controller Card 11-36
