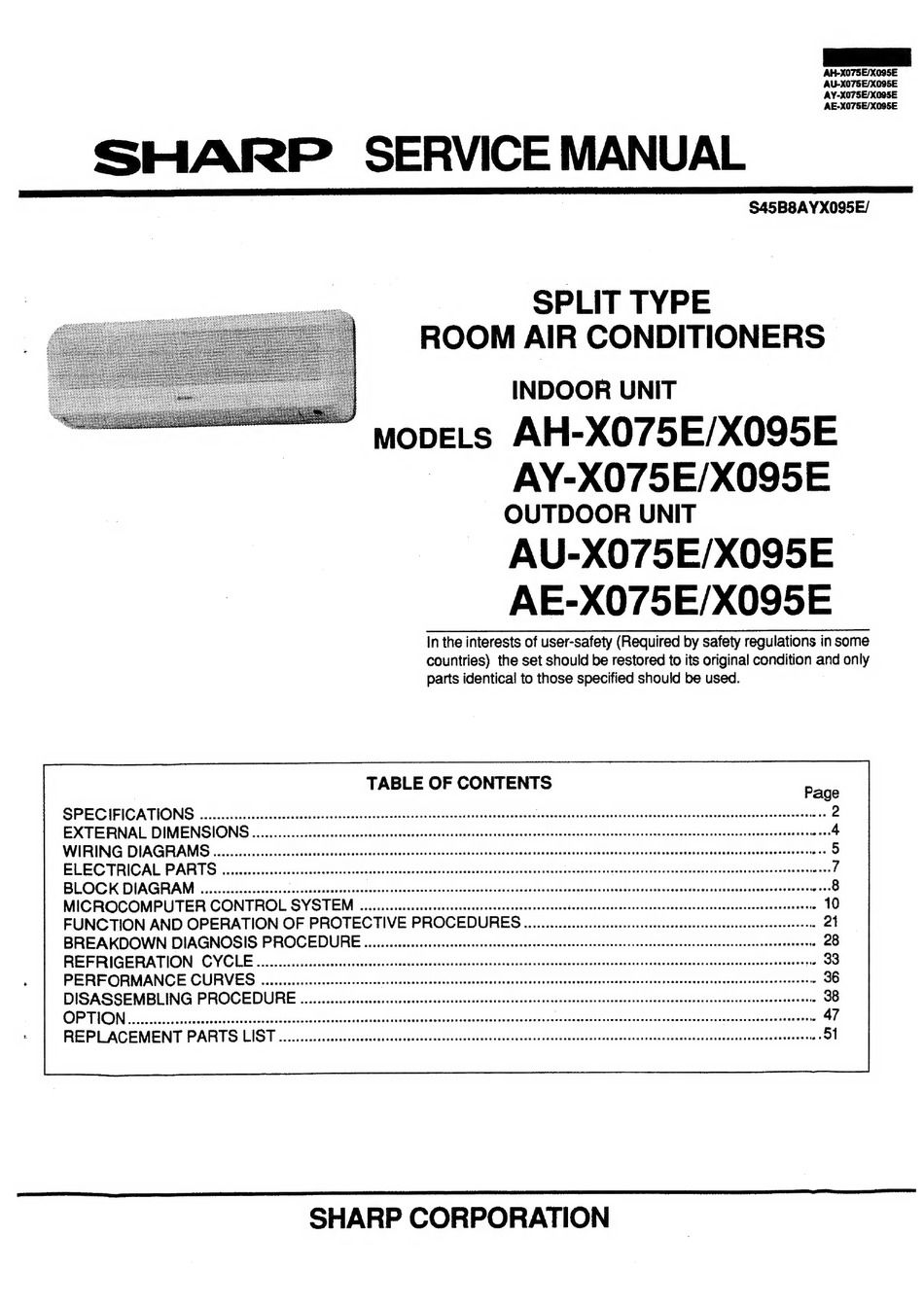

Sharp AH-X075E Service Manual

AH-X075E/X095E
AE-X075E/X095E
S45B8AYX095E/
SPLIT TYPE
ROOM AIR CONDITIONERS
INDOOR UNIT
movELs AH-X075E/X095E
AY-X075E/X095E
OUTDOOR UNIT
AU-X075E/X095E
AE-X075E/X095E
In the interests of user-safety (Required by safety regulations in some
countries) the set should be restored to its original condition and only
parts identical to those specified should be used.
TABLE OF CONTENTS
SPECIFICATIONS
EXTERNAL DIMENSIONS
WIRING DIAGRAMS
ELECTRICAL PARTS
BLOCK DIAGRAM
MICROCOMPUTER CONTROL SYSTEM
FUNCTION AND OPERATION OF PROTECTIVE PROCEDURES
BREAKDOWN DIAGNOSIS PROCEDURE
REFRIGERATION CYCLE
PERFORMANCE CURVES
DISASSEMBLING PROCEDURE
REPIZACEMENT PAR To LIST eciptssts exscxsesactsnscustedecdav ec ttovisacnsuatboumpansicaoseustactanasieiGanseakcus audineabassunionts iebtaatuaetle reas .51
