4 Prepare and Install Drawer Panel
(Overlay Units Only)
Two types of custom drawer panels can be installed on
your Overlay unit to harmonize with or accent the
surrounding décor: Custom 1/4" Inserts or Full Overlays.
Overlay units may also be installed with no custom drawer
panel.

No Custom Drawer Panels

When full overlay drawer panels are not used,
replacement handles (part number 26070-01) MUST be
installed on each drawer. To replace the handle when no
custom panel will be installed, follow the instructions
under Custom 1/4" Drawer Panel Inserts, Door Panel
Installation below, disregarding Steps 4 and 5.

Custom 1/4" Drawer Panel Inserts

Drawer Panel Preparation
Custom drawer panels can be inserted into the drawer
fronts. Custom drawer panels can be flat or raised, as long
as the maximum panel thickness where inserted into the
drawer front reveal (channel) is 1/4"-thick. For raised
panels, the depth of the reveal is 1/4" on all four sides.
IMPORTANT
Raised panels will reduce the drawer's front clearance if
the unit is installed facing an appliance or structure (see
Page 5).
Cut the panel inserts to the following dimensions.
Custom 1/4" Dimensions:
Width: 23-1/32"
Height: 12-15/32"
The door panels must not have a total weight of more
than 20 lbs.
09/2007
C2275DWR — Ice Maker/Refrigerator
Drawer Panel Installation
Install the insert as follows:
Use care when handling the insert. Insert edges may be
sharp.
1. Open drawer. Pull drawer
gasket out of groove (top
edge of drawer only).
Start in the middle and
pull outward, moving
toward the edge (see
Figure 5). This may take
some force.
2. Remove and save the two
outside screws (see Figure
6).
3. Remove the original
handle and discard.
4. Remove and discard
existing panel and
cardboard spacer.
5. Slide custom drawer
panel insert into 1/4-inch
channel in drawer front.
6. Holding drawer gasket out
of the way, replace handle
on drawer, making sure it
is seated properly on insert
and that screw holes line
up.
7. Install two small screws
removed in Step 2.
8. Starting at the corners and
working inward, push
drawer gasket into place
on drawer. Go on to
5 Adjust Drawers.
7
CAUTION
Handle
Screw
Gasket

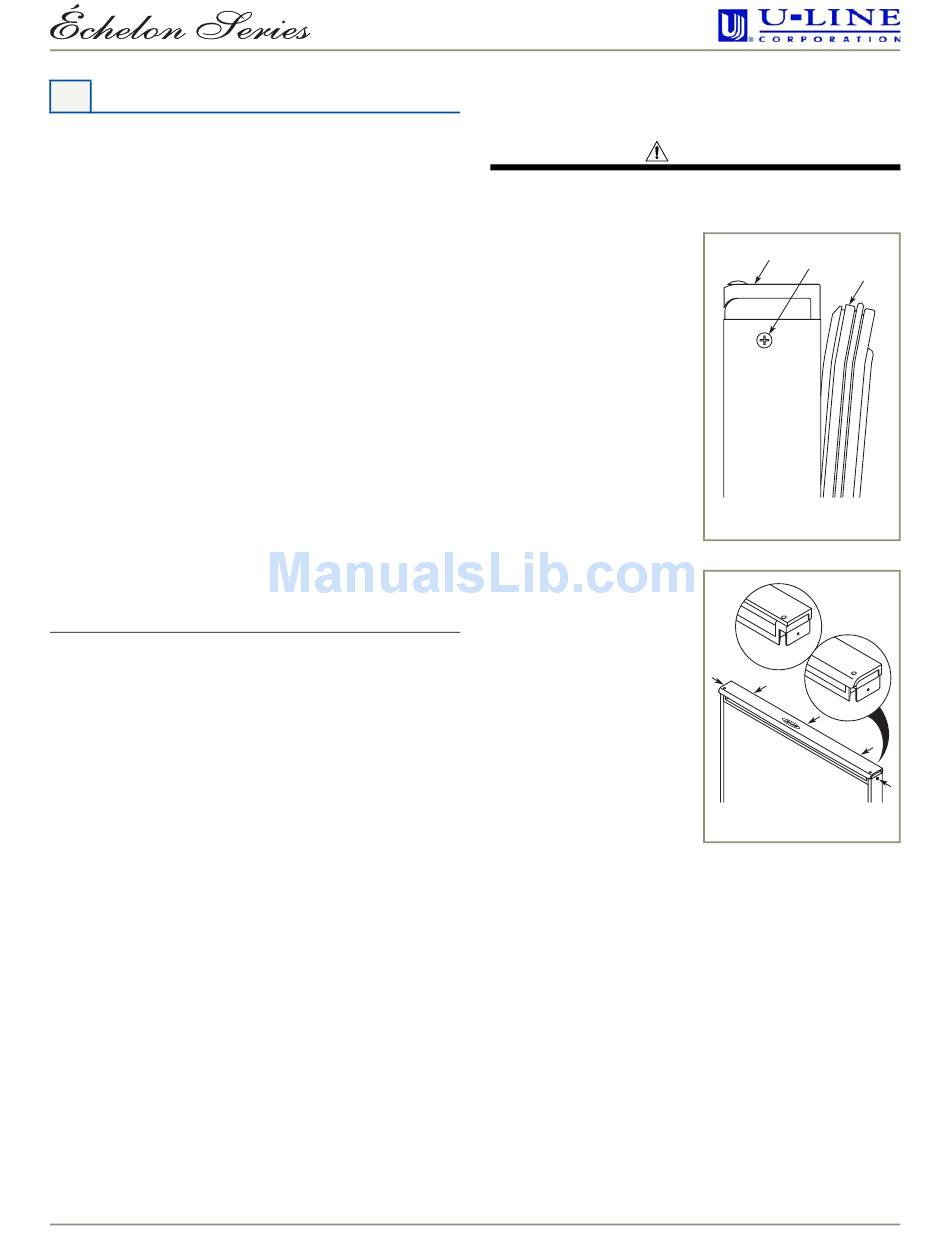

Figure 5
Standard
Handle
Full Handle
Figure 6
