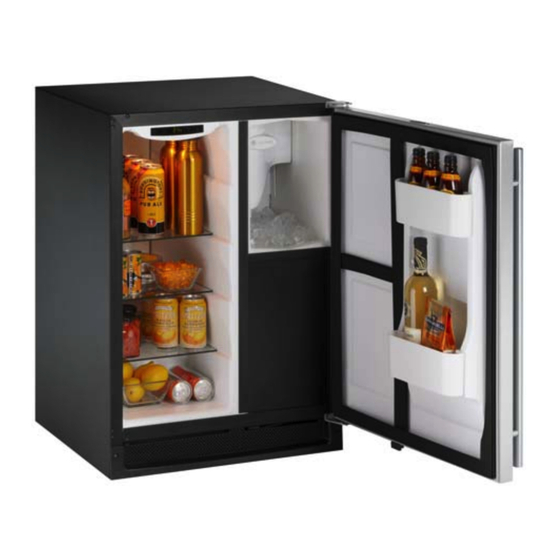

- Page 1 ® INSTALL GUIDE CLEAR ICE MODELS CLEAR ICE COMBO MODELS ICE COMBO MODELS CO2175 CLRCO2175 CO29 CO1175 CLR2160 The Built-In Undercounter Leader Since 1962 U-LINE.COM...
-
Page 2: Table Of Contents
Door Panel Installation ... 10 Prepare Power Supply Electrical Specifications ...11 Receptacle Location ...11 Prepare Plumbing Water Supply Connection ...12 Drain Connection (CLR2160 CLRCO2175) ...12 Gravity Drain ... 12 Factory-Installed Drain Pump... 13 Locally-Installed Drain Pump... 14 Final Water Connection:...14 Level The Unit Leveling Information...15... -
Page 3: Safety Precautions
2 Safety Precautions IMPORTANT IMPORTANT • PLEASE READ all instructions before installing, operating, or servicing the appliance. • Proper installation procedures must be followed when completing an installation or relocation of a unit. Consult the installation guide before any installation begins. -
Page 4: Inspect & Plan
3 Inspect & Plan Product Registration You have received a carton containing your U-Line Clear Ice, Ice or Ice Combo unit with a package inside containing a Use and Care Guide, a Product Registration Card, and a water line kit. Please complete and mail the Product Registration Card or register online at www.U-LineService.com. -
Page 5: Prepare Site
35-1/8" 8" 24-1/4" Follow the cut-out drawing. The 24-1/4" width allows 1/4" for ease in installation and removal of the unit. 24" is the cabinet depth in most installations. CLR2160 Series See Electrical Specifications for Power Supply 34-1/4" 35-1/8" 8"... -
Page 6: Product Dimensions
5 Product Dimensions CLR2160 Series 23-1/4" * 34-3/16" 3-15/16” 15" Black and White *Add 3/4” To Depth For Drain Line Clearance 23-1/4” * 34-3/16" 3-7/8” 15" Stainless Steel *Add 3/4” To Depth For Drain Line Clearance CO1175 Series 23-5/16" * 34-3/16"... -
Page 7: Door Swing Dimensions
U-Line (Part No. WATERHOOKUP). Wall 2" Min. Drain The CLR2160 & CLRCO2175 require access to either a gravity or 20-7/8" pump fed drain. Environmental Requirements The units are designed to operate between 50°F (10°C) and 100°F (37°C). -
Page 8: Standard Doors
7 Standard Doors Door Alignment and Adjustment Align and adjust the door if it is not level, or is not sealing properly. If the door is not sealed the unit may not cool properly, or excessive frost may form in the interior. IMPORTANT IMPORTANT Properly aligned, the door’s gasket should be firmly in... - Page 9 Install bottom hinge: 1. If you have a plate hinge, reorient the pivot screw so it protrudes the opposite direction form the hinge. Remove the pivot screw from the hinge. Turn the plate over and reinstall the screw. 2. Align hinge outer edge with cabinet. For models with a plate hinge, the flat edge of the hinge alignes with the outer edge of the cabinet.
-
Page 10: Self-Closing Doors
8 Self-Closing Doors Door Alignment and Adjustment Align and adjust the door if it is not level, or is not sealing properly. If the door is not sealed the unit may not cool properly, or excessive frost may form in the interior. IMPORTANT IMPORTANT •... - Page 11 To reverse the door: Remove door: 1. Hold door to keep it from falling. 2. Remove hinge screw pin (1) from top hinge using a Phillips screwdriver. 3. Remove door by tilting forward and lifting door off bottom hinge closer inserts. 4.
-
Page 12: Door Panel Installation Custom 1/4'' Thick Door Panel Insert
Panel Dimensions. The door panel must not weigh more than 20 lbs. Model Width CLRCO2175 23 1/32” CLR2160 14 1/32” CO1175 22 15/16” CO29 19 13/16” CO2175 23 1/32”... -
Page 13: Prepare Power Supply Electrical Specifications
GFCI could be prone to nuisance tripping. However, be sure to consult your local codes. See below for recommended receptacle location CLR2160 & CLRCO2175 Preferred Location Acceptable for CLR2160... -
Page 14: Prepare Plumbing
McMaster-Carr. (McMaster-Carr # 52375K35) The CLR2160 or CLRCO2175 can be installed using a Gravity Drain, a Factory-Installed Drain Pump (U-Line P60) or a Locally- Installed (U-Line P60) Drain Pump. Drain lines must have a 5/8”... -
Page 15: Factory-Installed Drain Pump
If your drain line will run up to a stand pipe, disposal or spigot assembly, or does not otherwise meet the requirements for a Gravity Drain, you may have ordered the CLR2160 or CLRCO2175 with a U-Line P60 Drain Pump. See Below for typical installations requiring a Drain Pump. -
Page 16: Locally-Installed Drain Pump
Locally-Installed Drain Pump If a gravity drain connection is not possible, and you have not purchased a CLR2160 or CLRCO2175 with factory-installed pump, we strongly recommend the use of the U-Line P60 drain pump. The U-Line P60 drain pump is available through your Dealer, with complete installation instructions. -
Page 17: Level The Unit Leveling Information
Installation 1. Open the water supply valve in the main water source. 2. Plug in the power cord. CLR2160 & CLRCO2175 Only • Open the door and press the POWER icon. to turn the unit OFF. Note: If the unit is NOT turned OFF, water will immediately start flowing into the unit when it is first plugged into the electrical outlet. -
Page 18: Installation Troubleshooting
Installation Troubleshooting Problem Water is leaking under the unit. Solution A water leak under the unit is most likely caused by a bad connection in the water supply line. Make sure the water line’s brass fitting is screwed tight to its valve and threaded correctly. Problem The door remains open unless it is pushed closed. -
Page 19: Service Information
® INSTALLATION GUIDE SERVICE INFORMATION If you have a problem with this appliance, your use and care guide has troubleshooting information to help you quickly identify common problems and provide information on possible cause and remedy. Answers to Customers Frequently Asked Questions are available at www.u-line.com/customer/faq.cfm. You may contact U-Line directly: GENERAL INQUIRIES: SERVICE ASSISTANCE:...
