9 Install the Unit

Installation of the C2275DWR

1. Plug in the power cord.
2. Open the top drawer.Press and hold the POWER icon to
turn the unit OFF. (see Figure 31,1)
Note: If the unit is NOT turned OFF, water will
immediately start flowing into unit when it is first
plugged into the electrical outlet and water supply is on.
3. Open the water supply valve in the main water source.
4. Gently push the unit into position. Be careful not to
kink the water supply line or entangle the electrical
cord.
5. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit's top
surface should be approximately 1/8" below the
countertop.

Anti-Tip Kit Installation

WARNING
• The Anti-Tip Kit must be installed on this unit
before it is used.
• Additional blocking or special fasteners may be
required for installation. Installer is responsible
for secure attachment to prevent the unit from
tipping.
• Make sure the mounting screws attaching the
unit to the counter, cabinet or wall are deep
enough into the mounting surface to support the
weight of the drawers and the items that will be
inside the drawers.
• Never use the drawers as steps or as a shelf to
support more than the drawers' content. Serious
personal injury could occur.
After leveling, the unit must be secured to a counter, a
cabinet or a wall to prevent tipping.
1. Open the upper drawer to expose the six screws (A)
installed at the top two corners (three at each corner).
Remove the appropriate screws for horizontal or
vertical mounting (see Figure 29). Do not discard.
www.U-LineService.com
C2275DWR — Ice Maker/Refrigerator
14
Horizontal Mounting
(Left Side Shown)
B
A
C
Vertical Mounting
(Left Side Shown)
B
C
A

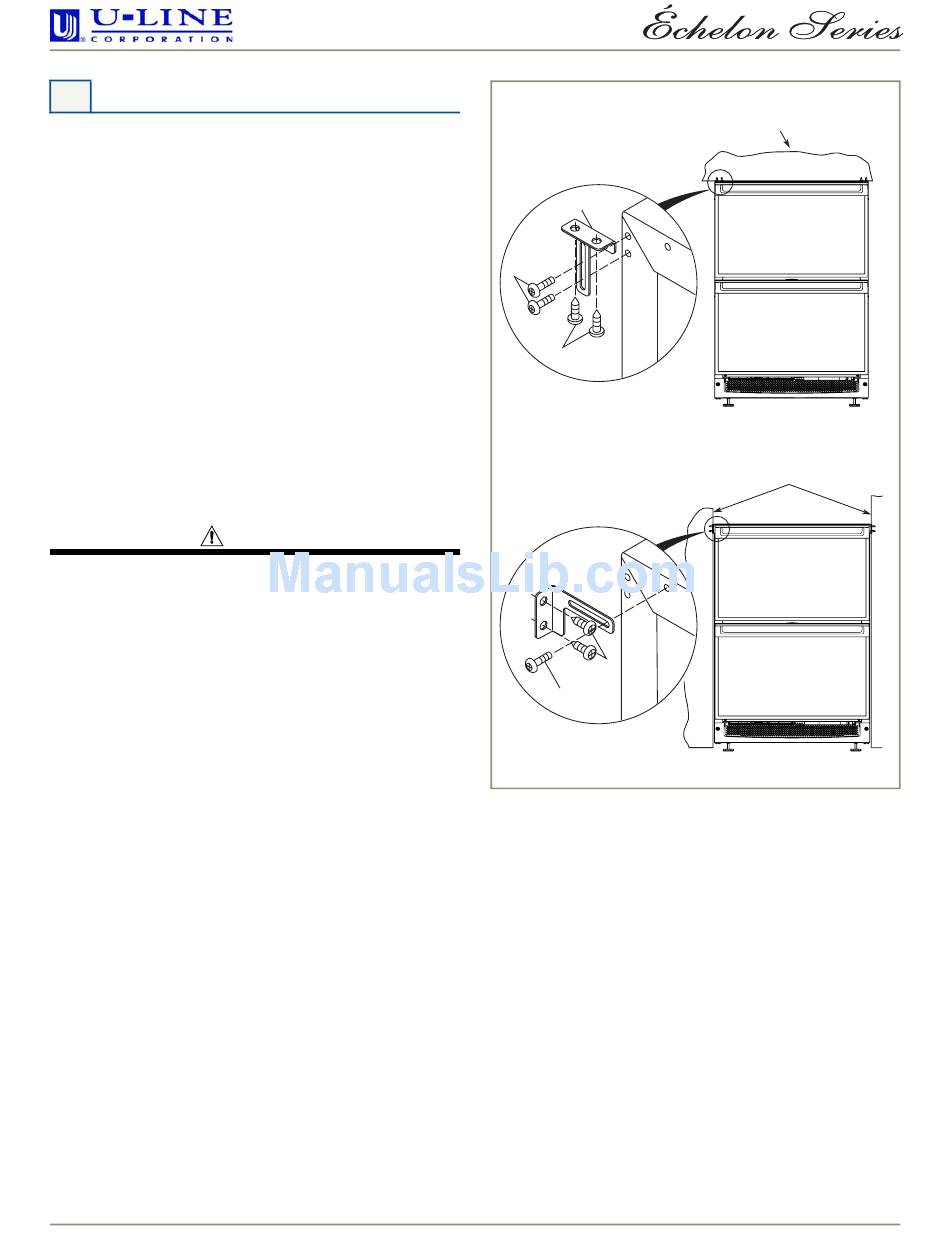

Figure 29
2. Insert the screws through the anti-tip bracket (B) and
attach the bracket to the unit. Tighten screws securely.
3. Repeat for the other side.
Note: The bracket should be flush with the surface it is
being attached to. If it is not, loosen the screws and slide
the bracket against the mounting surface. Tighten screws
securely.
Countertop or Wall Header
Cabinet or Wall Stud
