INSTALL GUIDE
CLEAR ICE MODELS
CLEAR ICE COMBO MODELS
ICE COMBO MODELS
CO2175
CLRCO2175
CO29
CO1175
CLR2160
The Built-In Undercounter Leader Since 1962
U-LINE.COM

Advertisement

Table of Contents
loading

Summary of Contents for U-Line CLRCO2175

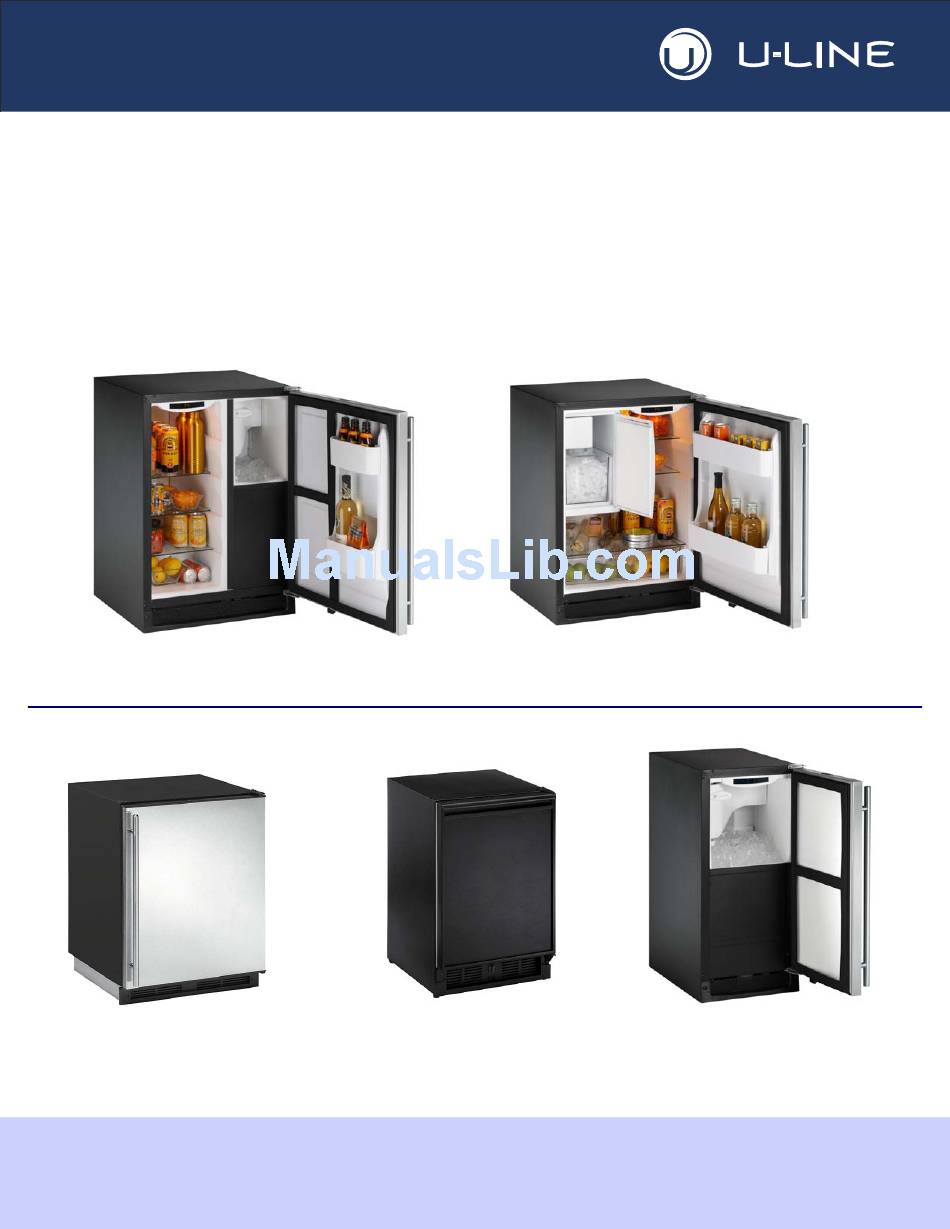

  • Page 1 ® INSTALL GUIDE CLEAR ICE MODELS CLEAR ICE COMBO MODELS ICE COMBO MODELS CO2175 CLRCO2175 CO29 CO1175 CLR2160 The Built-In Undercounter Leader Since 1962 U-LINE.COM...
  • Page 2: Table Of Contents

    Installation..............................11 Prepare Power Supply Electrical Specifications ............................14 Receptacle Location ............................14 Prepare Plumbing Copper Water Supply Connection:.........................15 U-Line Water Hookup Kit Connection:......................15 Gravity Drain: 16 Factory Installed Drain Pump ..........................16 Drain Connection: ...............................17 Final Installation 17 Level The Unit Leveling Information ............................18 Install the Unit Installation................................18...
  • Page 3: Safety Precautions

    Consult the installation guide before any installation begins. U-Line contact information appears on the rear WARNING cover of this guide. SHOCK HAZARD - Electrical Grounding Required.
  • Page 4: Inspect & Plan

    Product Registration • 5/16” Nut Driver • Side Cutter You have received a carton containing your U-Line Clear Ice, Ice or • Copper tubing cutter Ice Combo unit with a package inside containing a Use and Care Guide, a Product Registration Card, and a water line kit. Please •...
  • Page 5: Prepare Site

    4 Prepare Site CO29 Series Your U-Line product has been designed for either free-standing or built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front Filler Panel (Not Provided by U-Line) –...
  • Page 6: Product Dimensions

    STAINLESS CO1175 Black and White *Add 15/16” To Depth For Water Line Clearance *Add 3/16” to Depth For Water Line Clearance *Add 3/4” To Depth For Drain Line Clearance CO2175 Series CLRCO2175 Series 23-1/8” * 23”* 23” 34-1/8" 34-1/8” 34-1//8"...
  • Page 7: Door Swing Dimensions

    6 Door Swing Dimensions CO29 All units have a zero clearance for the door to open 90°. U-Line 1/4" Min. recommends a minimum door clearance of 2” to accommodate the handle if the unit is installed next to a wall.
  • Page 8: Standard Doors

    Other models will have a plate with Plug Hole Plug Hole three screws. 2. Remove corresponding screws on opposite side of cabinet. On Right Side Left Side Door Swing Door Swing U-Line Standrd Door Alignment and Reversal...
  • Page 9 5. Remove the plastic hinge bushing (2) and install in the corner opposite of where it was removed. Install grille: 6. Remove the U-Line nameplate (3) from door. This will reveal Install the grille, see MAINTENANCE section of this guide. mounting holes for the door actuator bracket.
  • Page 10: Self-Closing Doors

    If door edge needs to move down, opposite side of the cabinet. move plate toward inside of door(3). Repeat until top edge of door is parallel with top of cabinet and tighten screws (1) securely. U-Line Self-Closing Door Alignment and Reversal...
  • Page 11 2. Remove the two door closer inserts (4) from the existing bottom hinge. Align and adjust the door: 3. Install door closer inserts as shown on the new bottom hinge Align and adjust the door, see DOOR ALIGNMENT AND (4). ADJUSTMENT above. U-Line Self-Closing Door Alignment and Reversal...
  • Page 12: Door Panel Installation Custom 1/4'' Thick Door Panel Insert

    2. Pull door gasket out of groove (top edge of door only). Start in the middle and pull outward, moving toward the edge . This may take some force. U-Line Door Panel Installationl...
  • Page 13: Wood Grille Overlay

    You may also mount your overlay to your grille using hook and 10 Wood Grille Overlay loop type fasteners. U-Line recommends using 3M® Dual lock® fasteners. To mount your overlay using a hook and loop fastener follow the instructions below.
  • Page 14 Grille Drawing 24 inch U-Line Grill Overlay Installation...
  • Page 15 Grille Drawing 15inch U-Line Grill Overlay Installation...
  • Page 16: Prepare Power Supply Electrical Specifications

    GFCI could be prone to nuisance tripping. However, be sure to 1-1/2" consult your local codes. CO2175FF See below for recommended receptacle location CLR2160 & CLRCO2175 24" Preferred Location Acceptable 7" for CLR2160 Receptacle Location 24" 7" 1-1/2" 1" Receptacle Location CO29 24" 7" 1-1/2" U-Line Electrical / Plumbing Specfications...
  • Page 17: Prepare Plumbing

    Do not 11 Prepare Plumbing kink or pinch the coiled line. 4. Locate the U-Line supplied hose fitting. Ensure the end on the copper tubing has been cut straight and is free of burrs. Slide the WARNING compression nut and ferrule onto the copper tubing as shown below.
  • Page 18: Gravity Drain

    Failure to connect water supply or drain line connections properly can result in personal injury and If your U-Line unit did not come with a factory installed property damage. Gravity drain connections must be drain pump you must use a gravity style drain connection.
  • Page 19: Drain Connection

    IMPORTANT must be done as close to the rear of the unit as possible. In the event of a power outage, restricted drain or pump failure, the failure to use the U-Line P60 drain pump could IMPORTANT IMPORTANT result in substantial water leakage and pooling with severe...
  • Page 20: Level The Unit Leveling Information

    2. Plug in the power cord. 1. Use a level to check the levelness of the CLR2160 & CLRCO2175 Only unit from front to • Open the door and press the POWER icon. to turn the unit back and from side OFF.
  • Page 21: Installation Troubleshooting

    Installation Troubleshooting Problem Water is leaking under the unit. Solution A water leak under the unit is most likely caused by a bad connection in the water supply line. Make sure the water line’s brass fitting is screwed tight to its valve and threaded correctly. Problem The door remains open unless it is pushed closed.
  • Page 22: Service Information

    E-mail: onlineparts@u-line.com ABOUT U-LINE Building on 45 years, U-Line has captivated those with an appreciation for the finer things with exceptional design, inspired innovations and attention to even the smallest details. U-Line is synonymous with premium built-in undercounter ice making, refrigeration and wine storage appli- ances, the U-Line Corporation is committed to luxury under the counter.
