Read these instructions carefully before installing, commissioning and using this product.
MPNT0456 v1.0EN (11/07/2022)
OPERATING INSTRUCTIONS

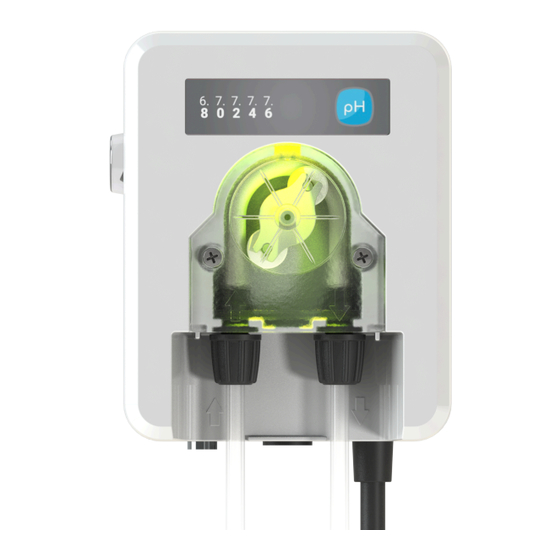

Phileo POD VP
Automatic and connected pH regulation
Phileo VP &
PF10J050 - PF10J051
Advertisement
Table of Contents
Related Manuals for ccei Phileo VP
Summary of Contents for ccei Phileo VP
-
Page 1: Table Of Contents
3.1. Bluetooth® and Wifi control ....................4 3.2. iOs / Android applications ...................... 4 3.3. pH regulation ........................4 4. Installing the Phileo VP & Phileo POD VP ................... 5 4.1. Wall mounting ........................5 4.2. Hydraulic connection ......................5 4.3. -
Page 2: Technical Specifications
Phileo VP & Phileo POD VP v1.0EN OPERATING INSTRUCTIONS 1. Technical specifications Dimensions 260 x 180 x 80 Power supply voltage 230 V AC 50Hz Power consumption Weight 700 g (Pump only) Protection rating IP-54 pH regulation Measurement using a combined electrode - +/- 0.1... -
Page 3: Pack Contents
2 ∅50 1/2" pipe saddle (if Phileo VP) 1 "Vigipool Universe" leaflet 1 ∅50 3/4" pipe saddle + 3/4" M nipple (if Phileo VP) 1 wall support + 2 screws and 2 wall plugs 1 ZeliaPod measuring chamber + union fittings + 3/4" M... -
Page 4: Bluetooth® And Wifi Control
The Phileo VP & Phileo POD VP control box has an embedded Bluetooth® and Wifi transmitter used to control your ap- pliance from a smartphone or tablet. To be able to control the Phileo VP & Phileo POD VP, you need an iOs (Apple®) or Android smartphone or tablet running Bluetooth®... -
Page 5: Installing The Phileo Vp & Phileo Pod Vp
4.2. Hydraulic connection The Phileo VP model is shipped with 3 pipe saddles to install the accessories required to properly run pH regulation. To make installation easier, the Phileo POD VP model is shipped with the ZeliaPod measuring and injection chamber. This measuring chamber makes it possible to limit the number of drill holes in the piping and to centralise data. - Page 6 Phileo VP & Phileo POD VP v1.0EN OPERATING INSTRUCTIONS 4.2.3. ZeliaPod hydraulic installation - POD VP model only ZeliaPod installs on a diameter 50mm pipe using the supplied union fittings. It is installed downstream of filtration (after the filter) and must be placed horizontally on a section of pipe that is always pressurised relative to the pool water level, this is to make sure that there is always water in the Zelia Pod and that the sensors are always in water.
- Page 7 Phileo VP & Phileo POD VP v1.0EN OPERATING INSTRUCTIONS 4.2.4. Installation diagram without Zelia Pod - VP Model The flow detector (D) is placed on the same section of pipe as the other supplied elements. The pH sensor (B) must be placed after the filter at a minimum distance of 60 cm from any other measuring appliances, and as far away as possible from the pH injector (E), installed downstream and placed as close as possible to the pool backflow.
- Page 8 Phileo VP & Phileo POD VP v1.0EN OPERATING INSTRUCTIONS E. Injector housing F. Injector housing (not used) Use the supplied roll of Teflon tape when assembling the sensor holder and the supplied flat seal for the injector. 4.2.6. Installation diagram with Zelia Pod - POD VP Model only The Zelia Pod measuring chamber includes the pH sensor (B), the pH corrector injector - (E), as well as the flow detector (D).
-
Page 9: Connecting The Sensor And Flow Detector
5. Operation Phileo VP & Phileo POD VP can be configured using the pump interface or from the smartphone app available for iOS and Android. We encourage you to use the app which provides access to additional parameters, in particular for calibration. - Page 10 Phileo VP & Phileo POD VP v1.0EN OPERATING INSTRUCTIONS...
- Page 11 (If it has been powered for less than one minute, it is not necessary to press the button). Your Phileo VP & Phileo POD VP then connects to the Vigipool "central" unit: it stops flashing in white and goes into normal operation mode.
- Page 12 Phileo VP & Phileo POD VP v1.0EN OPERATING INSTRUCTIONS 5.2.5. Sensor calibration Use the supplied pH 6.86 bag and the container to create a calibration solution before proceed- ing to calibrate. Mix the contents of the bag in 250 ml of water.
-
Page 13: Appliance Operation
• Incremented in 1 L steps 6. Appliance operation Phileo VP & Phileo POD VP does not take any measurements: • during the first 2 minutes after power up (time for the value to be set), • if the flow rate is not detected by the device (to ensure that measurements are only taken when the filtration is running and to guarantee the correct values of the pool water and not of the stagnant water in the pipe). -
Page 14: Measured Value Display
7. Reset to zero It is possible that a factory reset may be required to set the Phileo VP & Phileo POD VP back to the original factory settings. To do this, please: 1. Turn off the device ( on/off switch on the box side) and wait for about 10 seconds, 2. - Page 15 Phileo VP & Phileo POD VP v1.0EN OPERATING INSTRUCTIONS Keep it at room temperature. An incorrectly winterised sensor will have a slower response time and make it harder to cali- brate. Sensor regeneration: At the end of winterisation, we recommend immersing the sensor in a 50% PH4, 50% KCl 3 mol/l solution for 12h Calibration: Each sensor is characterised by its drift and slope.
-
Page 16: Declaration Of Conformity
OPERATING INSTRUCTIONS A. Declaration of conformity CCEI S.A.S (FR 47 40 35 21 693) declares that the Phileo VP & Phileo POD VP product meets the safety and electromagnetic compatibility requirements of European directives 2014/35/EU and 2014/30/EU. Emmanuel Baret...
