Iwata Airrex Katana Plus User Manual

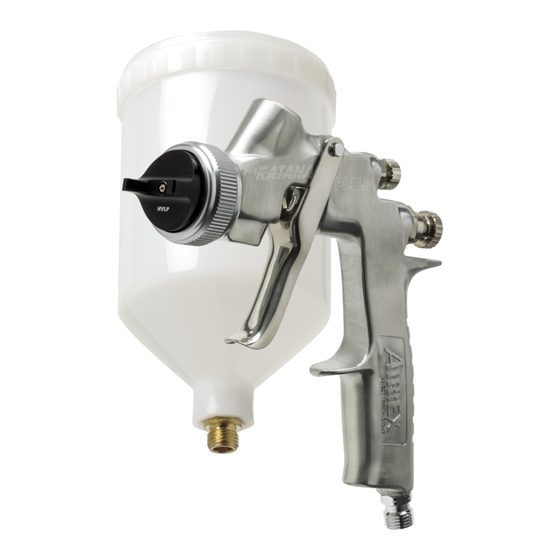

KAT9000 | Katana Plus HVLP Spray Gun
PRODUCT USER GUIDE
Manufactured for ANEST Iwata-Medea, Inc. by ANEST IWATA Industrial Machinery (Jiaxing) Co., Ltd.
Model Type of Nozzle
Feed Orifice
Ø mm
(in)
KAT9000 Center 1.3
Cup (0.051)
Gravity
Atomizing air pressure means air pressure (static pressure) at spray gun inlet when trigger is pulled and air flows.
1
GENERAL HAZARD WARNING
This manual contains important instructions for operating this product. For your safety, and the
safety of others, be sure to read this entire manual thoroughly before operating the product.
Failure to properly follow all the instructions and precautions can cause you and others to be
seriously hurt or killed.
Customer Support 503-253-7308 M-F, 8am-4:30pm PST | iwata.support@iwata-medea.com | www.iwata-airbrush.com/blog/contact-us
Applied Recommended Conditions
Air Cap
Atomizing Internal Cap
1
Model
Air Pressure Pressure
MPa (bar/PSI) MPa (bar/PSI)
KTN 13 0.14 0.069
HVLP (1.40 / 20) (0.69 / 10)
www.Iwata-Airbrush.com/KatanaPlus.html
Air Pattern
2
Consumption Size
Fluid
l/min (cfm) mm (in)
Output
ml/min
155 240 (8.48) 140 (5.5)
English
French
Spanish
Air & Fluid Gross Cup/
Connection Weight Container
g (lbs.) Capacity
mL
Air 420 (0.93) 600
G1/4 (NPS1/4) (Only
Fluid Spray Gun)
G1/4 (NPS1/4)
Spray distance: 150mm
2
KAT9000-OIPM-PJV
