Iwata PT2S Instruction Manual

INSTRUCTION MANUAL

This instruction manual contains important safety information,

precautions, warnings and cautions for safe operation.

BEFORE YOU USE THIS PRODUCT:

Read this manual thoroughly

Ensure you understand all instructions

Are familiar with all the components of the product

Keep this manual in a safe place for future reference

PT2S

February 2021

Table of Contents

Need help?

Do you have a question about the PT2S and is the answer not in the manual?

Page 1 PT2S INSTRUCTION MANUAL This instruction manual contains important safety information, precautions, warnings and cautions for safe operation. BEFORE YOU USE THIS PRODUCT: Read this manual thoroughly Ensure you understand all instructions Are familiar with all the components of the product...

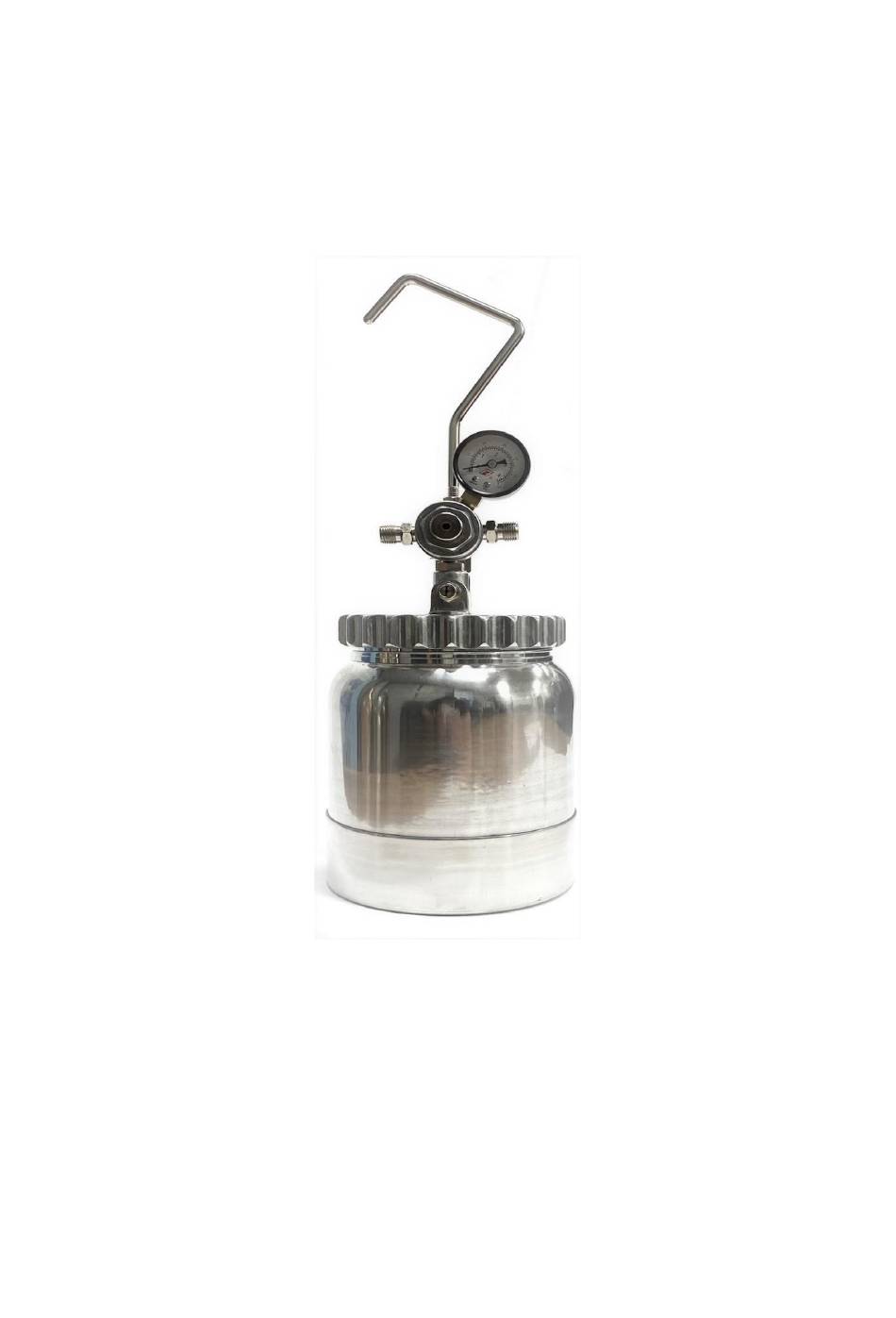

Page 2 Description This 2 litre pressure pot provides material under pressure. This item is equipped with and air regulator, pressure gauge, safety valve, air release valve and fluid outlet. It can be used for the supply of materials other than paint. It is not designed for use with highly abrasive, corrosive, toxic or rust inducing materials.
Page 3 6. To refill the tank, release all air pressure by loosening the air release valve – Part 7 – until no air pressure remains inside the tank – the air gauge will read ‘0’. 7. Unscrew the lid assembly and remove. 8.
Page 4 PT2S PARTS LIST Item Part Number Description PT2S.01 Handle PT2S.02 Handle Lock Nut PT2S.03 Outlet Fitting PT2S.04 Paint Outlet 3/8 PT2S.05 Centre Post PT2S.06 Centre Post Nut PT2S.07 Pressure Relief Valve PT2S.08 Check Valve PT2S.09 Air Inlet 1/4 ( not shown ) PT2S.10...
