Summary of Contents for Iwata Eclipse G3
- Page 1 G-SERIES MANUAL & PARTS GUIDE 日本版は裏面にございます。...
-
Page 3: Need Assistance
If you have any issues with this product, call ANEST IWATA-MEDEA (U.S.A.) 503-253-7308 (M-F 8am-4pm Paci c Time) or your local ANEST IWATA a liate before returning to your place of purchase. ANEST IWATA-MEDEA, INC. ANEST IWATA CORPORATION ANEST IWATA AUSTRALIA PTY LTD. - Page 4 Designed for use with the Iwata Studio Series Power Jet, Power Jet Lite or Power Jet Pro compressors, these low air consumption airbrush-guns provide high atomization while minimizing overspray.
- Page 5 · The round pattern is useful for painting graphics, while the oval shape creates a smooth background spray · Works well with the Iwata Studio Series Power Jet, Power Jet Pro and Power Jet Lite Compressors NOTE: With the Eclipse G6, only round pattern can be achieved using these air sources.
- Page 6 Iwata Eclipse G6 • MAC Valve for precise control of air and spray • 0.6-mm stainless-steel nozzle • Spray width - 1/8” up to 2.5”+ • Long tapered needle for smooth transition between fine-to-wide background spray • Dual-purpose air cap and fan...

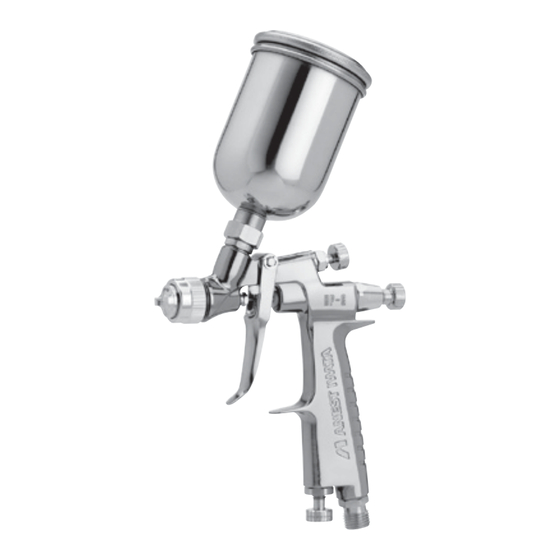

- Page 7 Iwata Eclipse G5 Iwata Eclipse G3 • True center-post gravity-feed airbrush • True center-post gravity-feed airbrush • MAC Valve for precise control of air • MAC Valve for precise control of air and spray and spray • 0.5-mm stainless steel nozzle •...
-
Page 8: Getting Started
GETTING STARTED Pre-Check the Airbrush Settings 2. Screw the lid (bottle cap set) onto the bottle. 1. Close the pattern adjustment knob (#14) fully by gently twisting it clockwise until it stops. It doesn’t need to be tight. 3. Push the metal nipple of the bottle firmly onto the bottle joint adaptor (#6). -
Page 9: General Operation
GENERAL OPERATION Fine-Line Spray Control spray consistency over large areas by setting 1. Pull the trigger back slightly to start the air. the fluid adjustment knob (#22) to limit the amount of paint volume sprayed. 2. Position the airbrush close to the surface. About 1 inch or 2.5 cm. - Page 10 Before Each Session Safety Tips Spray water, or appropriate solvent, through the airbrush to ensure •Always spray in a well-ventilated area. the airbrush is in proper working order. •Do not spray solvent-based (flammable) paints around open flames. After Each Session Or any time the airbrush becomes clogged: •Use the appropriate respirator to safely filter out the paint vapors 1.
- Page 11 ECLIPSE G-SERIES DESCRIPTION OF FEATURES Pattern Adjustment Set (#14) Fluid Adjustment Knob (#22) This adjustment creates a circular- or oval-shaped spray pattern. The fluid adjustment knob limits how much fluid will be sprayed When the valve is fully closed, twisted fully clockwise, the spray when the trigger is pulled all the way back.
- Page 12 16-1 16-2...
- Page 13 — I W A T A E C L I P S E G - S E R I E S S E R I E S A I R B R U S H - G U N S • M A S T E R P A R T S L I S T — PRICE ITEM ALSO...
- Page 14 Genuine Iwata ©2008 Anest Iwata-Medea, Inc. All rights reserved. The Anest Iwata-Medea logo, Anest Iwata-Medea, Power Jet, Power Jet Pro, Power Jet Lite and Medea Super Lube are trademarks of Anest Iwata-Medea Inc. Iwata Eclipse is a trademark of ANEST IWATA Corporation. Iwata and the Iwata logo are registered trademarks of ANEST IWATA Corporation. All other trademarks are of their respective owners. For more information visit...
- Page 15 w w w . I W A T A - A I R B R U S H . c o m...
- Page 20 Part No. ECL 903 Rev5 12/15...
