BEGA 84 429 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
• 3mm hex head screwdriver
• 4mm hex head screwdriver
• 1/4" drill bit
• Adjustable wrench
Overview:
LED Watts: 3.9W
System Watts: 5W
Controllability: 0-10V dimmable
Weight: 8.2 lbs.
Protection Class: IP65
Notice to Installer:
1. See page 2 for specific product safety warnings.
2. Fixture may be damaged if connected to conduit systems that contain water- Article
300-5G of the National Electric Code requires that "Conduits or race ways through
which moisture may contact energized live parts shall be sealed or plugged at either
or both ends."
3. Anchorage can be installed in concrete.
4. It is recommended that when installing in planting areas the bollard base be slightly
elevated to avoid prolonged submersion during heavy rains.
5. Wet location listing does not imply suitability for exposure to standing water for
long periods of time. Proper drainage must be provided. Failure to do so may void
warranty.
6. It is not necessary to remove bollard head or open driver box during installation. Any
tampering with fixture head or driver box could result in failure and void warranty.
Installation: Luminaire
1. Provide means to bring supply wiring to the conduit entry location in accordance with
local codes.
2. Disassemble mounting base from main bollard. Carefully remove the mounting base
from the bollard tube by loosening (2) 3mm hex head set screws near the base of
the bollard. See Figures 1 and 2.
3. Driver box is connected to the bollard head using 4' of cable. Warning: Do not pull on
or remove cable from head or driver box.
4. To remove driver box from mounting base, loosen (1) 4mm hex head screw at the
top of the mounting base. See Figure 3
5. Place mounting base on surface and mark drill locations, then remove mounting
base and drill holes using 1/4" drill bit.
6. Insert anchors into 1/4" holes.
7. Align mounting base with anchors, and pull supply wires through mounting base.
Make sure base is level - use washers as spacers underneath if necessary.
8. Use adjustable wrench on included anchor bolts nuts to tighten mounting base onto
anchorage.
9. Replace driver box by sliding rail into mating part on mounting base. Secure into
place by tightening (1) 4mm hex head screw. See Figure 3.Make bollard and supply
wiring connections. Connections can be made in bollard tube, do not open driver
box:
MAIN VOLTAGE SUPPLY WIRE TO BLACK DRIVER BOX WIRE;
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE DRIVER BOX WIRE;
GREEN GROUND WIRE TO GREEN DRIVER BOX WIRE.
0-10V Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE DRIVER BOX DIM WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE DRIVER BOX DIM WIRE
10. Replace bollard tube over mounting base, pushing wiring connections up into tube.
Orient tube and head as needed and tighten into place using (2) 3mm hex head set
screws at base of bollard tube. See Figures 1 and 2.
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2023
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

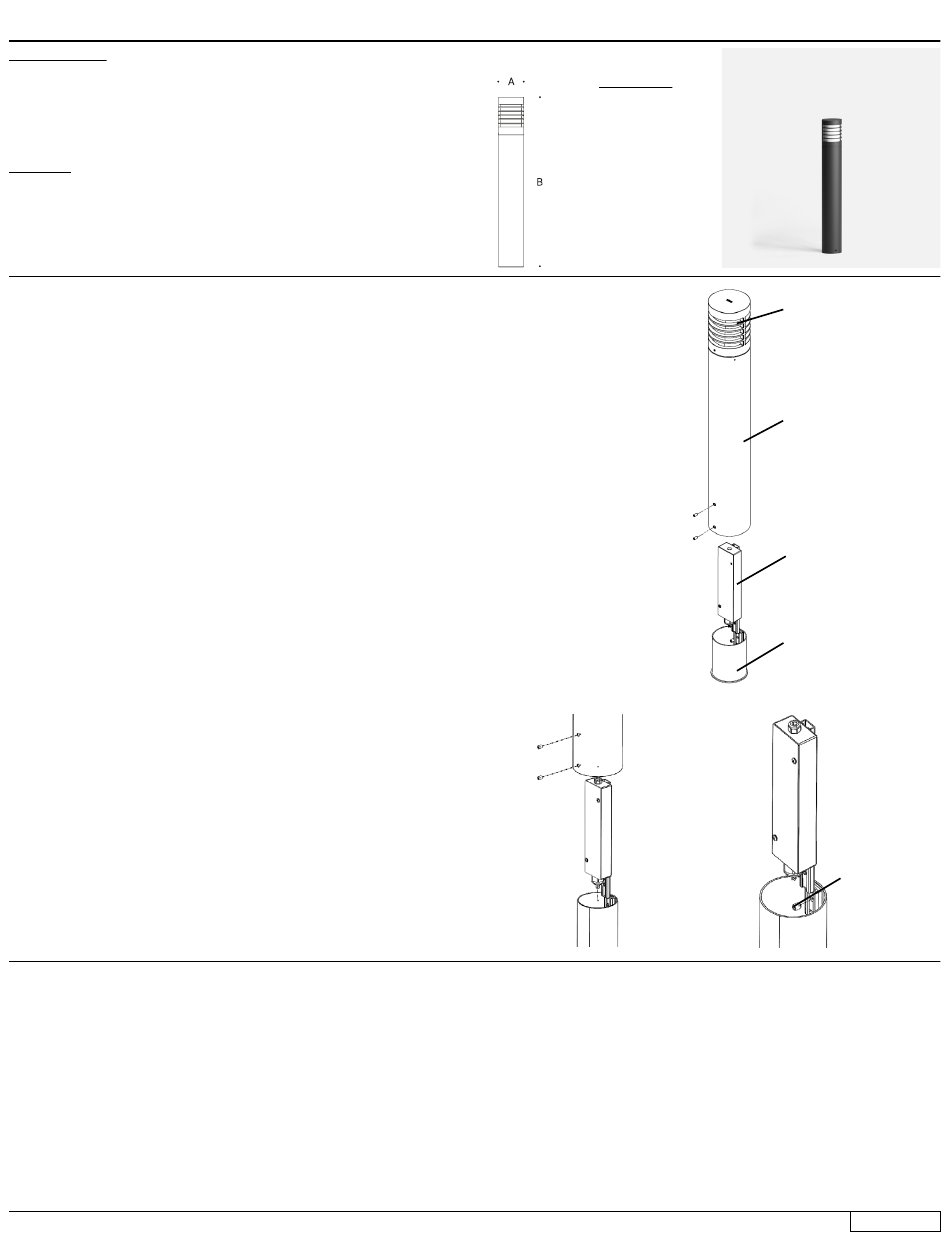

Bollard - hardscape base - 360°
Dimensions
A: 4-3/8
B: 28-5/8
Figure 1:
Figure 2:
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 429
Bollard Head
Bollard Tube
Driver Box
Mounting Base
Figure 3:
4mm Hex Screw
Updated: 10/10/23
84 429 1 of 2
