BEGA 84 462 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
• 5mm hex head screwdriver
• 10 mm socket
Overview:
LED Watts: 11.5W
System Watts: 18.0W
Controllability: 0-10V, TRIAC, and ELV dimmable
Weight: 27.1 lbs.
Protection Class: IP65
Notice to Installer:
1. See page 3 for specific product safety warnings.
2. Fixture may be damaged if connected to conduit systems that contain water - Article
300-5G of the National Electric Code requires that "Conduits or raceway through which
moisture may contact energized live parts shall be sealed or plugged at either or both
ends."
3. For proper installation, an accompanying bollard head must be selected with the bollard
tube.
4. 79 818 anchorage kit (included) must be installed in concrete pad/foundation.
5. It is recommended that when installing in planting areas the bollard base be slightly
elevated to avoid prolonged submerging during heavy rains.
6. Wet location listing does not imply suitability for exposure to standing water for
prolonged periods of time.
7. LEDs are high-quality electronic components! Please avoid touching the light output
opening of the LED directly during installation.
8. Emergency LED driver in bollard tube is for use with 120V OR 277V ONLY. This driver
is not 120V-277V.
79 818 anchorage installation:
1. Provide means to bring supply wiring to the bollard in accordance with local code. (20"
of supply wire above finished grade is required to make connections.)
2. Assemble anchorage kit. Unscrew the (3) hex bolts from the female couplers. Remove
each hex bolt and washer. Align each anchor bolt with the hole in the template. Attach
each anchor bolt to the template by replacing the washer and hex bolt and tighten.
*NOTE (FIGURE 1): FOR EMPK OPTION THE ORIENTATION OF THE BASE IS
CRUCIAL FOR PROPER INSTALLATION.
3. Determine the finished grade for the application. Use leveling hardware to adjust
template to desired finished height after pouring.
4. Install anchorage kit using either method:
A. Attach template to forming or cross bracing using the (2) nail holes provided
in the template. Level template properly. Pour concrete.
B. Insert anchorage assembly into poured concrete. Concrete must be vibrated
to ensure proper anchorage setting. Level template properly.
Luminaire Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2023
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
(See page 2 for luminaire installation)
Mounting Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.

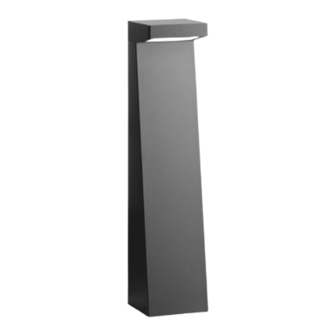

Bollard - Asymmetric flat beam
Dimensions
A: 8-5/8"
B: 38-7/8"
C: 8-5/8"
Figure 1: (BASE ORIENTATION - EMPK OPTION)
ANCHOR BOLT
LOCATIONS
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 462
DIN RAIL NOTCH
LOCATION
Updated: 03/22/23
84 462 1 of 3
