BEGA 84457 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

• 5mm hex head screwdriver
• 3mm hex head screwdriver

Overview:

LED Watts: 28.2W
System Watts: 34.0W
Controllability: 0-10V dimmable down to 1%
Weight: 17.2 lbs.
Protection Class: IP68

Notice to Installer:

1. See page 2 for specific product safety warnings.
2. A foundation must accommodate the luminaire's max pressure load of 11,000 lbs.
(5,000 kg.). The pressure load transfers to the foundation provided by the customer
through the housing.
3. The installation housing must be set in concrete for drive over applications.
4. Aggressive chemicals can compromise the luminaire from the surface and avoid
excessive de-icing agents near the luminaire.
5. The luminaire is sealed from the factory; it should only be opened if maintenance is
required on the internal electrical components.
6. Do not use power tools to open and close fixture, use hand tools only. Failure to do
so can result in incorrect sealing of fixture and void warranty.
7. Do not install luminaire housing in heat-insulating material.
8. At least 6'' of drainage must be provided in the foundation to allow surface water to
drain from the recessed housing.
9. A customer-provided waterproof wiring box is required to connect the luminaire to
the supply power.
10. Luminaire supplied with 7.5 ft. whip exiting the fixture.

Installation: Luminaire Back housing

1. Position back housing on the stable foundation; anchor using hardware (by others).
[Figure 1]
2. The finished surface must be level with or below the upper edge of the recessed
housing to guarantee a proper seal of the luminaire faceplate. [Figure 1] [Figure 2]

Installation: Luminaire

1. Connect luminaire incoming supply wiring at wiring box:
MAIN VOLTAGE SUPPLY WIRE TO BLACK WIRE;
NEUTRAL COMMON SUPPLY WIRE TO WHITE WIRE;
GREEN GROUND WIRE TO GREEN WIRE;
Dimming (0-10V):
DIMMING CONTROL WIRE (+) TO (+) DIM CONTROL WIRE;
DIMMING CONTROL WIRE (-) TO (-) DIM CONTROL WIRE;
2. Insert the luminaire housing into the outer housing, turn it clockwise min. 10° and
align as needed or until stops.

Installation: Optical Assembly Adjustment

1. Remove luminaire faceplate and glass.
2. Loosen (2) 3mm hex head adjustment screws; adjust optical assembly by applying
pressure in the area circled in [Figure 3], tighten adjustment screws when complete.
3. Reinstall the glass ensuring the gasket is positioned properly then install the face-
plate over the glass.
4. Tighten the screws on luminaire faceplate to secure it in the installation housing
(Torque = 6.5Nm./4.8 ft-lb). Tighten the faceplate in a star pattern to seal correctly.

Accessories

Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2021
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
In-grade luminaire - Adjustable
Dimensions
A: 9 1/2''
A
B: 10 7/8''
C
C: 9 1/4"
B

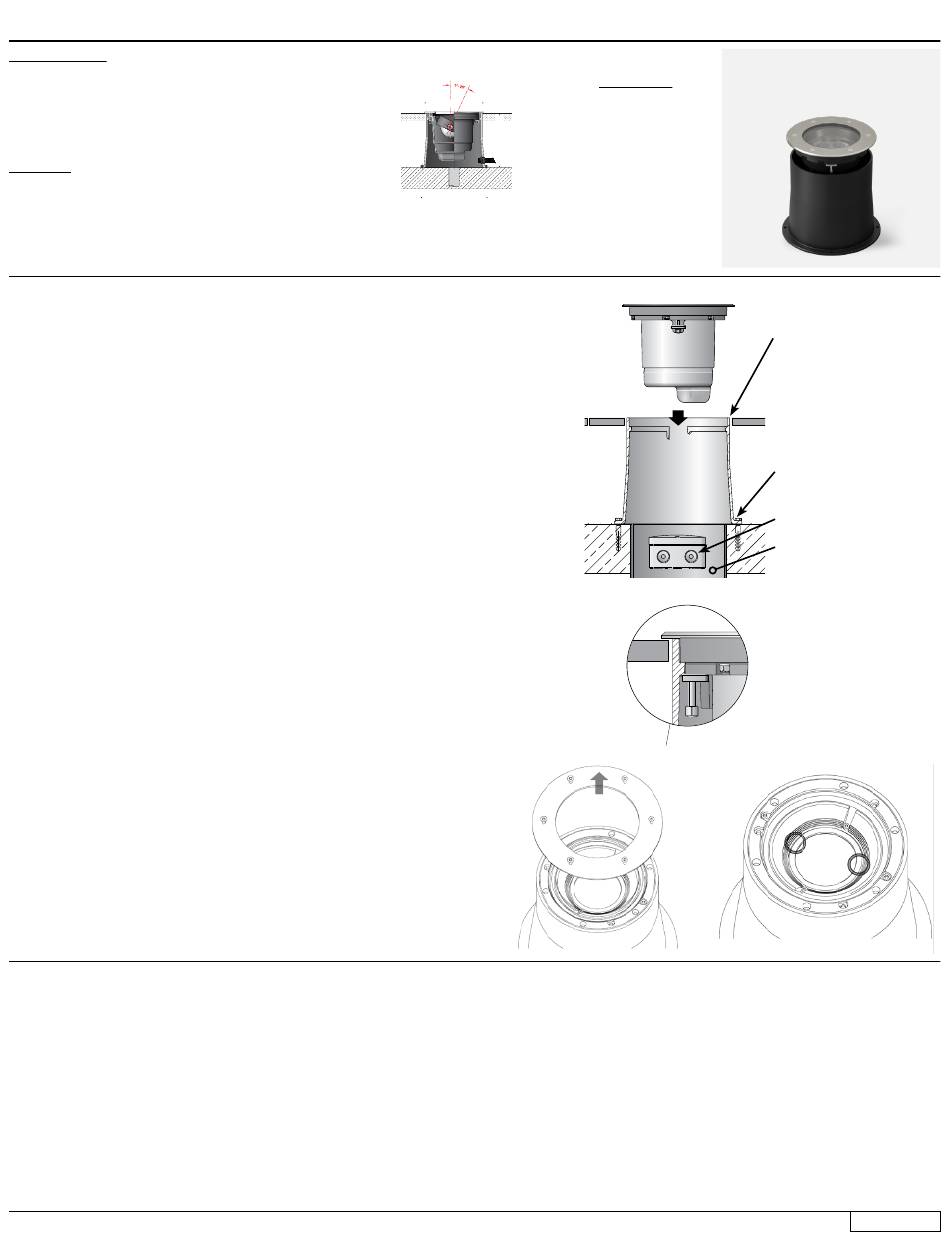

Figure 1: Mounting
Figure 2: Faceplate Detail
Figure 3: Optical Assembly Adjustment (Generic Image)
A
Flush with Back housing
Mounting hardware
(by others)
Waterproof wiring box
(by others)
Drainage area

Maintenance:

Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.

Replacement Parts

See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 457
A
Updated: 10/20/21
84 457 1 of 2
