Little Giant CONQUEST ALL-TERRAIN Operation And Maintenance Manual

Release handle
Outrigger Operation:
1. To unlock, lift or tilt the
ladder slightly to remove
any pressure on the foot of
the side you're adjusting.
4. To avoid injuries caused by misstepping as you dismount the ladder, it is highly recommended
that the outriggers are used for leveling only, and not for gaining additional height. Try to keep the
bottom rung height approximately 12" from the ground. Never fully extend both outriggers at the
same time. When leveling the ladder, keep one outrigger set in the 1
other until the ladder is level side-to-side.
Advised Use
Positions
CONQUEST ALL-TERRAIN
OUTRIGGER OPERATION AND MAINTENANCE

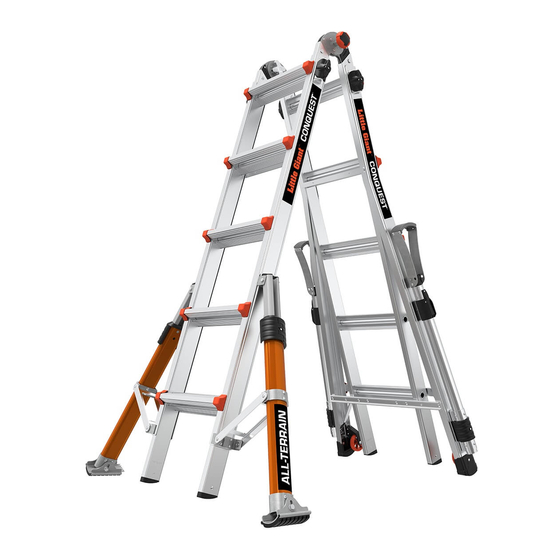

Standard on CONQUEST ALL-TERRAIN
outriggers provide additional width at the base of the
ladder for added stability, and function as built-in levelers,
allowing the ladder to be used safely in unlevel areas. The
outriggers have a pressure sensitive safety mechanism,
which doesn't allow them to be released if someone is on
the ladder.
2. Squeeze the release with your
fingers. Then, while holding the
release in the unlocked position,
press down the lock housing and
nudge the ladder foot outward.
3. When you get the outrigger to the desired
position, let go of the release and move the
housing slightly until you feel it lock into
place. Even when used on level ground,
both outriggers should be extended to the
first locking position below the storage
position for additional stability.
Use ladder only in advised positions shown.
Use in any other position may result in death or serious injury.
NEVER USE
LADDER WITHOUT
OUTRIGGERS DEPLOYED.
ALWAYS MAKE SURE
LOCKING PIN IS FULLEY
ENGADED BEFORE EACH USE.
Use Position, then extend the
st
Non-Use
Positions
12"
>
[30 cm]
™
models, the
™
84336 V1 10.22
