007-1 Queen
Assembly Instruction
WI-0622
1

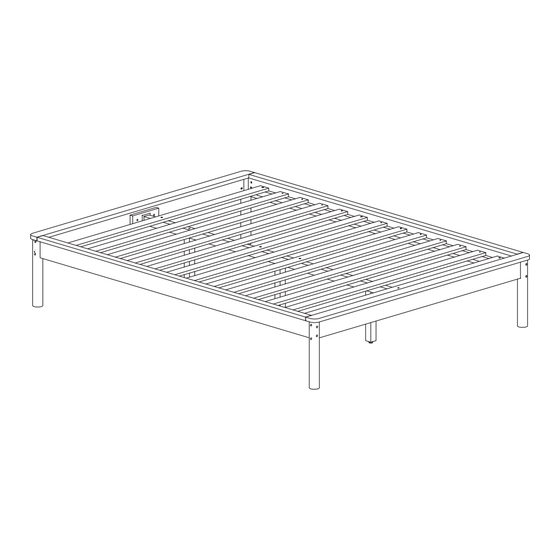

Assembled View
Use 2 People
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtigheted.
Extra Holes
2
Parts List
A
Headboard Panel
x 1
B
Footboard Panel
x 1
H
G
Post
Post
C
Side Rail
x 2
(Left hand)
(Right hand)
x 2
x 2
D
Long Support
x 1
E
Headboard/Footboard
Support
x 2
J
Set of Bed slats
F
Support Leg
x 3
x 1
Page 1 of 5
Advertisement
Related Manuals for Baxton Studio Efren 007-1
Summary of Contents for Baxton Studio Efren 007-1
- Page 1 007-1 Queen Assembly Instruction WI-0622 Assembled View Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtigheted. Extra Holes Parts List Headboard Panel Footboard Panel Post Post Side Rail (Left hand) (Right hand) Long Support Headboard/Footboard Support...
- Page 2 007-1 Queen Assembly Instructions WI-0622 Hardware M4 Allen Key Wood Screw Centre Rail Adjustable Foot (M4 x32mm) Bracket x 2 x 18 M6 x 15mm JCB M6 X 35mm Wood Dowel Barrel Nut JCB x 4 (10 x 40mm) x 19 M6 x 90mm JCB M6 x 40mm JCB x 19...
- Page 3 007-1 Queen Assembly Instructions WI-0622 Assemble the Post (G & H) and Extra Holes Headboard/ Footboard Support (E) to the Headboard Panel (A). Extra Holes Assemble the Post (G & H) and Headboard/ Footboard Support (E) to the Footboard Panel (B). Page 3 of 5...
- Page 4 007-1 Queen Assembly Instructions WI-0622 Assemble the Side Rail (C) to the Headboard & Footboard Panel (A & B). Bolt the Long Support (D) to the Center Rail Brackets (2) on the Headboard and Footboard (A & B). Page 4 of 5...
- Page 5 007-1 Queen Assembly Instructions WI-0622 Bolt the Bed Slats (J) to the Side Rail (C). Screw the Bed Slats (J) to the Side Rail (C). Page 5 of 5...
