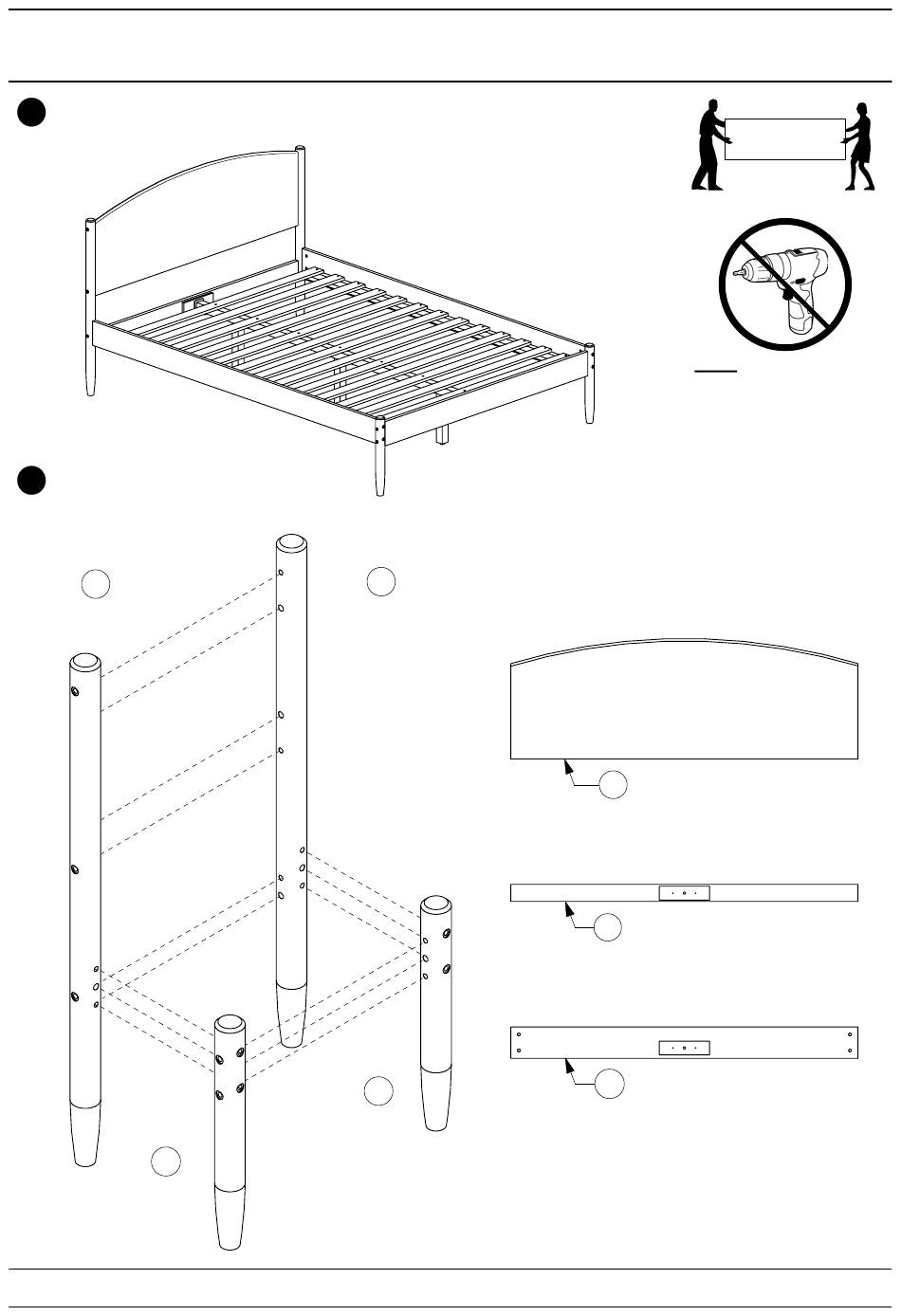

Assembled View
2
Parts List
Parts in Box A:
A
Headboard Post
(Left hand) x 1
C
Footboard
Post
(Left hand)
x 1
Full Bed
Assembly Instructions
B
Headboard Post
(Right hand) x 1
D
Footboard
Post
(Right hand)
x 1
Use 2 People
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
E
Headboard Panel
x 1
F
Headboard Support
x 1
G
Footboard Panel
x 1
WII-0419
Page 1 of 6
