007-1 King Bed
Assembly Instruction
WI-0622
1

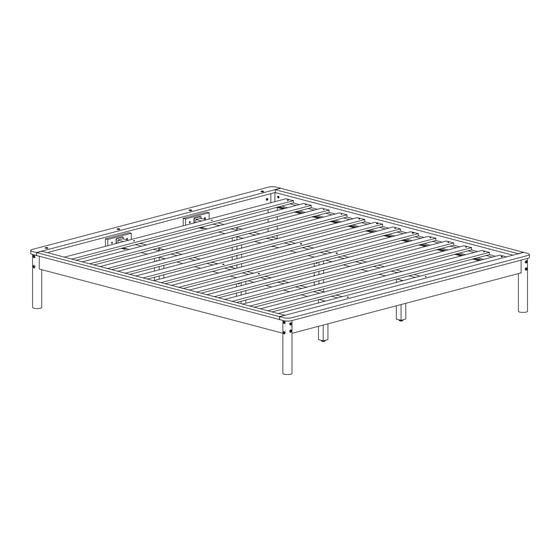

Assembled View
Use 2 People
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
2
Parts List
Extra Holes
A
Headboard Panel x 1
B
Footboard Panel x 1
G
H
C
Side Rail x 2
Post
Post
(Left hand)
(Right hand)
x 2
x 2
D
Long Support x 2
E
Headboard/Footboard
Support x 4
J
F
Support Leg x 6
Set of Bed Slats
x 1
Page 1 of 5
Advertisement
Related Manuals for Baxton Studio Efren 007-1
Summary of Contents for Baxton Studio Efren 007-1
- Page 1 007-1 King Bed Assembly Instruction WI-0622 Assembled View Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtightened Parts List Extra Holes Headboard Panel x 1 Footboard Panel x 1 Side Rail x 2 Post Post (Left hand)
- Page 2 007-1 King Bed Assembly Instruction WI-0622 Hardware M4 Allen Key Center Rail Adjustable Wood Screw Bracket x 4 Foot x 6 (M4 x 32mm) x 18 M6 x 15mm JCB M6 x 35mm JCB Wood Dowel Barrel (10 x 40mm) x 8 Nut x 22 M6 x 40mm JCB M6 x 90mm JCB...
- Page 3 007-1 King Bed Assembly Instruction WI-0622 Assemble the Post (G & H) and Headboard/ Footboard Support (C) Extra Holes to the Headboard Panel (A). Extra Holes Assemble the Post (G & H) and Headboard/ Footboard Support (C) to the Footboard Panel (B). Page 3 of 5...
- Page 4 007-1 King Bed Assembly Instruction WI-0622 Assemble the Side Rail (C) to the Headboard & Footboard Panel (A & B). Bolt the Long Support (E) to the Centre Rail Brackets (2) on the Headboard and Footboard Panel (A & B). Page 4 of 5...
- Page 5 007-1 King Bed Assembly Instruction WI-0622 Bolt the Bed Slats (J) to the Side Rail (C). Screw the Bed Slats (J) to the Side Rail (C). Page 5 of 5...
