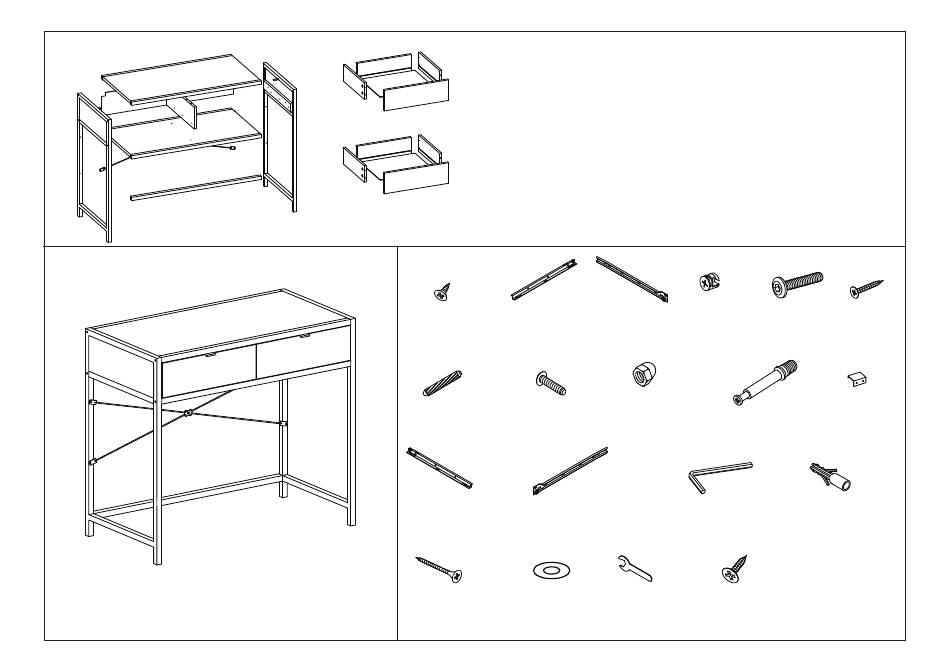

PART LIST
3
6
5
1
4
7
13
ASSEMBLY INSTRUCTION
10
11
12
9
8
2
10
11
12
9
8
HARDWARE LIST
A x 24
screw
D3.5X12mm
G x 4
wooden dowel
L x 2
right drawer slider
P x 2
screw
D4x35mm
1： left leg
3： top panel
5： middle divider panel
7： back X bar
9： drawer left panel
11：drawer right panel
13：metal tube
B x 2
C x 2
left drawer rail right drawer rail
I x 4
H x 4
screw
nut
M4X25mm
M4X6mm
M x 2
left drawer slider
Q x 2
R x 1
gasket
wrench
2：right leg
4：bottom panel
6：back panel
8：drawer front panel
10: drawer back panel
12：drawer bottom panel
D x 10
E x 10
F x 10
cam lock
bolt
screw
D6x30mm
D4x35mm
J x 10
K x 2
cam lock pin
handle
N x 1
O x 2
hex wrench
plastic achor
S x 4
screw
D3x12mm
Advertisement
Related Manuals for Baxton Studio Grayer NL2020510
Summary of Contents for Baxton Studio Grayer NL2020510
- Page 1 ASSEMBLY INSTRUCTION PART LIST 1： left leg 2：right leg 4：bottom panel 3： top panel 5： middle divider panel 6：back panel 7： back X bar 8：drawer front panel 9： drawer left panel 10: drawer back panel 11：drawer right panel 12：drawer bottom panel 13：metal tube HARDWARE LIST A x 24...
- Page 2 Use screw(A) to fix left drawer slider(M) on left leg(1), Use screw(A) to fix left drawer slider(M) on middle divider and fix right drawer rail(C) on right leg(2). panel(5) and turn back to fix right drawer rail(C) on middle divider panel(5) . Screw 2pc cam lock pin(J) on top panel（3).
- Page 3 Use 2pc screws(F) to fix bottom panel(4) on Use screw and nut(H/I) to fix back X bar(7) Screw 4pc cam lock pin(J) on drawer front middle divider panel(5), use screw(E) to fix to left and right legs(1,2) . panel(8), use 2pc screw(S) to fix handle(K) left and right legs(1,2) to bottom panel and on (8).
- Page 4 Use screw(A) to fix left drawer rail(B) Repeat step 8-12 for the other one drawer. Insert drawers. and right drawer slider(L) on drawer left and right panels(9,11). Wall Wall Pencil Electric drill Fix anti-tilting with(P, Q,O) as shown. Finish assembly.
