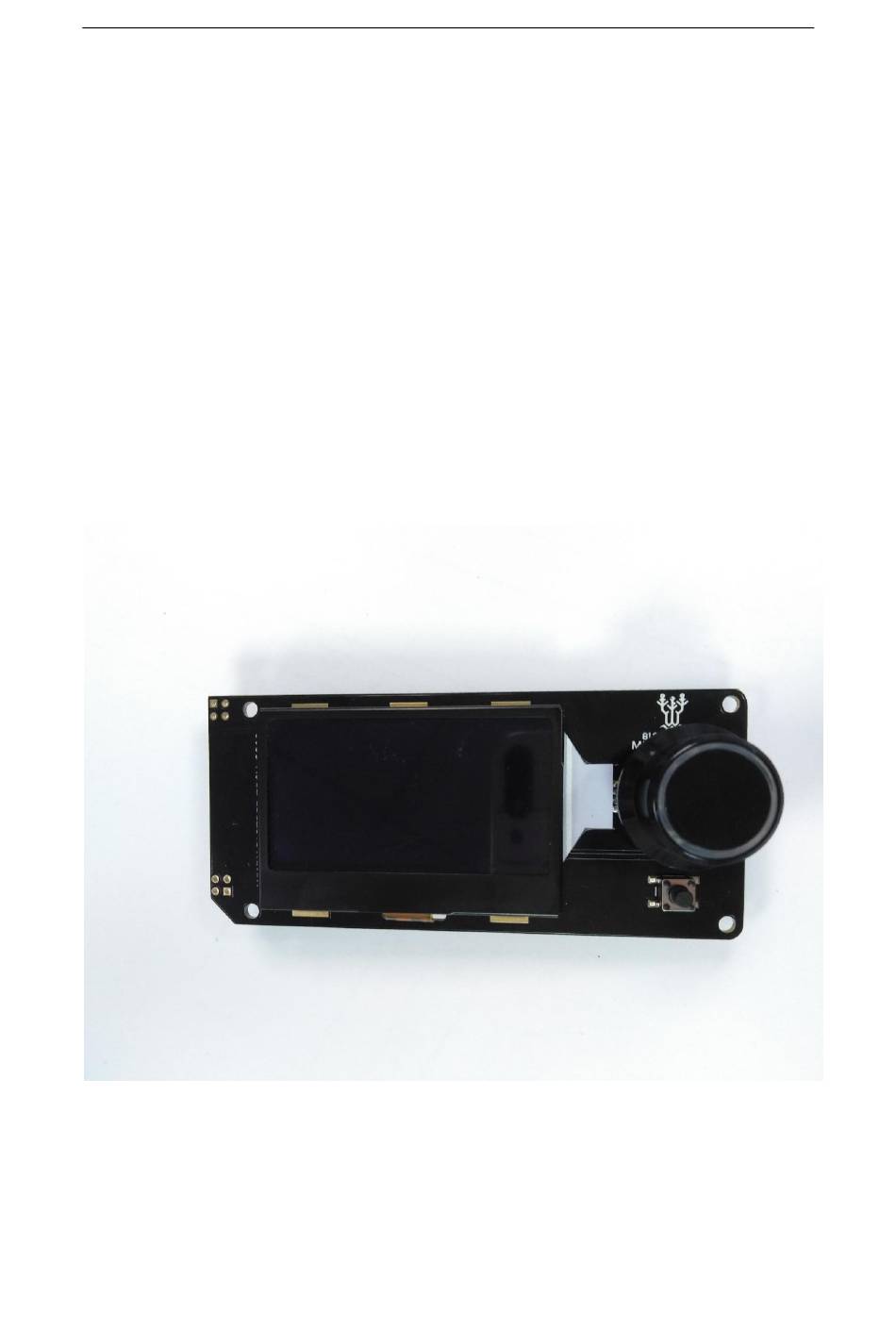

- Page 1 BIGTREETECH MINI12864 V1.0 SHENZHEN BIGTREE TECHNOLOGY CO., LTD BIGTREETECH MINI12864 User Guide...
- Page 2 RGB backlight which is launched by Shenzhen BIGTREETECH Technology Co., Ltd. 3D printing Team. 1. Features： 1) Mini12864 includes EXP1, EXP2, where EXP1 and EXP2 are LCD screen interfaces for ordinary motherboards. 2) It features multicolored RGB backlight, making it look cooler.
- Page 3 BIGTREETECH MINI12864 V1.0 SHENZHEN BIGTREE TECHNOLOGY CO., LTD 2. Wiring diagram The above figure shows the connection between BTT SKR v1.4 and BIGTREETECH MINI 12864 v1.0 Notes: 1. Same as LCD 12864, it connects with EXP1 and EXP 2 of the motherboard.
- Page 4 BIGTREETECH MINI12864 V1.0 SHENZHEN BIGTREE TECHNOLOGY CO., LTD 2. How to update the Firmware ① Uncomment "BTT_MINI_12864_V1" in Configuration.h file ② If the screen does not display content, you may need to initialize EEPROM with "M502" and then "M500" after flashing to ensure the new contrast settings are used.
- Page 5 BIGTREETECH MINI12864 V1.0 SHENZHEN BIGTREE TECHNOLOGY CO., LTD Click into Lights, then click on the new Lights: “on or off”, select RGB “on and off” RGB display can be set with Light Presets...
