NuTiny-SDK-M051 User's Manual
NuTiny-SDK-M051 User's Manual
™
For NuMicro M051
Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
™
Nuvoton is providing this document only for reference purposes of NuMicro
microcontroller based system design. Nuvoton
assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
1
Arrow.com.
Downloaded from
Advertisement
Table of Contents
Related Manuals for Nuvoton NuTiny-SDK-M051
Summary of Contents for Nuvoton NuTiny-SDK-M051
- Page 1 For NuMicro M051 Series The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. ™ Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system design.
-
Page 2: Table Of Contents
Nuvoton Nu-Link Driver Download & Install............... 6 Hardware Setup....................6 Smpl_NuTiny-M051 Example Program..............7 How to start NuTiny-SDK-M051 on the IAR Embedded Workbench ....... 8 IAR Embedded Workbench Software Download &Install ..........8 Nuvoton Nu-Link Driver Download & Install............... 8 Hardware Setup.................... -
Page 3: Overview

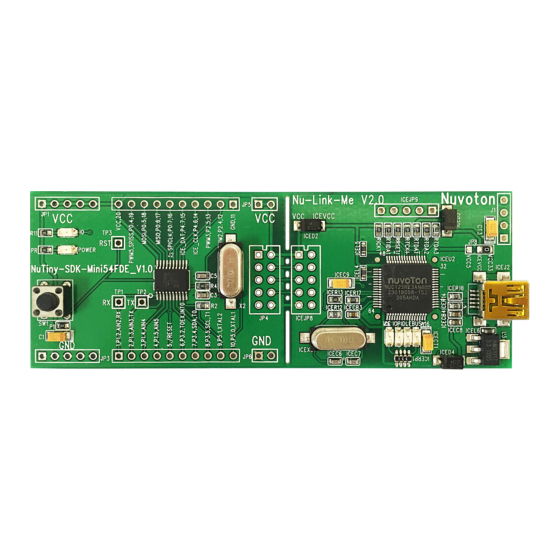

NuTiny-SDK-M051 to develop and verify the application program easily. NuTiny-SDK-M051 includes 2 portions. One is M052_Tiny-EVB and the other is Nu-Link-Me. M052_Tiny-EVB is evaluation board and Nu-Link-Me is its Debug Adaptor. Thus, users do not need additional ICE equipment. -
Page 4: Nutiny -Sdk-M051 Jumper Description
Voltage by VCC input X: Not use. 2.1.2 Debug Connector JP4: Target ICE Connector in M052_TINY-EVB JP8: Nuvoton ICE Connector in Nu-Link-Me 2.1.3 USB Connecter J1: mini USB Connecter in M052_TINY-EVB J2: mini USB Connecter in Nu-Link-Me 2.1.4 Extended Connecter JP1, JP5, JP6 and JP7: Show all of chip pins in M052_TINY-EVB 2.1.5 Reset Button... -
Page 5: Pin Assignment For Extended Connector
P1.3AIN3,TXD1 P2.4,AD12,PWM4 P1.4,AIN4,/SS0 P4.0,PWM0 P4.2,PWM2 Table 2-1 pin assignment for M0516LAN NuTiny-SDK-M051 PCB Placement Users can refer Figure 2-2 for the NuTiny -SDK-M051 PCB placement. Figure 2-2 NuTiny-SDK-M051 PCB Placement Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from... -
Page 6: How To Start Nutiny -Sdk-M051 On The Keil Uvision Ide
Nuvoton Nu-Link Driver Download & Install ™ ™ Please connect to Nuvoton company NuMicro website ( http://www.nuvoton.com/NuMicro ) to download “NuMicro ® Keil uVision IDE driver” file. Please refer the Chapter 6.1 for the detail download flow. When the download had finished, please unzip the file and execute the “Nu-Link_Keil_Driver.exe”... -
Page 7: Smpl_Nutiny-M051 Example Program
NuTiny-SDK-M051 User’s Manual Smpl_NuTiny-M051 Example Program This example demonstrates the ease of downloading and debugging an application on a NuTiny-SDK-M051 board. The example can be found on the Figure 3-2 list directory. Directory Project File Figure 3-2 Smpl_NuTiny-M051 Example Directory... -
Page 8: How To Start Nutiny-Sdk-M051 On The Iar Embedded Workbench
NuTiny-SDK-M051 User’s Manual 4 How to start NuTiny-SDK-M051 on the IAR Embedded Workbench IAR Embedded Workbench Software Download &Install Please connect to IAR company website (http:// www.iar.com) to download the IAR Embedded Workbench and install the EWARM. Nuvoton Nu-Link Driver Download & Install ™... -
Page 9: Smpl_Nutiny-M051 Example Program
Smpl_NuTiny-M051 Example Program This example demonstrates the ease of downloading and debugging an application on a NuTiny-SDK-M051 board. The example can be found on the Figure 3-2 list directory. (Samples code can be download from Nuvoton website) Directory Project File... -
Page 10: M052_Tiny-Evb Schematic
ADAVSS Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 11: To Download Numicro ™ Family Releated Files From Nuvoton Company
NuTiny-SDK-M051 User’s Manual ™ 6 To Download NuMicro Family Releated Files From Nuvoton Company ™ ® To Download NuMicro Keil uVision IDE driver ™ Step1 To connect to the Nuvoton NuMicro Website: http://www.nuvoton.com/NuMicro Step2 Step 3 ® Step 4 To download the :uMicro Keil uVision IDE driver Arrow.com. -
Page 12: To Download Numicro Iar Ewarm Driver
NuTiny-SDK-M051 User’s Manual ™ To Download NuMicro IAR EWARM driver ™ Step1 To connect to the Nuvoton NuMicro Website: http://www.nuvoton.com/NuMicro Click here to enter Devlopment Tools page Step2 Step 3 ® ™ To download the NuMicro IAR Embeded Workbench driver Step 4 Arrow.com. -
Page 13: Revision History
NuTiny-SDK-M051 User’s Manual ™ To Download NuMicro M051 series BSP Software Library ™ Step1 To connect to the Nuvoton NuMicro Website: http://www.nuvoton.com/NuMicro Step2 ™ Step 3 To download the NuMicro M051 series software library 7 Revision History Version Date Page Description Aug. - Page 14 Nuvoton customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Nuvoton for any damages resulting from such improper use or sales.
