Technical Support and E-Warranty Certificate www.vevor.com/support

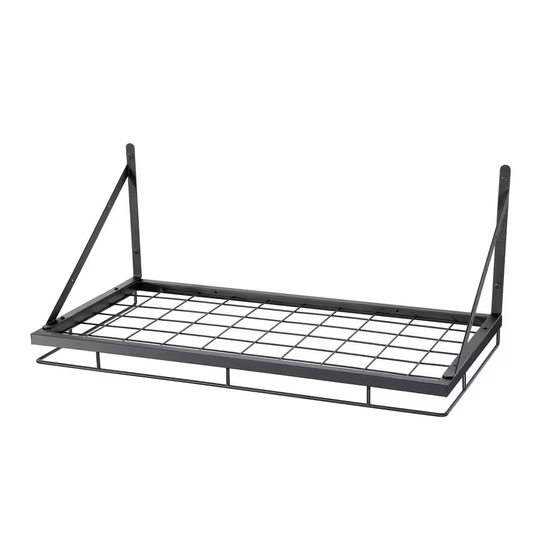

HANGING POT RACK
USER MANUAL
BB-BGGJ01
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR BB-BGGJ01
Summary of Contents for VEVOR BB-BGGJ01
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support HANGING POT RACK USER MANUAL BB-BGGJ01 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
-
Page 3: Product Parameters
PRODUCT PARAMETERS Loading Model Product Size（W*D*H） Capacity 24" x 12"x 10-3/5" BB-BGGJ01 (610x305x269mm) 55 lb (Max) ASSEMBLY PRECAUTIONS 1. Assembly needs to follow these instructions. Incorrect assembly can be a hazard. 2. Wear safety goggles and heavy-duty work gloves during assembly. -
Page 4: Use Precautions
USE PRECAUTIONS WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING: 1. This product is not a toy. Do not allow children to play with or approach this item. 2. Use as intended only. Do not sit or stand on the product. 3. -
Page 5: Parts List
PARTS LIST Base Frame Iron bar M4*8 ST4*16 Name For wooden Parts Quantiy 1 PCS 2 PCS 2PCS 8 PCS 4 PCS Name M4*30 Plastic plug positioning Hook card (For wall) (For wall) Parts Quantiy 6 PCS 6 PCS 1 PCS 12 PCS... -
Page 6: Assembly Steps
ASSEMBLY STEPS Installation Mode 1 STEP1 1.Put the positioning card（H）on the walland punch holes. （If install on wooden material,mark the punch position with pencil.）... - Page 7 STEP2 2.Install the base (A) on to the frame (B) with M4*8 screws(D). STEP3 3.Put the plastic plugs(G) into the hole first, the product on the wall with then install M4*30 screws (F).
- Page 8 (If install on wooden material, install the product on the wall with M4*16 screws(E) without plastic plugs.） COMPLETION Install the Iron bars(C) onto the frame(B) With M4*8 screws(D) and finish the installation.
- Page 9 Installation Mode 2 STEP1 1.Put the positioning card（H）on the walland punch holes. （If install on wooden material,mark the punch position with pencil.）...
- Page 10 STEP3 2.Install the base (A)on to the frame (B) with M4*8 screws (D). COMPLETION 3.Put the plastic plugs(G) into the holes first,then install the product on the wall with M4*30 screws (F).
- Page 11 （If install on wooden material,install the product on the wall with M4*16 screws(E) without plastic plugs.） Cleaning -For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry with a clean lint free cotton cloth. -Window cleaning liquid or a similar cleaning liquid can be used to clean the surface.
- Page 12 Support and E-Warranty Certificate www.vevor.com/support...
