    1.1 Description RF-TI1352P2 is an RF module based on TI SoC CC1352P7 with an integrated power amplifier. It integrates a 48 MHz and a 32.768 kHz crystal, a 256 KB ROM, a 704 KB Flash, and the IPEX connectors and half-hole RF output pins of different radio frequency to guarantee the external antenna connection.
  • Page 3: Applications

    – wireless keypads • Gaming – electronic and robotic toys communications – Long-range sensor • Wearables (non-medical) – smart trackers, applications • Other alternative energy – energy harvesting smart clothing Shenzhen RF-star Technology Co., Ltd. Page 2 of 22...
  • Page 4: Functional Block Diagram

    Reset 1.8 V ~ 3.8 V Figure 1. Functional Block Diagram of RF-TI1352P2 1.5 Part Number Conventions The part numbers are of the form of RF-TI1352P2 where the fields are defined as follows: 1352 RF-STAR Module Version TheSecond PA Version...
  • Page 5: Table Of Contents

    4.6.1 Unsatisfactory Transmission Distance ..................16 4.6.2 Vulnerable Module ..........................17 4.6.3 High Bit Error Rate ..........................17 4.7 Electrostatics Discharge Warnings ......................17 4.8 Soldering and Reflow Condition ......................... 17 Shenzhen RF-star Technology Co., Ltd. Page 4 of 22...
  • Page 6 RF-TI1352P2 www.szrfstar.com V1.0 - Oct., 2023 5 Optional Package Specification ..........................19 6 Revision History ................................21 7 Contact Us ..................................22 Shenzhen RF-star Technology Co., Ltd. Page 5 of 22...
  • Page 7: Module Configuration And Functions

    RF-TI1352P2 www.szrfstar.com V1.0 - Oct., 2023 2 Module Configuration and Functions 2.1 Module Parameters Table 1. Parameters of RF-TI1352P2 Chipset CC1352P7 Supply Power Voltage 1.8 V ~ 3.8 V, 3.3 V is recommended Frequency 800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz +20.0 dBm (Sub-1 GHz)
  • Page 8: Module Pin Diagram

    Type of Antenna Half-hole ANT interface, IPEX connector -40 ℃ ~ +85 ℃ Operating Temperature -40 ℃ ~ +125 ℃ Storage Temperature 2.2 Module Pin Diagram Figure 3. Pin Diagram of RF-TI1352P2 Shenzhen RF-star Technology Co., Ltd. Page 7 of 22...
  • Page 9: Pin Functions

    RF-TI1352P2 www.szrfstar.com V1.0 - Oct., 2023 3.3 Pin Functions Table 2. Pin Functions of RF-TI1352P2 Name Chip Pin Function Description None connect -None connect DIO5 DIO_5 Digital GPIO, high-drive capability DIO6 DIO_6 Digital GPIO, high-drive capability DIO7 DIO_7 Digital GPIO, high-drive capability...
  • Page 10 Digital or Analog GPIO, analog capability None connect None connect Ground Ground 2G4-OUT RF Out 2.4 GHz antenna pinout Antenna Ground Antenna Ground SUB-OUT RF Out Sub 1GHz antenna pinout Ground Ground Shenzhen RF-star Technology Co., Ltd. Page 9 of 22...
  • Page 11: Specifications

    Functional operation does not guarantee performance beyond the limits of the conditional parameter values in the table below. Long-term work beyond this limit will affect the reliability of the module more or less. Table 3. Recommended Operating Conditions of RF-TI1352P2 Items Min.
  • Page 12: Application, Implementation, And Layout

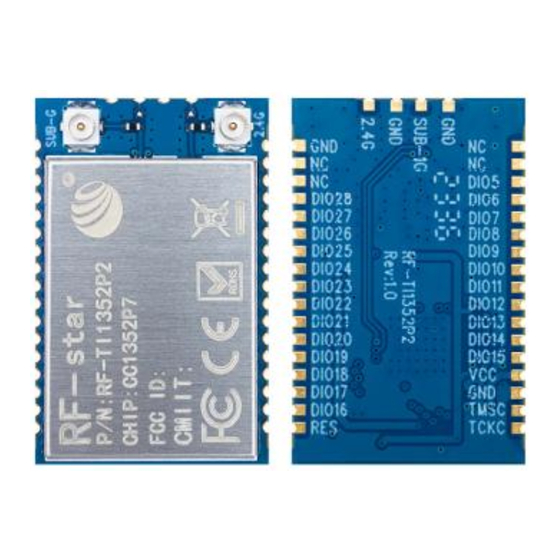

    RF-TI1352P2 www.szrfstar.com V1.0 - Oct., 2023 4 Application, Implementation, and Layout 4.1 Module Photos Figure 4. Photos of RF-TI1352P2 4.2 Recommended PCB Footprint Figure 5. Recommended PCB Footprint of RF-TI1352P2 Shenzhen RF-star Technology Co., Ltd. Page 11 of 22...
  • Page 13: Schematic Diagram

    RF-TI1352P2 www.szrfstar.com V1.0 - Oct., 2023 4.3 Schematic Diagram Figure 6. Schematic Diagram of RF-TI1352P2 4.4 Antenna 4.4.1 Antenna Design Recommendation 1. The antenna installation structure has a great influence on the module performance. It is necessary to ensure that the antenna is exposed and preferably vertically upward.
  • Page 14: Antenna Output Mode Modification

    Move the component in the red circle to the green circle, vice versa. The left is for Sub-1 GHz and the right is for 2.4 GHz. Figure 8. Antenna Output Mode Modification of RF-TI1352P2 4.4.3 External Antenna Design Recommendation of the Half-Hole ANT Pin 1.
  • Page 15 Example: FR4 is a double-layer board with a thickness of 1.0 mm. Through calculation, the width of the trace is 0.8254 mm, and the spacing between traces and copper is 0.22 mm. Figure 11. SI9000 Impedance Calculation Diagram Shenzhen RF-star Technology Co., Ltd. Page 14 of 22...
  • Page 16: Ipex Connector Specification

    V1.0 - Oct., 2023 4.4.4 IPEX Connector Specification RF-TI1352P2 module is integrated the IPEX version 1 antenna seat, the specification of the antenna seat is as follows: Figure 12. Specification of Antenna Seat The specification of the IPEX wire end is as follows: Figure 13.
  • Page 17: Trouble Shooting

    4. The incorrect power register set or the high data rate in the open air may shorten the communication distance. The higher the data rate, the closer the distance. Shenzhen RF-star Technology Co., Ltd. Page 16 of 22...
  • Page 18: Vulnerable Module

    3. If the extension wire or feeder wire is of poor quality or too long, the bit error rate will be high. 4.7 Electrostatics Discharge Warnings The module will be damaged by the discharge of static. RF-star suggests that all modules should follow the 3 precautions below: 1.
  • Page 19 Max. 6 ℃/s Time from 25 ℃ to Peak Temperature (t Max. 6 minutes Max. 8 minutes Time of Soldering Zone (t 20±10 s 20±10 s Figure 14. Recommended Reflow for Lead-Free Solder Shenzhen RF-star Technology Co., Ltd. Page 18 of 22...
  • Page 20 The default package method is . If you need the modules to be shipped by tape & reel, pls contact us in advance. Figure 15. Default Package by Tray Shenzhen RF-star Technology Co., Ltd. Page 19 of 22...
  • Page 21 RF-TI1352P2 www.szrfstar.com V1.0 - Oct., 2023 Figure 16. Package by Tape & Reel Shenzhen RF-star Technology Co., Ltd. Page 20 of 22...
  • Page 22 1. The document will be optimized and updated from time to time. Before using this document, please make sure it is the latest version. 2. To obtain the latest document, please download it from the official website: www.rfstariot.com and www.szrfstar.com. Shenzhen RF-star Technology Co., Ltd. Page 21 of 22...
