- Page 1 RF-BM-ND06 nRF52840 Multi-Protocol Module Supporting BLE5.3, ZigBee, Thread Version 1.2 Shenzhen RF-star Technology Co., Ltd. May 25 , 2023 All rights reserved. Those responsible for unauthorized reproduction will be prosecuted.
-
Page 2: Device Overview
V1.2 - May, 2023 1 Device Overview 1.1 Description RF-BM-ND06 is an RF module based on Nordic multiprotocol SoC nRF52840-QIAA-R with best-in-class 32-bit ARM ® Cortex -M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, a power filter, an antenna matching, and a high- ®... -
Page 3: Functional Block Diagram
Reset 1.7 V ~ 5.5 V Figure 1. Functional Block Diagram of RF-BM-ND06 1.5 Part Number Conventions The part numbers are of the form of RF-BM-ND06 where the fields are defined as follows: Company Name Module Version nRF52840 Second Version... -
Page 4: Table Of Contents
4.7.3 High Bit Error Rate ..........................16 4.8 Electrostatics Discharge Warnings ......................16 4.9 Soldering and Reflow Condition ......................... 16 5 Optional Package Specification ..........................18 6 Certification ..................................20 6.1 RoHS ..................................20 Shenzhen RF-star Technology Co., Ltd. Page 3 of 23... - Page 5 RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 6.2 FCC ..................................20 6.3 CE ..................................21 6.4 SRRC ................................... 21 7 Revision History ................................22 8 Contact Us ..................................23 Shenzhen RF-star Technology Co., Ltd. Page 4 of 23...
-
Page 6: Module Configuration And Functions
RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 2 Module Configuration and Functions 2.1 Module Parameters Table 1. Parameters of RF-BM-ND06 Chipset nRF52840 Supply Power Voltage 1.7 V ~ 5.5 V, recommended to 3.3 V Frequency 2402 MHz ~ 2480 MHz Transmit Power -20.0 dBm ~ +8.0 dBm... -
Page 7: Module Pin Diagram
RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 2.2 Module Pin Diagram Figure 3. Pin Diagram of RF-BM-ND06 2.3 Pin Functions Table 2. Pin Functions of RF-BM-ND06 Name Chip Pin Pin Function Description P0.12 Digital General purpose I/O P0.12 TRACEDATA1 Trace data... - Page 8 General purpose I/O. Standard drive, low-frequency P1.03 P1.03 Digital I/O only General purpose I/O. Standard drive, low-frequency P1.04 P1.04 Digital I/O only General purpose I/O. Standard drive, low-frequency P1.05 P1.05 Digital I/O only Shenzhen RF-star Technology Co., Ltd. Page 7 of 23...
- Page 9 P0.31/AIN7 Digital or Analog Standard drive, low-frequency I/O only P0.26 P0.26 Digital General purpose I/O P0.27 P0.27 Digital General purpose I/O P0.04 P0.04/AIN2 Digital or Analog General purpose I/O, Analog input Shenzhen RF-star Technology Co., Ltd. Page 8 of 23...
- Page 10 General purpose I/O P1.08 P1.08 Digital General purpose I/O P1.09 Digital General purpose I/O P1.09 TRACEDATA3 Trace data Trace buffer TRACEDATA[3] P0.11 Digital General purpose I/O P0.11 TRACEDATA2 Trace data Trace buffer TRACEDATA[2] Shenzhen RF-star Technology Co., Ltd. Page 9 of 23...
-
Page 11: Specifications
The functional operation does not guarantee performance beyond the limits of the conditional parameter values in the table below. Long-term work beyond this limit will affect the reliability of the module more or less. Table 3. Recommended Operating Conditions of RF-BM-ND06 Items Condition Min. -
Page 12: Application, Implementation, And Layout

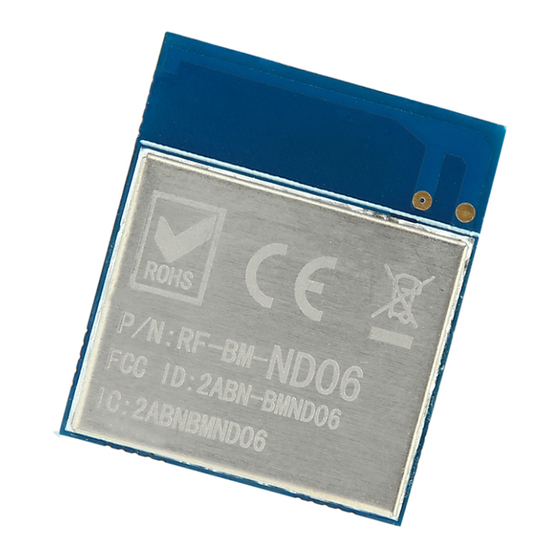

RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 4 Application, Implementation, and Layout 4.1 Module Photos Figure 4. Photos of RF-BM-ND06 4.2 Recommended PCB Footprint Figure 5. Recommended PCB Footprint of RF-BM-ND06 (mm) Shenzhen RF-star Technology Co., Ltd. Page 11 of 23... -
Page 13: Schematic Diagram
RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 4.3 Schematic Diagram Figure 6. Schematic Diagram of RF-BM-ND06 Shenzhen RF-star Technology Co., Ltd. Page 12 of 23... -
Page 14: Reference Design
RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 4.4 Reference Design Figure 7. Reference Design of RF-BM-ND06 Shenzhen RF-star Technology Co., Ltd. Page 13 of 23... -
Page 15: Antenna
Please ensure a stable power supply and no frequently fluctuated voltage. 3. When designing the power supply circuit for the module, it is recommended to reserve more than 30% of the margin, Shenzhen RF-star Technology Co., Ltd. Page 14 of 23... -
Page 16: Trouble Shooting
5. The low voltage of the power supply is lower than the recommended value at ambient temperature, and the lower the voltage, the smaller the power is. 6. The unmatchable antennas and modules or the poor quality of the antenna will affect the communication distance. Shenzhen RF-star Technology Co., Ltd. Page 15 of 23... -
Page 17: Vulnerable Module
3. If the extension wire or feeder wire is of poor quality or too long, the bit error rate will be high. 4.8 Electrostatics Discharge Warnings The module will be damaged for the discharge of static. RF-star suggests that all modules should follow the 3 precautions below: 1. - Page 18 Max. 6 ℃/s Time from 25 ℃ to Peak Temperature (t Max. 6 minutes Max. 8 minutes Time of Soldering Zone (t 20±10 s 20±10 s Figure 9. Recommended Reflow for Lead-Free Solder Shenzhen RF-star Technology Co., Ltd. Page 17 of 23...
-
Page 19: Optional Package Specification
The default package method is . If you need the modules to be shipped by tape & reel, pls contact us in advance. Figure 10. Default Package by Tray Shenzhen RF-star Technology Co., Ltd. Page 18 of 23... - Page 20 RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 Figure 11. Package by Tape & Reel Shenzhen RF-star Technology Co., Ltd. Page 19 of 23...
-
Page 21: Certification
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2ABN2-RF-BM-ND06 Figure 13. FCC Certificate Shenzhen RF-star Technology Co., Ltd. Page 20 of 23... - Page 22 RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 6.3 CE Figure 14. CE Certificate 6.4 SRRC SRRC ID: 20218116 Figure 15. SRRC Certificate Shenzhen RF-star Technology Co., Ltd. Page 21 of 23...
- Page 23 Update the reference design. 2022.12.06 V1.1 Update the pin functions. 2023.03.06 V1.2 Update the Recommended PCB Footprint of RF-BM-ND06. Update MSL level. 2023.05.25 V1.2 Update the Shenzhen office address. Note: 1. The document will be optimized and updated from time to time. Before using this document, please make sure it is the latest version.
- Page 24 RF-BM-ND06 www.szrfstar.com V1.2 - May, 2023 8 Contact Us SHENZHEN RF-STAR TECHNOLOGY CO., LTD. Shenzhen HQ: Add.: Room 502, Podium Building No. 12, Shenzhen Bay Science and Technology Ecological Park, Nanshan District, Shenzhen, Guangdong, China, 518063 Tel.: 86-755-8632 9829 Chengdu Branch: Add.: N2-1604, Global Center, North No.
