Installation

• The product's air flow measurement requires a straight
duct section as per the installation figures.
• In unfavourable conditions before or with disruption,
the product's tolerances cannot be guaranteed.
• Installation is position independent.
• The product can be installed horizontally or vertically.
• Instructions for Use are supplied with the product on
delivery, but can also be downloaded from www.
swegon.com.
Straight duct section requirements
1.
2.
3 * .
4.
5.
6.

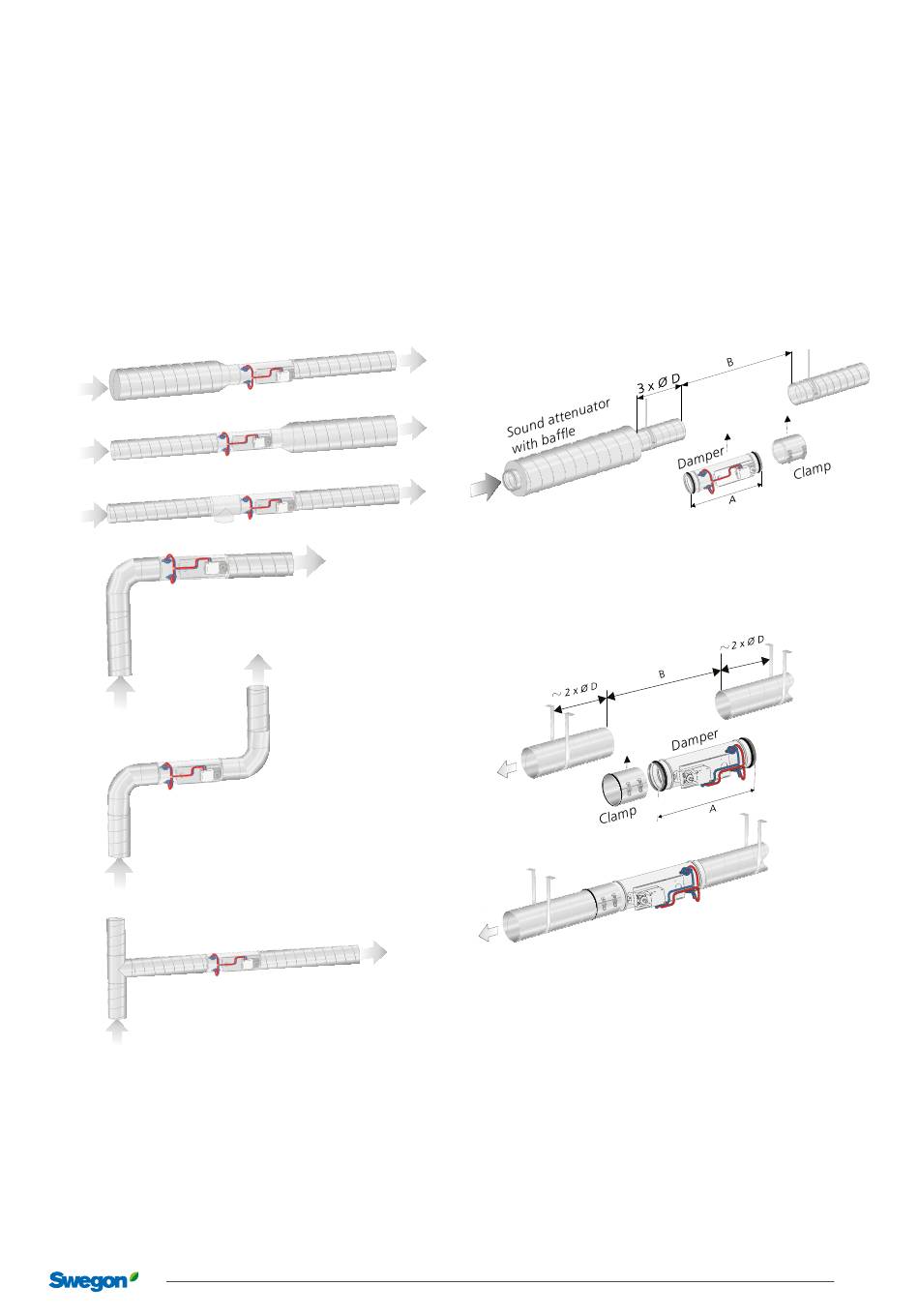

Figure 2. Straight duct section requirements in circular ducts,
number of Ø before product:
Image 1-5 require no straight duct section (image 3
a T piece with a cleaning hatch).
Image 6 requires a straight duct section before the damper
equivalent to 4 x the diameter of the duct.
Straight duct section requirements in case of sound
attenuator with baffle
Figure 3. Straight duct section requirements 3 x Ø in case of
sound attenuator with baffle or centre body.
Installation in the duct system
Figure 4. Installation in the duct system. The ducts must be firmly
fixed to the frame of the building on each side of the product.
illustrates
*
20230929
REACT V BBAC
Swegon reserves the right to alter specifications.
3
