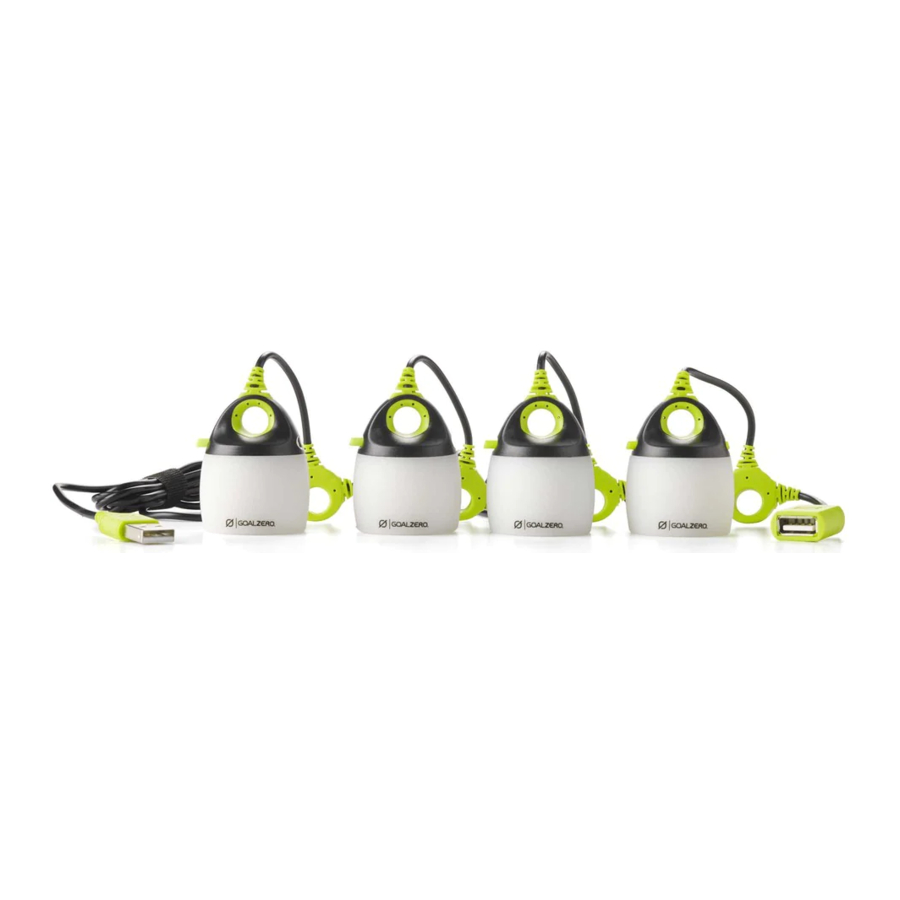

Goal Zero Light-a-Life Quad - USB Light Set Manual

GET TO KNOW YOUR GEAR

Power Switch
high/low settings

USB Input
for powering or chaining

Shade
Area Light (up)
Lantern Light (down)

USB Output
for chaining

HOW IT WORKS

1. Insert the USB plug into any live USB port. We recommend pairing it with a Goal Zero recharger or power pack.
2. Push the power switch on the top of individual lights to turn them on, pushing the the switch all the way through for full brightness and halfway through for low brightness.
3. Slide shades up or down for area or lantern light.

   While in use, the metal neck of the individual Light-A-Life minis will become hot to the touch.

CHAINING

1. With one Light-A-Life Quad plugged in, connect an additional Quad together via the USB port.
   You can chain up to 2 Light-A-Life Quads together. Chained lights can be turned on and off independent of each other.

TECHNICAL SPECIFICATIONS

Light-A-Life Quad
Light (output)	6.3W max
LED Rating	Color Temperature: 3500K LED High: 110 Lumens each Low: 30 Lumens each
Input (USB-male)	5V, 1.7A (6.3W max)
General
Chainable	Up to 2
Weight	8.8 oz (250g)
Dimensions (compact)	1.48Dia x 2.23in (37.7Dia x 56.7mm)
Dimensions (extended)	1.48Dia x 2.82in (37.7Dia x 71.5mm)
Operating usage temp.	0°-140°F (-18°-60°C)
Certs
Warranty	12 months
Use With	Goal Zero rechargers and power packs
