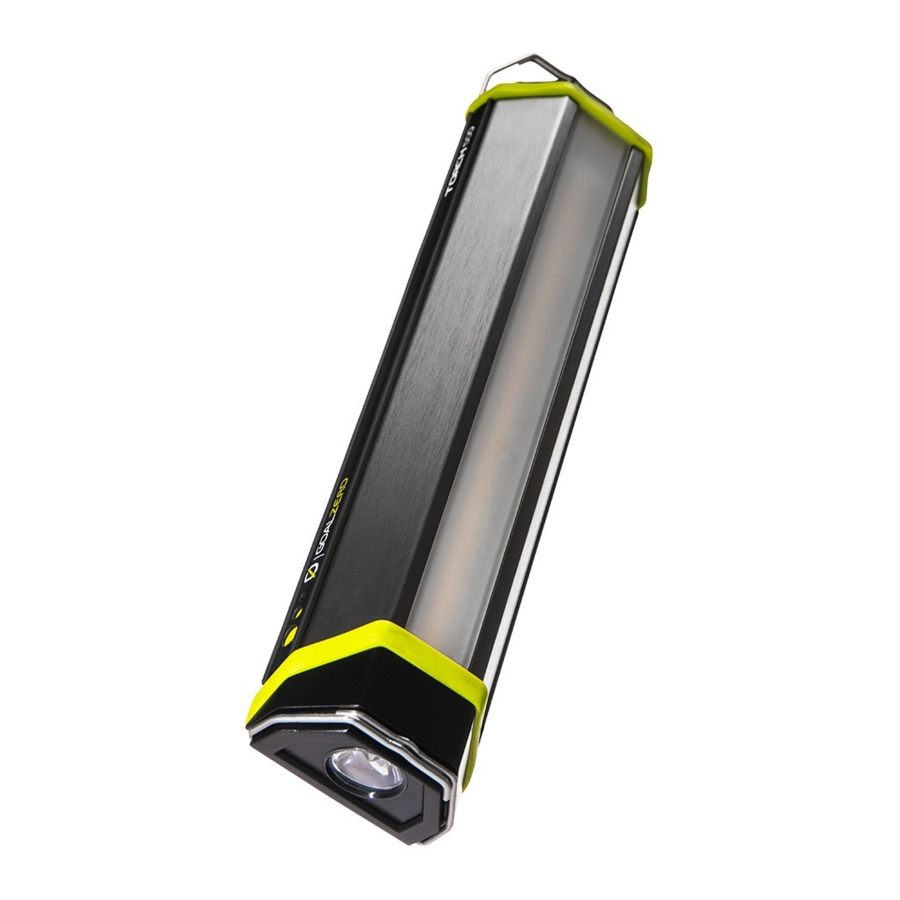

Goal Zero Torch 500 - Multi-Purpose Light + USB Power Bank Manual

GET TO KNOW YOUR GEAR

Built-in Solar Panel
Charge up the Torch in 23 Hrs (full sun). Add additional solar panels for quicker charge time.

WHAT IT POWERS

POV Camera
3 Recharges

Phone
1 Recharges

Tablet
50% Boost

TWO WAYS TO CHARGE

Any USB-A/USB-C Port

Solar

GET TO KNOW YOUR GEAR

1A USB-C Input Port
5V, up to 1A (5W max)

Spotlight
On/Off

1A USB-A Output Port
5V, up to 2.1A (10.5W max), regulated

LED Battery Indicator
Will flash when charging.

Floodlight
On/Off

HOW IT WORKS

Adjust Light Settings

Floodlight and Spotlight operate with three settings: high, medium, and low.

Click the on/off button to cycle through each setting.

1. Click the button once for high
2. Click twice for medium
3. Click three times for low.

NOTE: Each click must be performed within 5 seconds of the previous click in order to progress to the next setting. Wait 5 seconds and click a second time on any of the above settings to turn the light off.

NOTE: If the Torch overheats, the lights will dim in order to cool it down. If this occurs, you may continue to use the Torch as is.

Do not leave the Torch in the window of a vehicle in the hot sun. This can cause damage to the product.

FREQUENTLY ASKED QUESTION

Q: How do I know if the solar panel is working?
A: You'll know the solar panel is working when the blue LED indicator lights turn on and start blinking. Angle the solar panel toward the sun for the best charging experience.
PRO TIP: Leave your Torch 500 in a windowsill so it's always charged and ready to go.

TECHNICAL SPECIFICATIONS

Charge times:
Goal Zero Nomad 10	4-6 hrs
Built-in Solar	23-46 hrs
USB Source	4 hrs
Run time
Spotlight (low power)	50 hrs
Spotlight (medium power)	7.5 hrs
Spotlight (high power)	3.5 hrs
Floodlight (low power)	50 hrs
Floodlight (medium power)	7 hrs
Floodlight (high power)	3 hrs
Both Lights (high power)	2 hrs
Battery
Cell Chemistry	Li-NMC
Cell Capacity	18.7Wh (3.6V, 5200mAh)
Lifecycles	Hundreds of cycles
Shelf-life	Charge every 3-6 months
Management System	Charging and low-battery protection built-in
Light
Spot Light	300 Lumens
Flood Light	300 Lumens
Solar
Rated Power:	1.2W
Cell Type	Monocrystalline
Ports
USB-A Port (Output)	5V, up to 2.1A (10.5W max), regulated
USB-C Port (Input)	5V, up to 1A (5W max)
General
Weight	12.8 oz (363 g)
Dimensions	8.8 x 2.2 x 1.4 in (22.4 x 5.6 x 11.4 cm)
Operating Usage Temperature	32-104 F (0-40 C)
Certs
	Non-replaceable light sources
Warranty	12 Months
