Goal Zero Light-a-Life Mini - USB Chainable Light 4-Pack with Shades Manual

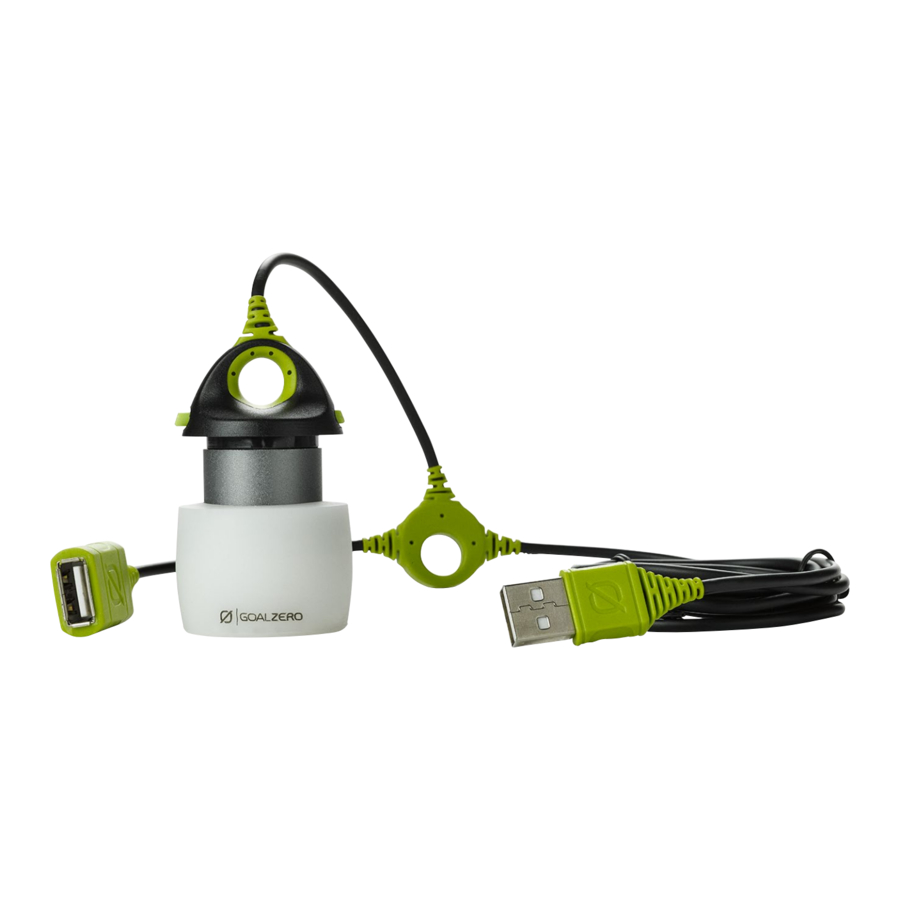

GET TO KNOW YOUR GEAR

Power Switch
off/ low/ high settings

USB Output
for chaining

Shade
Area Light (up)
Lantern Light (down)

USB Input
for powering or chaining

HOW IT WORKS

1. Insert the USB plug into any live USB port. We recommend pairing it with a Goal Zero Recharger or Power Pack.
2. Push the power switch on the top of individual lights to turn them on, pushing the switch all the way through for full brightness and halfway through for low brightness.
3. Slide shades up or down for area or lantern light.

While in use, the metal neck of the Light-A-Life mini will become hot to the touch.

CHAINING

With one Light-A-Life mini plugged in, connect additional lights together via the USB ports.
You can chain up to 4 Light-A-Life minis together. Chained lights can be turned on and off independent of each other.

TECHNICAL SPECIFICATIONS

Light-A-Life mini
Light (output)	1.9W max
LED Rating	3500K LED High: 110 Lumens each Low: 30 Lumens each
Input (USB-male)	5V, 0.38A (1.9W max)
General
Chainable	Up to 4
Weight	2.4oz (68g)
Dimensions (compact)	1.48Dia x 2.23in (37.7Dia x 56.7mm)
Dimensions (extended)	1.48Dia x 2.82in (37.7Dia x 71.5mm)
Operating Usage Temp.	0°-140°F (-18°-60°C)
Certs
Warranty	12 months
Use With	Goal Zero rechargers and power packs
