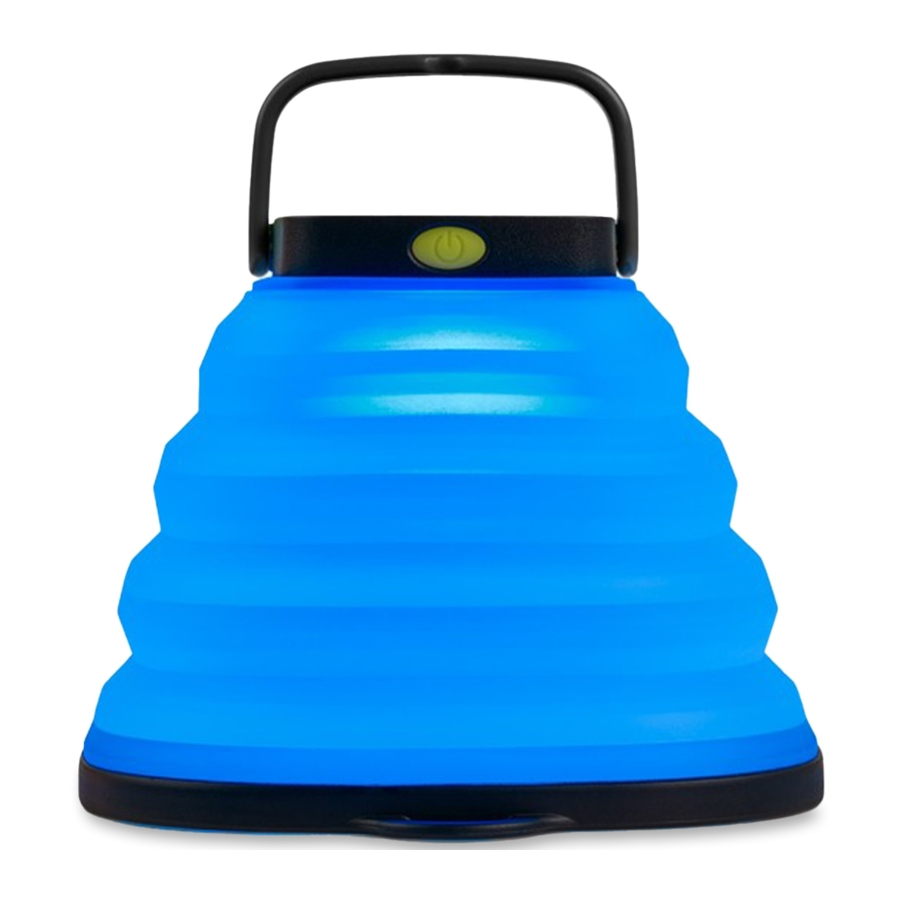

Goal Zero Crush Light Chroma - LED Lantern Manual

GET TO KNOW YOUR GEAR

Rechargeable by Sun

USB Rechargeable

Hour Runtime on Lowest Setting

Weatherproof IPX4 Rated

HOW IT WORKS

TIP:
Fully charge the crush light before its first use.
With the lantern turned on, double-click the on/off button to switch from white light to color mode.

3 WHITE MODES + CANDLE FLICKER

Press 1X for High
Press 2X for Medium
Press 3X for Low
Press and hold for 2 seconds for candle flicker
Press and hold for 3 seconds to turn it off

MULTI-COLOR FADE + 6 COLOR MODES

Double-click for Multi-color Fade Mode
Press Again for Individual Color Modes:

Press 1X Green
Press 2X Aqua
Press 3X Blue
Press 4X Magenta
Press 5X Red
Press 6X Orange

Double-click to Switch back to White LED mode
NOTE: Runtimes for color modes vary depending on each color.

RECHARGE YOUR CRUSH LIGHT CHROMA LANTERN

Recharge from USB or solar panel.

Know it's charging with the LED indicator light next to the charging port turns red. The Crush Light is fully charged when the light turns green.

Helpful Recharging Hint:
Place your Crush Light so the solar panel is directly angled at the sun. For the best charge, reposition it throughout the day so it stays at the best angle.

TECHNICAL SPECIFICATIONS

Battery
Cell chemistry	Li-ion Polymer
Cell capacity	1.85Wh (3.7V, 500mAh)
Lifecycles	Hundreds of cycles
Shelf-life	Charge every 3-6 months
Solar
Rated Power	~0.12W
Cell type	Monocrystalline
Ports
USB port (input)	5V, up to 0.5A (2.5W max)
General
Durability	IPX4
Weight	3.2oz (91g)
Dimensions (Open)	4.95 x 4.95 x 3.9in (125 x 125 x 100mm)
Dimensions (Closed)	4.95 x 4.95 x 0.6in (125 x 125 x 15mm)
Operating usage temp.	32-104 F (0-40 C)
Certs
Warranty	12 months
