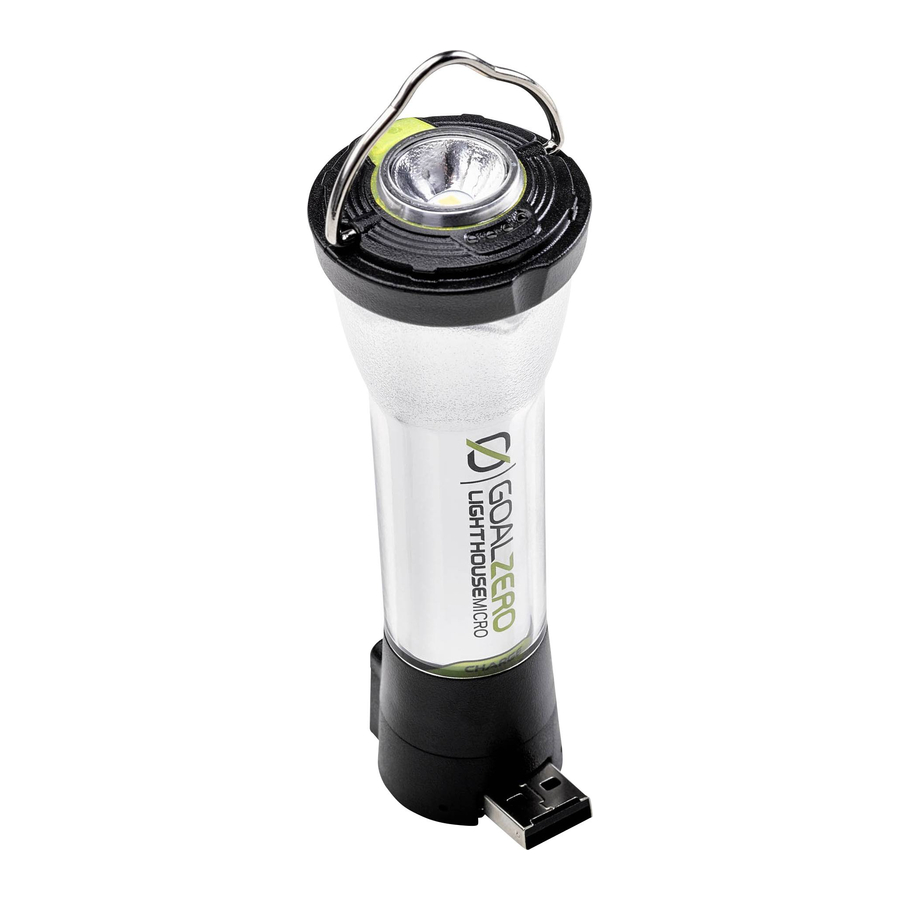

Goal Zero Lighthouse Micro Charge - Lantern + Flashlight + Recharger Manual
GET TO KNOW YOUR GEAR
PHONE
1 Recharge
USB
Rechargeable
Hour Runtime on Lowest Setting
Weatherproof
IPX6 Rated
Battery Indicator
25%
50%
75%
100%
HOW IT WORKS
- Push the On/Off/Dimmer Button once for flashlight mode, twice for full-brightness lantern mode, and three times for half-brightness lantern mode.
- Press and hold to dim each mode.
- Using the flip-out USB tip, plug Lighthouse Micro Flash Charge into any powered USB port to charge it up in 3.5 hours. Also charges from 3.5 hours of full sun from the Nomad® 7 (Sold Separately)
- Using an appropriate charging cable, plug into the USB output to charge your gear. Still in DEMO MODE? See the front cover for instructions.
| RUNTIME | LUMENS | CHARGE TIME | ||
| Lantern - One Side (Low) | 170 hours | 7 lumens | USB source | 3.5 hours |
| Lantern - One Side (High) | 15 hours | 75 lumens | Nomad 7 | 3.5 hours |
| Lantern - Both Sides (Low) | 80 hours | 20 lumens | ||
| Lantern - Both Sides (High) | 7 hours | 150 lumens | ||
| Flashlight (Low) | 100 hours | 15 Lumens | ||
| Flashlight (High) | 8.5 hours | 115 Lumens | ||
RECHARGE YOUR LIGHTHOUSE MICRO FLASH
Recharge from USB or solar panel.
TECHNICAL SPECIFICATIONS
| Battery | |
| Cell chemistry | Li-ion NMC |
| Cell type Cell capacity | 18650 9.62Wh (3.7V, 2600mAh) |
| Lifecycles | hundreds of cycles |
| Shelf-life | Charge every 3-6 months |
| Ports | |
| USB port (input) | 5V, up to 1A (5W max) |
| General | |
| Durability | IPX6 |
| Weight | 3.07 oz (87g) |
| Dimensions | 4.4 x 1.5in (112 x 37.75mm) |
| Operating usage temp. | 32-104 F (0-40 C) |
| Certs |  |
| Warranty | 12 months |
