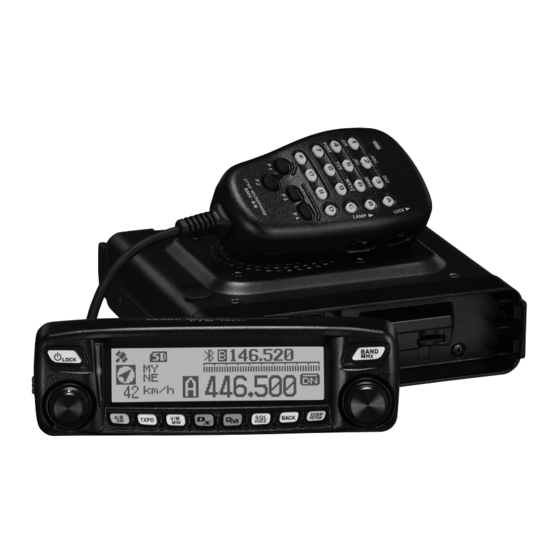

- Page 1 FTM-100DR/DE DSP Firmware Update Instruction Manual YAESU MUSEN CO., LTD.
-
Page 2: Important Notes
Introduction This application is a software tool for updating the firmware of transceivers manufactured by Yaesu Musen Co., Ltd. CAUTION! Be sure to confirm the model and the version of your transceiver before starting the update. Writing incorrect firmware to the transceiver may cause abnormal operation or failure. -
Page 3: Installation Procedure
Install / Uninstall Procedure Installation procedure 1. Download and unzip (extract) the update program. 2. When decompressed, the folder will automatically open. Click on the "D" icon in the folder to execute the update program. Uninstall procedure Delete the folder that is opened by the update program. The operation will end if the opened folder is deleted since no data will be written to the registry and system folder. -
Page 4: Using The Programmer
Writing incorrect firmware to the transceiver may cause abnormal operation or failure. Set the COM Port Set the COM Port number to the Port used in connecting the PC and FTM-100DR/DE. The port number can be verified by accessing the Windows PC device manager. - Page 5 The procedures listed above are required to prepare the transceiver to receive the firmware update, carry out the respective tasks as follows: Disconnect the power cable Turn OFF the power supply, and then disconnect the FTM-100DR/DE power cable from the 13.8 Volt DC cable.
- Page 6 Connect the data cable to the FTM-100DR/DE. Connect the serial data cable to the data jack at the rear of the FTM-100DR/DE. Connect the opposite end of the data cable to the USB port or the COM port of the PC. (Figure shows the...
- Page 7 Power supply connection Connect the power cable to the FTM-100DR/DE main body and apply 13.8 V. Switching to the DSP write mode Turn ON the power supply while pressing the keys. After “PUSH D KEY” appears on the screen, press the key.
- Page 8 Firmware Update Screen When the following pop-up screen is displayed, check the Version number. And then press the "OK" button. The update progress indicator is displayed when the firmware transfer begins. Wait for the updating to end. (The process takes about two minutes.)
- Page 9 CAUTION! Do not switch OFF the power supply to the PC or transceiver during the update. The transceiver may not function normally if the firmware transfer is interrupted during the up upgrade. When the following pop-up screen is displayed, upon completion of the update, press the "OK "...
- Page 10 Reassemble the FTM-100DR/DE for Normal Operations To return the transceiver to normal operation, complete the procedures listed above as follows: Disconnect the data cable Turn OFF the power supply, and then disconnect the serial data cable from the data jack at the rear of the FTM-100DR/DE.
- Page 11 Check the Version No. 1. Press and hold for over two seconds to turn the transceiver ON. 2. Press and hold key for over one second. 3. Rotate the DIAL to select [13 RST/CLONE], and then press The set-up menu will be displayed. ...
- Page 12 1705-B...
