Summary of Contents for arcelik 5797 NHI
- Page 1 5796 NH 5797 NHI...
- Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.
-
Page 3: Table Of Contents
CONTENTS 1 The refrigerator 4 Preparation 2 Important Safety 5 Using your refrigerator 11 Warnings Indicator Panel .........11 Intended use ........4 Door Open Warning ......15 For products with a water dispenser; .6 Freezing fresh food ......16 Child safety ........6 Recommendations for preservation of HCA Warning ........6 frozen food ........17 Things to be done for energy saving ..6... -

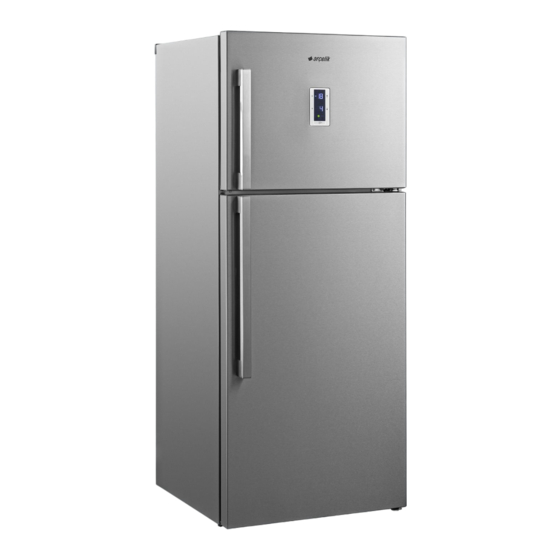

Page 4: The Refrigerator
The refrigerator Freezer compartment shelf Adjustable legs Auto Icematic Freezer compartment door racks Ice storage container Egg holder Auto Icematic water tank Water dispenser filling container Temperature setting indicator Water dispenser tank Adjustable glass shelves Fridge compartment door shelves Odor filter Sliding and rotary storage containers Illumination lens Freezer compartment... -
Page 5: Important Safety Warnings
Important Safety Warnings • Do not touch frozen food by hand; they Please review the following information. may stick to your hand. Failure to observe this information may cause injuries or material damage. Otherwise, all • Unplug your refrigerator before cleaning or warranty and reliability commitments will defrosting. - Page 6 • Do not use mechanical devices or other Bending cable may cause fire. Never means to accelerate the defrosting place heavy objects on power cable. Do process, other than those recommended not touch the plug with wet hands when by the manufacturer. plugging the product.
-
Page 7: For Products With A Water Dispenser
Ignore this warning if your product's • Refrigerator may move if adjustable legs cooling system contains R134a. are not properly secured on the floor. Properly securing adjustable legs on the Type of gas used in the product is stated in floor can prevent the refrigerator to move. -
Page 8: Recommendations For Freshfood Compartment
Recommendations for freshfood compartment OPTIONAL • Please do not let any foodstuff to come to contact with the temperature sensor in freshfood compartment.In order to maintain freshfood compartment at ideal storage temperature, the sensor must not be blocked by fodstuffs. •... -
Page 9: Installation
Installation Please remember that the manufacturer 2. Please install the 2 plastic wedges as shall not be held liable if the information illustrated in the figure. Plastic wedges will provide the required distance between given in the instruction manual is not your refrigerator and the wall in order to observed. -
Page 10: Electric Connection
Electric connection Placing and Installation Connect your product to a grounded If the entrance door of the room where socket which is being protected by a fuse the refrigerator will be installed is not wide with the appropriate capacity. enough for the refrigerator to pass through, Important: then call the authorised service to have them remove the doors of your refrigerator... -
Page 11: Adjusting The Legs
Adjusting the legs Preparation If your refrigerator is unbalanced; You can balance your refrigerator by Your refrigerator should be installed at turning the front legs of it as illustrated in least 30 cm away from heat sources such the figure. The corner where the leg exists as hobs, ovens, central heater and stoves is lowered when you turn in the direction and at least 5 cm away from electrical... -
Page 12: Using Your Refrigerator
Using your refrigerator Indicator Panel Indicator panels may vary depending on your product's model. Indicator panel aids in using your refrigerator with its audio and visual functions. * OPTIONAL Freezer Compartment Temperature Indicator Error Status Indicator Fridge Compartment Temperature Indicator Fridge Compartment Temperature Setting Button Economy Mode Indicator Ioniser Indicator... - Page 13 1. Freezer Compartment Temperature Indicator It indicates the temperature set for Freezer compartment. 2. Error Status Indicator your refrigerator does cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "e"...
- Page 14 * OPTIONAL Freezer compartment setting / Icematic Economic usage indicator on-off button Quick fridge function indicator Fridge compartment setting button Quick fridge function button Error status indicator Fridge compartment temperature setting Key lock indicator indicator Eco Extra Function indicator Quick freeze function button Eco Extra/Vacation Button Freezer compartment temperature setting indicator...
- Page 15 1. Freezer Compartment Setting / 4. Key Lock Indicator Icematic On-Off Button Use this function if you do not want your refrigerator temperature setting changed. This function allows you to make the freezer compartment temperature setting. Press Fridge compartment setting button Press this button to set the temperature of and Freezer compartment setting button the freezer compartment to -18, -20, -22...
-
Page 16: Door Open Warning
8. Ice Off indicator 13. Freezer Compartment Temperature Setting Indicator Icematic will not run when the indicator of Indicates the temperature set for the this function is active. See Item 1 to enable the Icematic. Freezer Compartment. 14. Quick Freeze Function 9. -
Page 17: Freezing Fresh Food
Freezing fresh food • Frozen food must be used immediately after they are thawed and they should • Wrap or cover the food before placing never be re-frozen. them in the refrigerator. • Please observe the following instructions • Hot food must cool down to the room to obtain the best results. -
Page 18: Recommendations For Preservation Of Frozen Food
Recommendations for Placing the food preservation of frozen food • Prepacked commercially frozen food should be stored in accordance with the Various frozen food such Freezer compartment frozen food manufacturer's instructions as meat, fish, ice cream, shelves vegetables and etc. for a ( 4 star) frozen food storage compartment. -
Page 19: Deep-Freeze Information
Deep-freeze information WARNING! • Foodstuff must be divided into portions Food must be frozen as rapidly as possible according to the family’s daily or meal based when they are put in a refrigerator in order to consumption needs. keep them in good quality. •... -
Page 20: Description And Cleaning Of Odor Filter
Description and cleaning of Snack compartments odor filter: Use these compartments for your food which you want store at a temperature a Odor filter prevents unpleasant odor build- few degrees below the fridge compartment. up in your refrigerator. You can increase the inner volume of your Pull the cover, into which the odor filter refrigerator by removing any of the snack is installed, downwards and remove as... -
Page 21: Water Dispenser
Water Dispenser Filling the water dispenser water tank Water tank filling reservoir is located inside (in some models) the door rack. Open the reservoir cover and Water dispenser is a very useful feature fill in clean potable water. And then, close based on reaching cold water without the lid. - Page 22 • Use clean and pure potable water only. • Capacity of the water tank is 3 liters; do not overfill. • Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass.
-
Page 23: Rotary Storage Container
Rotary storage container Water tray Water that dripped while using the water (in some models) dispenser accumulates in the spillage tray. Sliding body shelf can be moved to left or Take out the plastic strainer as shown in right in order to allow you place long bottles, the figure. -
Page 24: Blue Light
Blue light Auto Icematic (in some models) (in some models) Foodstuff stored in the crispers that are Auto Icematic system allows you to obtain enlightened with a blue light continue their ice from the refrigerator easily. Remove the photosynthesis by means of the wavelength water tank in the fridge compartment, fill it effect of blue light and thus, preserve their wilt water and install it back to obtain ice... -
Page 25: Icematic And Ice Storage Container
Icematic and ice storage container Using the Icematic Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice. Turn the knobs on it clockwise by 90 degrees. -
Page 26: Maintenance And Cleaning
Maintenance and cleaning Protection of plastic Never use gasoline, benzene or similar surfaces substances for cleaning purposes. We recommend that you unplug the Do not put the liquid oils or oil-cooked appliance before cleaning. meals in your refrigerator in unsealed Never use any sharp abrasive instrument, containers as they damage the plastic soap, household cleaner, detergent and... -
Page 27: Troubleshooting
Troubleshooting Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate. - Page 28 The refrigerator is running frequently or for a long time. New product may be wider than the previous one. Larger refrigerators operate for a longer period of time. It is normal that the product • The ambient temperature may be high. >>> operates for longer periods in hot ambient.
- Page 29 Temperature in the fridge or freezer is very high. Fridge compartment • The fridge temperature is adjusted to a very high value. >>> temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
- Page 30 Bad odor inside the refrigerator. Clean the inside of the refrigerator • No regular cleaning is performed. >>> regularly with a sponge, lukewarm water or sodium bicarbonate diluted in water. Use a different • Some containers or package materials may cause the smell. >>> container or different brand packaging material.
