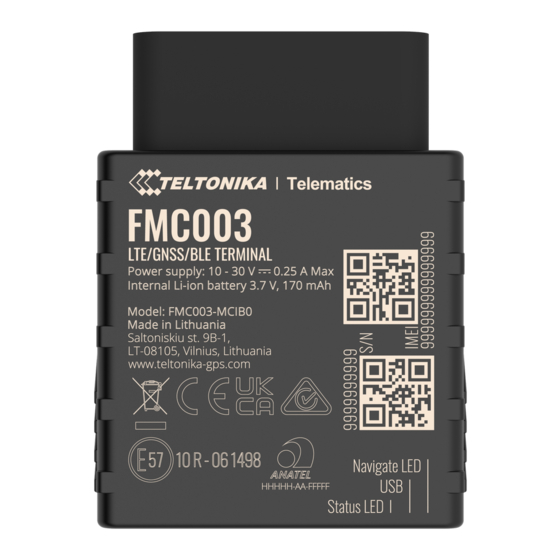

Teltonika FMC003 First Start-Up Quick Start Manual

Advanced plug and track real-time tracking terminal with gnss, gsm and bluetooth connectivity
Hide thumbs Also See for FMC003:
1
2
3
4
5

Advertisement

Table of Contents

https://wiki.teltonika-gps.com/view/FMC003_First_Start
FMC003 First Start
Main Page
>
OBD Trackers
Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth
connectivity
Contents
1 How to insert Micro-SIM card and connect battery
2 Pinout
2.1 PC Connection (Windows)
2.2 How to install USB drivers (Windows)
2.3 Configuration (Windows)
2.4 Quick SMS configuration
3 Safety information
3.1 Precautions
How to insert Micro-SIM card and connect battery
1.
Gently remove FMC003 cover using plastic pry tool from both sides.
Insert Micro-SIM card as shown with PIN request disabled or read
2.
enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
3.
Connect battery as shown to device. Position the battery in place where it does not obstruct
other components.
4.
Attach device cover back.
Device is ready to be connected.
Micro-SIM card insertion/removal must be performed when device is powered off –
external voltage and battery are disconnected. Otherwise Micro-SIM card might be
damaged or device will not detect it.
>
FMC003
> FMC003 First Start
Security info
how to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMC003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika FMC003

Summary of Contents for Teltonika FMC003

  • Page 1 2.4 Quick SMS configuration 3 Safety information 3.1 Precautions How to insert Micro-SIM card and connect battery Gently remove FMC003 cover using plastic pry tool from both sides. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator.

  • Page 2: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Configuration (Windows) At first FMC003 device will have default factory settings set. These settings should be changed according to the user's needs. Main configuration can be performed via Teltonika Configurator software.

  • Page 3: Quick Sms Configuration

    Maintenance and etc. FMC003 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
  • Page 4 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMC003 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.

  • Page 5: Safety Information

    Teltonika is not responsible for any harm caused by wrong cables used for connection between PC and FMC003. WARNING! Do not use FMC003 device if it distracts driver or causes inconvenience due to OBD II placement. Device must not interfere with driver.
