- Page 1 FMC00A Advanced OBDII tracker Quick Manual v1.4...
-
Page 2: Table Of Contents
How to install USB drivers (Windows) ................................6 Configuration........................................7 Quick SMS configuration ....................................9 Mounting recommendations..................................11 Basic characteristics ......................................12 LED indications ......................................... 12 Safety information ......................................15 Certification and Approvals .................................... 16 Warranty ........................................... 17 Warranty disclaimer ....................................... 17 Quick Manual v1.4 // FMC00A Telematics... -
Page 3: Know Your Device

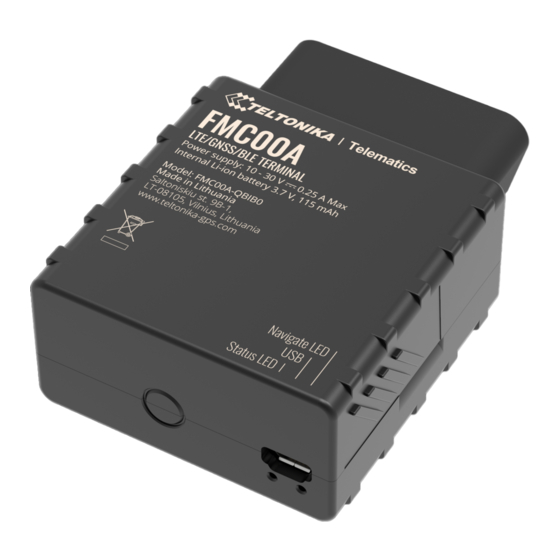

KNOW YOUR DEVICE TOP VIEW TOP VIEW (WITHOUT COVER) BATTERY MICRO-USB SOCKET OBDII CONNECTOR NAVIGATE STATUS MICRO-SIM SLOT Quick Manual v1.4 // FMC00A Telematics... -
Page 4: Pinout
GND (-) Ground GND (-) Ground CAN_H CAN high K-Line PWM_BUS- CAN_L CAN low L-Line PIN2 PIN4 PIN5 PIN6 PIN7 VCC (10 - 30)V Power supply (+10-30 FMC00A OBDII socket pinout DC(+) V DC) Quick Manual v1.4 // FMC00A Telematics... -
Page 5: Set Up Your Device
Teltonika Configurator Make sure that Micro- SIM card cut-off corner is pointing forward to slot. wiki.teltonika-gps.com/view/ FMC00A_Security_info wiki.teltonika.lt/view/Teltonika_ Configurator Quick Manual v1.4 // FMC00A Telematics... -
Page 6: Pc Connection (Windows)
PC CONNECTION (WINDOWS) Power-up FMC00A with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED indications ”. Connect device to computer using Micro-USB cable or Bluetooth connection: • Using Micro-USB cable •... -
Page 7: Configuration
CONFIGURATION At first FMC00A device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator software. Get the latest Configurator version from here . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed. - Page 8 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMC00A configuration using Configurator can be found in our Wiki wiki.teltonika-gps.com/view/FMC00A_Status_info wiki.teltonika-gps.com/view/FMC00A_Status_info#GNSS_Info wiki.teltonika-gps.com/view/FMC00A_Status_info#GSM_Info wiki.teltonika-gps.com/view/FMC00A_Status_info#I.2FO_Info wiki.teltonika-gps.com/view/FMC00A_Status_info#Maintenance...
-
Page 9: Quick Sms Configuration
2003 – APN password (if there are no APN password, empty field should be left) SERVER SETTINGS: 2004 – Domain 2005 – Port 2006 – Data sending protocol (0 – TCP, 1 – UDP) Quick Manual v1.4 // FMC00A Telematics... - Page 10 If device has made a stationary and record ignition is off After successful SMS configuration, FMC00A device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator SMS parameters wiki.teltonika-gps.com/view/Teltonika_Configurator...
-
Page 11: Mounting Recommendations
MOUNTING RECOMMENDATIONS CONNECTING THE DEVICE TO THE VEHICLE: Find OBDII connector in your vehicle. Most common OBDII connector locations. Quick Manual v1.4 // FMC00A Telematics... -
Page 12: Basic Characteristics
LTE CAT 1, UMTS Blinking every two Sleep mode seconds 3G bands WCDMA: B2/B4/B5 Blinking fast for a Modem activity short time 4G bands LTE FDD: B2/B4/B5/B12/B13 Device is not working or Device is in boot mode Quick Manual v1.4 // FMC00A Telematics... - Page 13 Power Consumption LED indication 2 status LED lights At 12V < 31 mA (nominal with no Micro-SIM load) Memory 128MB internal flash memory At 12V < 0.25A Max. (with full Load / Peak https://teltonika.lt/product/bluetooth-sensor/ Quick Manual v1.4 // FMC00A Telematics...
- Page 14 -20 °C to +45 °C for 1 month Battery storage temperature -20 °C to +35 °C for 6 months wiki.teltonika-gps.com/view/FMC00A_Features_settings 2 wiki.teltonika-gps.com/view/FMC00A_Sleep_modes#Deep_Sleep_mode 3 Features wiki.teltonika-gps.com/view/FOTA_WEB 4 Sensors Accelerometer wiki.teltonika-gps.com/view/FOTA 5 wiki.teltonika-gps.com/view/Teltonika_Configurator 6 wiki.teltonika-gps.com/view/FMBT_Mobile_application 7 Quick Manual v1.4 // FMC00A Telematics...
-
Page 15: Safety Information
DO NOT touch the device before unplugging the power supply. This message contains information on how to operate FMC00A All wireless data transferring devices produce safely. By following these requirements and recommendations, interference that may affect other devices which are you will avoid dangerous situations. -
Page 16: Certification And Approvals
Electronics and Electrical Equipment (EEE) within the EU, which bans from use All newest certificates may be found in our Wiki 10 different hazardous materials (to date). wiki.teltonika-gps.com/view/FMC00A_Certification_%26_Approvals wiki.teltonika-gps.com/view/FMC00A_RoHS 1 Quick Manual v1.4 // FMC00A Telematics... -
Page 17: Warranty
WARRANTY TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager. Contact us teltonika-gps.com/about-us/contacts All batteries carry a reduced 6 month warranty period.
