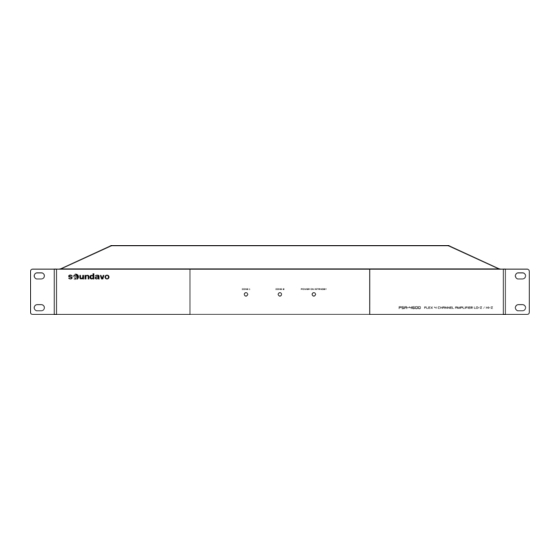

PSA-4600
PSA-4600 is a extremely flexible Direct Drive 4-channel digital amplifier designed with
the highest technology in materials and construction to provide excellent performance
and audio quality in your installation. With sufficient edibility to meet the demands in
residential or corporate environments that can be used in 4Ω or 8Ω in stereo mode, or
bridge mode in Hi-Z 70V or 100V selectable. Each channel can provide up to 150W x 2
RMS of continuous power in 4Ω or 8Ω in stereo mode, can also be bridged to support
up to 300W x 2 into 70V or 100V loads, ideal for Low-Z or High-Z residential and
corporate commercial applications.

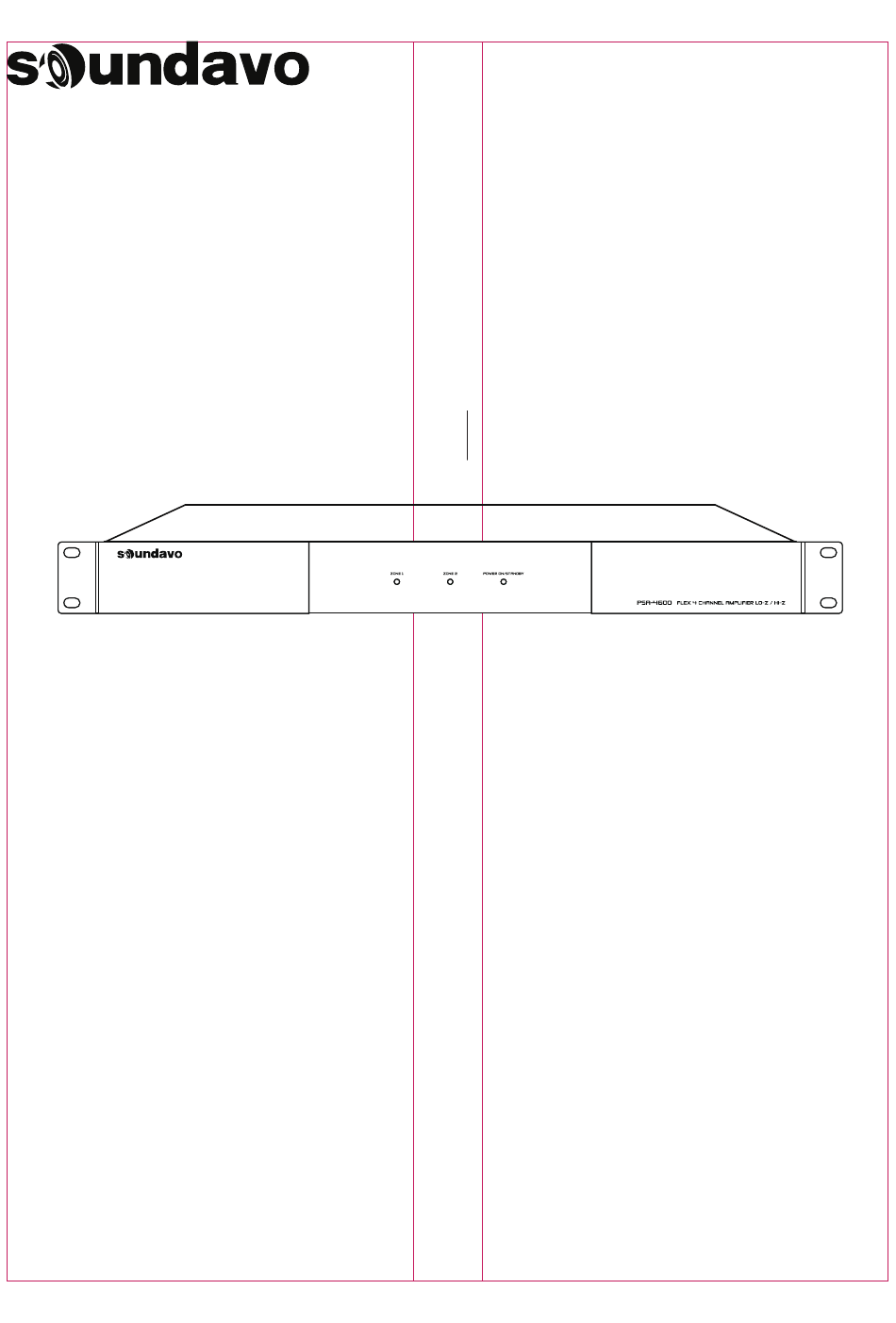

4 CHANNEL FLEXIBLE
AMPLIFIER LO-Z / HI-Z
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSA-4600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soundavo PSA-4600

  • Page 1 4 CHANNEL FLEXIBLE AMPLIFIER LO-Z / HI-Z PSA-4600 is a extremely flexible Direct Drive 4-channel digital amplifier designed with the highest technology in materials and construction to provide excellent performance and audio quality in your installation. With sufficient edibility to meet the demands in residential or corporate environments that can be used in 4Ω...
  • Page 3 10. POWER ON/OFF SWITCH: To Turn On (or Off) channel in either 4Ω or 8Ω is 150W RMS the PSA-4600 amplifier 6. HI-Z SPEAKER OUTPUT: Connect with 70V 11. AC INPUT: Accept 100 - 240 VAC, 50 - 60 Hz,...
  • Page 4 FEATURE * Full Single 19” Rack-Mount Design mode is active * 4 Channels Model – 150W RMS per * Terminal Block analog audio inputs (4 channel Channel input) * Stereo mode into 4-8 Ohm loads * Selection for Power-On mode * Bridged mode 300W x 2 output for 70V or * Switch for High Pass Filter 100V (Direct Drive)
  • Page 5 ER OUTPUT CONNE PSA-4600 AUDIO INPUT & SPEAK CTION APPLCATION EXAMPLE...
  • Page 6 SET UP YOUR LOUDSPEAKERS AND AMPLIFIER Stereo mode (4 Ω / 8 Ω) 1. Make sure the total, nominal impedance on each zone’s speaker output equals either 4 or 8 ohm and set the channel DIP switch to the appropriate 4 or 8 ohm setting.
