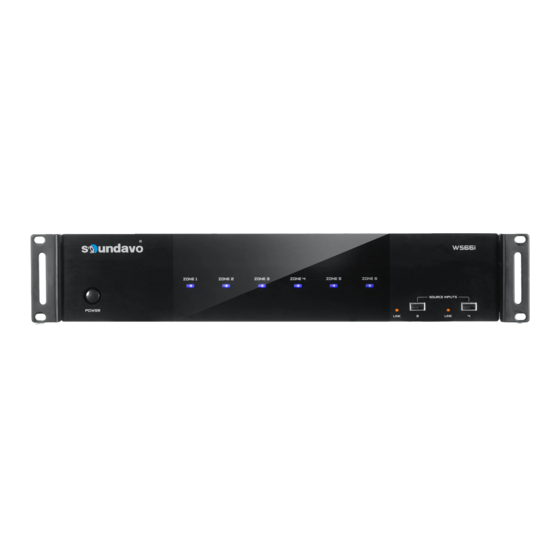

Soundavo WS66I Owner's Manual

6 source / 6 zone matrix amplifier with streamers
Hide thumbs Also See for WS66I:

Advertisement

Quick Links

Download this manual
WS66I
6 Source / 6 Zone
Matrix Amplifier with Streamers
Audio Distribution Network Controller
OWNERS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS66I and is the answer not in the manual?

Questions and answers

Related Manuals for Soundavo WS66I

Summary of Contents for Soundavo WS66I

  • Page 1 WS66I 6 Source / 6 Zone Matrix Amplifier with Streamers Audio Distribution Network Controller OWNERS MANUAL...
  • Page 3 18 zones which all can be controlled by APP, or option keypads & IR remote controller Simply connecting the WS66I to the local Ethernet network, it let you access a wide variety of music from the built-in WiFi streaming services or stored on the smartphone.

  • Page 4: Specification

    SPECIFICATION Output Power: 25W x 2 per zone (at 8 ) Output Power: 50W x 2 per zone (at 4 ) Output Power: 100W per zone (Bridged at 8 ) S/N: >85dB A WTD THD: <0.1% Frequency Response: 20Hz-20KHz Input Impedance: >47 K Ohm Input Sensitivity: 250 mV...

  • Page 5: Rear Panel

    1. Power ON/OFF/ STANDBY 2. Standby/Zone ON LED Depress the power button to turn These six LEDs illuminate to indicate the on the system. Press it again to status of each zone. release the latch and power the Blue: In Standby mode. White: In Activate unit off.
  • Page 6 12.ETHERNET/RS232 SWITCH Set the unit ID when connecting multi ETHERNET: When the amplifier connects to Controller systems Ethernet. 15.KEYPAD RS232: When the amplifier control by PC or RJ-45 jack Connects to the keypad hub Control Device via RS-232. for 6 keypads. 13.AGC 16.
  • Page 8 WS66I WS66I 3.5mm Stereo...
  • Page 9 4-8 Ohm. There are 9 two WS66I modes that can be set for different setups: Stereo or Bridge. An 8 Ohm speaker can only be used when in Bridge mode. To choose between modes,...
  • Page 10 (Optional) 6 POE enabled keypads (optional). This allows for WS66I can be controled via source control from each specific zone as well as IR routing to the appropriate source devices once selected. The also comes with WS66I optional hub that allows for all 6-keypads to be connected to the amp via Cat5e/6.
  • Page 11 FRONT BACK 12VDC out to trigger external amplifier WS66I...
  • Page 13 When being used with keypads, the can receive IR signals from each WS66I zone, and routed back through the Cat5e/6 and Keypad up to the Amplifier to control the selected source. For example, if Source 2-DVD is selected in Zone 1, the user will be able to control the DVD player to power the device on/o , change settings ect.
  • Page 14 Stereo Amplifier Powered Subwoofer MAP-1200HD Master SLAVE 1 SOURCE INPU PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT YES NO YES NO YES NO YES NO YES NO YES NO BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE 1 / PA SLAVE 2 ZONE 1...

  • Page 15: Ethernet Connection

    ETHERNET CONNECTION Network TV Router EXPANSION VOLTAGE SELECT Reset ETHERNET OUTPUT INPUT 115V 230V AC: 115V ~ 60Hz, 1250W FUSE: T10AL 250V AC: 230V-240V ~ 50Hz, 1250W FUSE: T5AL 250V RS232 SOURCE 3 EXT.MUTE KEYPADS SLAVE 1 CONTROL SOURCE 6 There are two RJ-45 jacks on the rear panel of this amplifier for the connection to YES / NO SLAVE 2...

  • Page 16: Connection Diagram

    CONNECTION DIAGRAM Stereo Amplifier Powered Subwoofer Network TV WS66I Router EXPANSION SOURCE INPUTS PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT PRE-AMP OUTPUT VOLTAGE SELECT Reset ETHERNET OUTPUT INPUT 115V 230V AC: 115V ~ 60Hz, 1250W FUSE: T10AL 250V...
  • Page 17 The Ethernet connection of the WS66I is used for configuration and program- ming as well as for enabling control via the WS66I control APP, and the “Sounda- vo Player” for the built-in streaming services and for playing any music stored on connected network.
  • Page 18 WS66i ” IP address. Please visit www.advanced-ip-scanner.com for free download. Then enter the IP address of WS66I to the IE browser (shown as below), ensure the Serial Configure is 9600,n,8,1. After finishing this step, WS66I could be controlled through the local Network.
  • Page 19 Download free software “PuTTY” Tool from the internet to control the device. Operation diagram as below:...
  • Page 20 Click Telnet, enter the IP address of and port: 8080. WS66I Click Open. When the IP address connected, the operation diagram shows as below: Key in the command code to control WS66I For the detail of command codes, please find the RS-232 command codes in this...
  • Page 21 RS232 CONTROL The WS66I provides an RS-232 serial port connection located on the back panel and uses a USB-to- Serial Comm cable connection. The WS66I supports bi- direc- tional RS-232 communication with third party automation systems. All keypad and remote control operations can be controlled via RS-232 in addition...
  • Page 22 Click Open. Note: To find the information for the COM port, please open the device manager of the computer, shown as below: When the IP address connected, the operation diagram shows as below: Key in the command code to control WS66I...
  • Page 23 WS66I RS-232 CONTROL CODES (Baud Rate: 9600,8,N,1 , DB9 Connector Pin out, Tx, Rx, GND) 'CR':Carriage Return (0x0D) Not case sensitive Control Command Structure <xxPPuu'CR' Reply Control Command Structure >xxPPuu'CR' xx: Represent control command code 10 :All zones of host computer 1...
  • Page 24 30 :All Zones of host computer 3 11 :Zone1 of host computer1 12 :Zone2 of host computer1 13 : Zone3 of host computer1 21 : Zone1 of host computer2 22 : Zone2 of host computer2 23 : Zone3 of host computer2 ....
  • Page 25 BL:Balance Control CH:Source Control LS: The connection status of line control Reply command: >xxPPuu'CR' Enter1<********'CR' Change Source 1 display name;********It must be 8 effective ASCII code Enter2<********'CR' Change Source 2 display name Enter 3<********'CR' Change Source 3 display name Enter 4<********'CR' Change Source 4 display name Enter 5<********'CR' Change Source 5 display name Enter 6<********'CR' Change Source 6 display name Enter M<********'CR' Change display name of connect control when it starts...
  • Page 26 EXAMPLES OF RS-232 COMMAND CODE All Zone ON <10PR01 Zone 1 ON <11PR01 All Zone OFF <10PR00 <21PR00 Salve 1 / Zone 1 OFF All Zone Mute ON <10MU01 <16MU01 Zone 6 Mute ON All Zone Mute OFF <10MU00 <35MU00 Salve 2 / Zone 5 Mute OFF All Zone Source 01 <10CH01...
  • Page 27 INQUIRY COMMAND STRUCTURE Symbol Zone Master、Salve 1、Salve 2 1、2、3 Inquiry Master All Zone Status Inquiry Slave1 All Zone Status Inquiry Slave2 All Zone Status REPLY COMMAND >xxaabbccddeeffgghhiijj xx: Unit / Zone >1100000000200707100100 aa: PA IN Status bb: Power Status cc: Mute Status dd: DT Status ee: Volume Status ff: Treble Status...
  • Page 28 APP QUICK START !"#$%"&' ()* +"$(,"% -../ 1. The WS66I control APP is available for Apple iPhone/iPad and Android smart phone/Pad 2. Please search “ WS66I ” on Google Play / App Store to download. 3. Download and install the APP...
  • Page 29 All zones will be synchronize and controlled from the specific zone. 10.Settings and Connection This connects the app to your network. Use this the first time you connect the WS66I or after the WS66I has been turned o /on 11. Music Streaming Press this music icon will link to connects the “Soundavo Player”...
  • Page 30 3. Device IP address When the IP is found, the APP will connect to the device automatically. 4. Manually Enter If WS66I device IP can’t be foundby the auto searching, manually enter the device IP to connect to the device. 5. MASTER/SLAVE Selection When the MASTER amplifier connecting with additional SLAVE1/SLAVE2 amplifiers,...
  • Page 31 DOWNLOAD THE "SOUNDAVO PLAYER" APP The "Soundavo Player” App is required to connect and control the WS66I Matrix Amplifier ’s Built-In Streamer (on Input source 3 and 4) with Wi-Fi, the “Sounda- vo Player” App is available for Apple iPhone/iPad and Android smart phone/Pad, can be dowloaded from the Google Play and Apple App Store 1.
  • Page 32 Connect the WS66I & "Soundavo Player” to Network Steps 1. Find a smartphone or tablet with the "Soundavo Player" application and connect it to the local Wi-Fi network (your smartphone or tablet device needs to be connected to the SAME WiFi network account as the WS66I matrix amplfier) 2.
  • Page 33 SOUNDAVO PLAYER APP OVERVIEW The "Soundavo Player” App has many unique audio features to allow a user to easily find the perfect audio and play on the WS66I Martix Amplfier. The "Soun- davo Player” App has three screens to operate audio.
  • Page 34 Swipe the screen to the right twice or click < symbol in the upper left corner on the Device List screen and the Dashboard will be displayed (see Figure 4 - “Soundavo Player” App Dashboard Screen) The Dashboard has audio apps that allow a user to search the internet for music, sports, news, podcasts and more.
  • Page 35 (OPTIONAL) TuneIn App Overview TuneIn is one of the audio apps on the “Soundavo Player” app Dashboard. TuneIn is the easiest audio app to find music from over 100,000 radio stations and more than 4,000,000 podcasts streaming from every continent, even Antarctica. There are radio stations covering music, sports, news and talk in various languages.
  • Page 36 App Overview iHeartRadio is one of the audio apps on the Soundavo Player app Dashboard. The app has over 1,500 radio stations or a user can create commercial-free and all-music custom stations featuring selected songs from a favorite artist. iHeartRadio has one of the best search functions that can look up specific songs, artists and albums compared to other audio apps on the Soundavo Player app Dashboard.
  • Page 37 A Premium Spotify account is required when using the WS66I connected to WiFi ® . However, a free Spotify account can be used when using the WS66i airplay Spotify Navgation When Connected to Wi-Fi Steps 1.

  • Page 38: Listening To Airplay Streaming

    When AirPlay is selected from iTunes or an iOS mobile device and music is sent to the WS66I, the WS66I will activate and select the internal streamer as the source. When the WS66I is...

  • Page 39: Troubleshooting

    TROUBLESHOOTING...
